[Guide] How To Retrofit MFSW And Cruise Control To T6 Eu6 2019 Startline - Also Hacking DSG Paddles For CCS

[huw169]

Awesome thread, have read it numerous times and decided to have a go so getting all my bits together to do this on my non cruise 2017 Shuttle.

The MFD controls are playing up on the stalk so figure I may as well jump in with the MFSW rather than changing the stalk.

Have ordered the wiring kit from Kufatec.

Just need the two additional repair wires as listed earlier in the thread:

Repair wire 1 - 000 979 009 E (T41 connector end). This shows up on eBay so OK there.

Repair wire 2 - 000 979 026 E (T10 connector ). Not obvious where to get this from. Can anyone advise best place to buy?

I'm new to the T6 and to car/van mods in general so I may be missing an obvious place to go to.

Also, pin removal tools, figure I probably need to pick some up. Any recommendations? Again I'm new to this so dont know if there's a wide range of types/sizes to choose from?

Thanks in advance, really looking forward to getting stuck in with this as my first mod. Hope I don't regret it!

eBay too.



[Scut]

Strange, couldn't find that last night, but there it is and now ordered thanks. Just a pin release tool to get and the actual MFSW!



[Scut]

Righto, I've picked up a MFSW on eBay which was advertised as removed from a T6 and came complete with airbag.

Worth paying a bit more I though as will be easier to fit as would save me needing to modify or replace my old airbag wiring loom.

Having received it however it seems to have only 4 wires in the black connector with the fifth having some kind of white blanking cable in it where the blue white cable would normally go.

Reading though the thread it sounds like this won't work? And probably isn't a T6 air bag loom?

If not then is there a straight forward way to modify my new airbag loom to work?

If not then I had already ordered the Kufatec kit so can modify my existing non MFSW airbag with that. Photo of new airbag and loom attached.



[AndyMo]

Hey guys great post! I can’t quite find the answer I’m looking for though, I’ve got a 16 plate T6 trendline that’s euro 5 with cruise control on the stalk. I really need a leather wheel for grip as I’ve got issues with my hands...

anyway multifunction wheel seems like an awesome idea but I’d like cruise control on the wheel too, I’ve been told it can’t be done on euro 5 models has anyone done it?



[Robert]

Of course it can be done.
There are 2 ways, patching Engine Control Unit or installation of aftermarket converting module(emulator).
@Evgeni is one good example.

https://www.t6forum.com/threads/van-wont-start-after-fitting-mfsw.18823/post-261672



[Scut]

Well, I decided to just use the Kufatec kit on my original air bag. Followed the instructions as per beginning of this thread.

All went fine really. Getting to the T10 connector by far the hardest part, actually thought about giving up at this point, quite intimidating trying to get to the bottom of that stack of connectors. Persevered based on the fact so many others had done it successfully. Credit to those that pioneered the procedure!

All buttoned back up today, sound deadened the scuttle while I was in there.

To my slight surprise everything worked perfectly, MFSW and cruise all fully functional .



[AndyMo]

Morning guys, got my new wheel delivered yesterday along with loom for the MFSW

I don’t have VCDS or the repair wires yet, if I just stick it on and plug it in will the horn and airbag still work as they should or should I use the original loom just now?

Am I right in thinking just to get the basic buttons to work (no cruise cause, I have that on the stalk euro5) I just need these 2 repair wires and coding?

Repair wire 1 - 000 979 009 E
Repair wire 2 - 000 979 026 E (T10 connector )



[dopeytree]

D'oh picked up a lovely wheel from a polo with all wiring & airbag... cant get the damn airbag to unlock to check the wiring out before fitting. Looks like one spring is sideways. Any tricks?



[Mark72]

Anyone know how to code in a mfsw using OBDeleven pro

it can redo coding but unsure how

any help would be great



[mmi]

Anyone know how to code in a mfsw using OBDeleven pro

it can redo coding but unsure how

any help would be great

[Connect].....
[Control Units]
[Central Electrics (09)]
[Long coding]
[Byte 09] - Tick bit 3 = "Multifunction steering wheel" - Installed



[Mark72]

[Connect].....
[Control Units]
[Central Electrics (09)]
[Long coding]
[Byte 09] - Tick bit 3 = "Multifunction steering wheel" - Installed
View attachment 128406

Thanks that’s a massive help very much appreciated



[Mattpl]

Hi, sorry just having trouble finding the t10 repair wire. 000 979 026E
Searched ebay, and googled the part number the kufatec part that came up when googled seemed to be the male pin is this the right part?
Sorry guys update.. removed the spaces and the part came up!? Lol



[Mark72]

Travelinlite sell the cables check under steering wheels on there web page comes up as mfsw harness but it’s just two cables with the correct terminals

I just fitted a Mfsw and used this works correctly



[Mocko1962]

Pauly maybe can make you wires with correct pins on … ask him



[Erik88]

Good evening, is it possible to mount the buttons on the steering wheel 5g0959442P instead of 7e0959442 icx? Does only the color of the light change?
Thank you



[T6_FunBus]

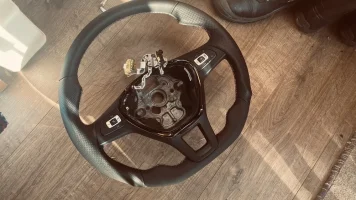

Greetings, had my new mfsw fitted today, it looks and feels great. Everything is working (phone button, stereo controls, menu / display controls) apart from unfortunately the ccs.

The wheel is the correct t6 button layout, red illumination with CNL.

Van is a 2.0 150 diesel startline, 2016 EU6 with stop start / adblue.

Wire has been added to ecu, and bcm as required with 12v power and the common coding has been done as per this thread.

VCDS shows all buttons on the CCS being recognised by the ECU.

There is no CCS icon in the display on dash when buttons are pressed, nor any error light on dash.

VCDS was showing implausible signal error and as a result CCS system is inactive.

Any help or advice appreciated on where to go from here.

Many thanks.



[mmi]

Greetings, had my new mfsw fitted today, it looks and feels great. Everything is working (phone button, stereo controls, menu / display controls) apart from unfortunately the ccs.

The wheel is the correct t6 button layout, red illumination with CNL.

Van is a 2.0 150 diesel startline, 2016 EU6 with stop start / adblue.

Wire has been added to ecu, and bcm as required with 12v power and the common coding has been done as per this thread.

VCDS shows all buttons on the CCS being recognised by the ECU.

There is no CCS icon in the display on dash when buttons are pressed, nor any error light on dash.

VCDS was showing implausible signal error and as a result CCS system is inactive.

Any help or advice appreciated on where to go from here.

Many thanks.

Please post full VCDS Auto-Scan.



[T6_FunBus]

Hi, please see below:

------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 03 04 08 09 15 17 19 25 5F 61 0B

VIN: WV1ZZZ7HZHX007999   Mileage: 219450km-136359miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KL    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 6166
   Revision: 23002001
   Coding: 00194014432401090000
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KL 004012
   ROD: EV_ECM20TDI03004L906056KA.rod
   VCID: 015F810D418C98C3A8F-8054
   VINID: 9E606AAAA1D8A98A00007249243C631746

2 Faults Found:
25109 - Databus
          U1123 00 [039] - Received Error Message
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 3
                    Mileage: 219457 km
                    Date: 2057.01.31
                    Time: 17:35:57

                    Engine RPM: 2764.50 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 41 km/h
                    Coolant temperature: 74 °C
                    Intake air temperature: 6 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 14.648 V
                    Unlearning counter according OBD: 40
                    Acceleration: -0.375 m/s²
                    Vehicle speed: 41 km/h
                    Cruise Control System (CCS): status: Malfunction
                    Status irriversible shutoff condition cruise control and limiter-Status: 0
                    Cruise control system: temporary deactivation: No switch-off
                    Accelerator pedal travel: raw value: 0.00 %
                    Cruise control switch actuation-Engaged OFF: No
                    Cruise control switch actuation-Tap delay: No
                    Cruise control switch actuation-Tap acceleration: No
                    Cruise control switch actuation-Set: No
                    Cruise control switch actuation-Resume: No
                    Cruise control switch actuation-Plausibility check of main switch: No
                    Cruise control switch actuation-Tip acceleration/deceleration second level: No
                    Cruise control switch actuation-Operating error: No
                    Cruise control switch actuation-Hardware signal main switch: Yes
                    Cruise control switch actuation-Operating lever: Implausible coding: No
                    Cruise control switch actuation-Limiter button pressed: No
                    Cruise control switch actuation-Main switch off via CAN: No
                    Cruise control switch actuation-variance adapted successfully: No

25110 - Cruise Control Switch (E45)
          P0568 00 [039] - Implausible Signal
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 219457 km
                    Date: 2057.01.31
                    Time: 17:35:58

                    Engine RPM: 1954.50 /min
                    Normed load value: 60.8 %
                    Vehicle speed: 41 km/h
                    Coolant temperature: 75 °C
                    Intake air temperature: 6 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 14.625 V
                    Unlearning counter according OBD: 40
                    Acceleration: 0.773 m/s²
                    Vehicle speed: 41 km/h
                    Cruise Control System (CCS): status: Malfunction
                    Status irriversible shutoff condition cruise control and limiter-Status: 1
                    Cruise control system: temporary deactivation: No switch-off
                    Accelerator pedal travel: raw value: 44.87 %
                    Cruise control switch actuation-Engaged OFF: No
                    Cruise control switch actuation-Tap delay: No
                    Cruise control switch actuation-Tap acceleration: No
                    Cruise control switch actuation-Set: No
                    Cruise control switch actuation-Resume: No
                    Cruise control switch actuation-Plausibility check of main switch: No
                    Cruise control switch actuation-Tip acceleration/deceleration second level: No
                    Cruise control switch actuation-Operating error: No
                    Cruise control switch actuation-Hardware signal main switch: Yes
                    Cruise control switch actuation-Operating lever: Implausible coding: No
                    Cruise control switch actuation-Limiter button pressed: No
                    Cruise control switch actuation-Main switch off via CAN: No
                    Cruise control switch actuation-variance adapted successfully: No

Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 42146000002479
   Coding: 517E4098256284858A7E027FA48B21E6790000
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3FDB47F577F82E339EB-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 30071613470491
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5FAF13072E73BD5D-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AK    HW: 7E0 907 047 AK
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 73B3DBC50B30BA53AA3-8026

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 215160506
   Coding: E0AC393A0A212011002809742C2B8C540F84710F60464D60320400230840
   Shop #: WSC 35110 377 08192
   VCID: 2A0D06A19CFABB9BD95-807E

   Subsystem 1 - Part No SW: 7E0 959 801 P    HW: 7E0 959 801 P  Labels: 7E0-959-80X-V2.CLB
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU004081662176139
   Coding: 1400B0

   Subsystem 2 - Part No SW: 7E0 959 802 P    HW: 7E0 959 802 P  Labels: 7E0-959-80X-V2.CLB
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU005081662184819
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 442     HW: 7E0 959 442   Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 29150002354440015492
   Coding: B0FFFF

1 Fault Found:
00671 - Cruise Control Switch (E45)
            014 - Defective
             Freeze Frame:
                    Fault Status: 01101110
                    Fault Priority: 2
                    Fault Frequency: 14
                    Reset counter: 246
                    Mileage: 219457 km
                    Time Indication: 0
                    Date: 2021.12.19
                    Time: 17:35:54


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 G    HW: 7E0 959 655 G
   Component: VW10Airbag01T H08 0018
   Revision: --------    Serial number: 003V3001K97V
   Coding: 000000000000000000000000000000003154
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3A2D36E16CDA0B1BA95-806E

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 960 S    HW: 7E0 920 960 S
   Component: KOMBI         H03 1104
   Serial number: 00000000000000
   Coding: 450B010300
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 392F29ED69DC0003A0F-806C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H81 0744
   Revision: B9081001
   Coding: 042305
   Shop #: WSC 35110 377 08192
   VCID: 6889BCA94276498B0F1-803C

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 1104
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8DC6A15CFA7B9B195-803E

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-ENT2.clb
   Part No SW: 1K8 035 150 L    HW: 1K8 035 150 L
   Component: MU-E-D-ER     055 7067
   Serial number: 07071600010409
   Coding: 065700003C00000041111101008000001F0000C60000010001
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_MUEnt4CGen2LGE 001032
   ROD: EV_MUEnt4CGen2LGE_VW32.rod
   VCID: 2E050AB1A092D7BB05D-807A

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H81 0744
   Serial number: 0982 215160506
   Coding: 330B1A73
   Shop #: WSC 35110 377 08192
   VCID: 6889BCA94276498B0F1-803C

   Subsystem 1 - Part No SW: 7E0 915 181 K    HW: 7E0 915 181 K
   Component: J367-BDMConti  H03 1050
   Serial number: 75410903001607233511

No fault code found.

End----------(Elapsed Time: 01:12, VBatt start/end: 12.2V/12.2V)-----------

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------



[mmi]

Hi, please see below:

Just to clarify - there is no stalk with CCS switches?



[T6_FunBus]

Correct, no cruise stalks, just new mfsw with Part no.7E0959442 buttons, wired to ecu and bcm.

Odd thing is, nothing cruise related shows at all in cluster.

Thanks.
