T6.1 LED sequential - REAR LIGHTS UPGRADE (Barn Doors) -- How I Done It --

[MatthewB]

Hi pal it only comes on when I put it in reverse saying I’ve a bulb out but they’re all on! I got the led smoked ones from THQ!



[MatthewB]

These

View attachment 186072

View attachment 186073

are the resistors



[Dellmassive]

reverse light is the Green/black wire;

fed from the BCM as an output,

the gearbox reverse switch is an input to the BCM,


++++

T6 - Halogen Rear Lights Wiring Diagram

Rear Lights Circuit Diagram Halogen tail lights VIP Membership is required to download this document

www.t6forum.com

+++++



[Dellmassive]

can you post a better pic of this document. . .


it looks like they are saying you need to add TWO of the green resistor packs.



[MatthewB]

So the black and green wire on the resistor needs attaching to the green and black at the back of the light cluster?

Apologies for the dumb question!



[Dellmassive]

looks like they are saying add in an extra ONE or BOTH the green resistor packs,

using those RED splice connectors?

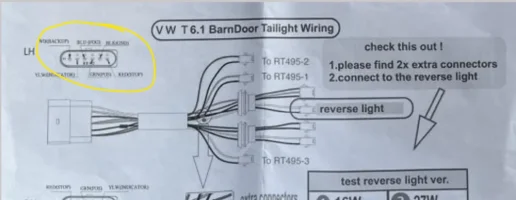

[MatthewB]

can you post a better pic of this document. . .


it looks like they are saying you need to add TWO of the green resistor packs.



View attachment 186076



[Dellmassive]

yes,

so its showing that you add in the two extra connector fly leads, and use the red splice connectors,

then plug in the extras. . . .

i think they are saying for you to check what version resistor you have already. . .

so you add in one extra each side,

or did they send you 4 green resistor packs? - in that case its two on each side.

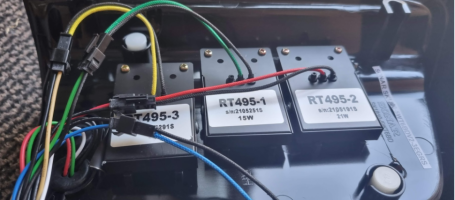

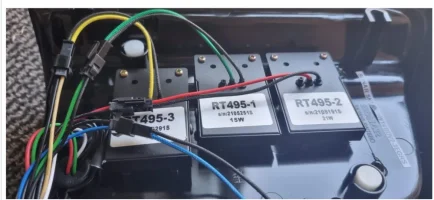

[Dellmassive]

FWIW . . .
mine come with

1x GREEN - 15W (RT495-1) on each side



[MatthewB]

FWIW . . .
mine come with

1x GREEN - 15W (RT495-1) on each side


View attachment 186078

I see so I’m swapping a resistor on back of light cluster for the new one they sent!!

Just sent one for each side!



[Dellmassive]

got a better pic of this bit?



[Pedro20001]

The only thing I find is the reversing lights are pretty useless, guess that's fashion over function



[Dellmassive]

you could try swapping . . . and testing

but the document is showing that you are ADDING the new two (in parallel with the existing two)



[MatthewB]

got a better pic of this bit?

View attachment 186079



[Dellmassive]

this shows the standard pin layout for the T6 (my18) drivers side, which has ALL 6 pins . . . (because drivers side has FOG light, passenger side has NO FOG light)

Drivers side:
1 - grey/white (fog light)
2 - green/black (reverse)
3 - grey/red (tail light)
4 - brown (earth)
5 - black/green (indicator)
6 - black/red (brake)


************************************************************************************************




and


Passenger side 5 pins :
1 - nc (green bung)
2 - green/black (reverse)
3 - grey/red (tail light)
4 - brown (earth)
5 - black/green (indicator)
6 - black/red (brake)


******************************************************************************






++++++++++++++


that diagram is different . . . thats for the 6pin T6.1 Halogen lights by the looks of it.






+++++++++++

T6.1 - Tail Light Clusters (Halogen) Wiring Diagram

Wiring diagram for standard rear lights on vehicles with tailgate or barn doors VIP Membership is required to download this document

www.t6forum.com

+++++++++++




what is your van? a T6 or a T6.1?



[MatthewB]

It’s the 6.1 2021!



[Dellmassive]

my lights had this:




+++++++++++++++++
this shows the standard pin layout for the T6 (my18) drivers side, which has ALL 6 pins . . . (because drivers side has FOG light, passenger side has NO FOG light)

Drivers side:
1 - grey/white (fog light) - Blue resistor pack?
2 - green/black (reverse) - white wire?
3 - grey/red (tail light) - green resistor pack
4 - brown (earth) - black wire
5 - black/green (indicator) - Yellow resistor pack
6 - black/red (brake) - RED resistor pack
+++++++++++++++++++++++++++



so on this light the WHITE wire does reverse? and has no resistor pack.


.



[Dellmassive]

It’s the 6.1 2021!

thats why then . . .

the T6.1 has different wires to the T6,

the sheet is showing you how to add a resistor pack to the reverse line.

your plugs will be different, and the packs will be different. ( than my T6 version)

my set are for a T6.

maybe you can post a few close up pics of your lights and connectors when you take them off?



[MatthewB]

thats why then . . .

the T6.1 has different wires to the T6,

the sheet is showing you how to add a resistor pack to the reverse line.

your plugs will be different, and the packs will be different. ( than my T6 version)

my set are for a T6.

maybe you can post a few close up pics of your lights and connectors when you take them off?

Will do.



[MatthewB]

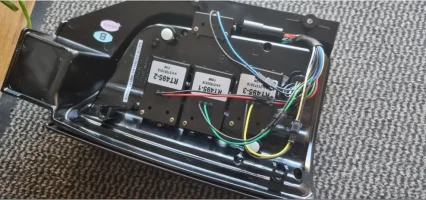

These are the backs of mine!
