Too Many Obdii Faults For My Liking!

Discussion in 'VCDS-VagCom / Carista / ODBEleven' started by BrianK, 19 Nov 2019.

  1. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map
    It's an either / or, one is easier than the other but not as neat.

  2. BrianK

    BrianK Member T6 Pro

    Map
    Ah understood

    Many thanks. Have a good one.

  3. BrianK

    BrianK Member T6 Pro

    Map
    Hello Grim Reaper

    Happy New Year to you

    I have a little to time for a change to do some of the van and currently trying to get my ignition live in. Got to the stage where I have the top set of fuses out of the holder from the rear (not easy) and in my hand. Where you say 'then remove the purple plastic combs that lock the wires that are already in place' do you mean you removed the entire purple/mauve back part which slots into the black part? Because a) Although there is a press part on each corner it doesn't look like it will come out easily b) I'm afraid every wire in the entire block will come lose! I presume the JPT terminals not be pushed through both parts at the same time?

    Going to try and get a pic of it in a moment

    Thanks

    EDIT: Please see pics attached. Is the part with there arrow pointing at it in pic 2 anything to do with getting it apart?
    And while I'm at it have you ever managed to removed the entire panel as shown in pic 3?

    1.jpeg 2.jpeg 3.jpeg

    Last edited: 1 Jan 2020
  4. BrianK

    BrianK Member T6 Pro

    Map
    Sorry grim Reaper thought of another question, although I presume an easier one this time.

    When using the JPT terminals do you place the live taken from a wire at the back to the right or left of the fuse box?

  5. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map
    My fusebox under the gear lever has a red lock tab in it and the bottom (?) end.
    Look at 15min mark on this video for something similar.

    Pulling the comb out releases the lock on the wires already in place and allows you to add more connections to empty spaces.
    Just remember to refit the comb to lock everything in place before refitting the fuse box (DAMHIK)
    Looking at the back side of the fuse box, you will see large gauge wires feeding a copper common plate down one side of a row of fuses, this is the feed side, some will be permanently live, some will be switched live, you just need to work out which is which with a multimeter. To add a fuse you just need to add a connection to the empty side of the fuse row to add am output from the fuse box and install a fuse to connect the live side to the accessory side.

  6. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map
  7. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map
    The JPT terminals have ears on them that click the terminal into place so it won't fall out, the comb/retainer just ensures that they CAN'T come out.

  8. BrianK

    BrianK Member T6 Pro

    Map
    Grim reaper,

    Thanks for trying to help. I'm now wondering if you have a T6! Mine (T5 2014) is nothing like this (see pic) and I have had to thread the purple/pink part right back
    up the wires to access where the pins go into the back of the black part. I have managed to get my pins with wires connected into the slots :mad: Now just have to find a way of seperating the bunch of wires enough to solder to the ignition live I have found.


  9. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map

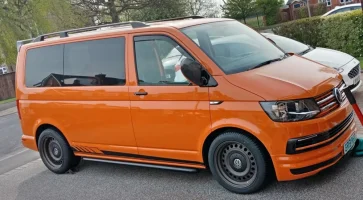

    Well, this IS a T6 forum...
    GR13RPR ExteriorFront.jpg

  10. BrianK

    BrianK Member T6 Pro

    Map
    Good point :oops:

  11. BrianK

    BrianK Member T6 Pro

    Map
    Hello,

    Having lost my driveway space for carrying on with my leisure battery installation for the foreseeable I thought I would have a go with my new VCDS and see how I get on. I have pasted my results below. I tried clearing these by licking on Clear all DTC on the left but have since read this doesn't work so then tried clearing them individually but they still seem to come back!

    Things which may be worth mentioning:
    a) The passenger seat isn't currently fitted
    b) I never registered my new battery before (the old OBD11 unit wouldn't do it) and I'm not sure how with VCDS yet!

    I hope this is OK just pasted here, please let me know if there is a better way.

    Thanks in advance for any help that can be offered.
    Code:
    ............................
    Tuesday,07,January,2020,17:54:08:35225
    VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
    VCDS Version: 19.6.2.0 (x64)  HEX-V2 CB: 0.4508.4
    Data version: 20190930 DS308.0
    www.Ross-Tech.com
    Mileage: 130410km-81033mi   Repair Order:
    Chassis Type: 7H-VN75 (6N0)
    Scan: 01 03 04 08 09 10 15 17 19 25 56 61 77 0B

    01-Engine -- Status: Malfunction 0010
    03-ABS Brakes -- Status: OK 0000
    04-Steering Angle -- Status: OK 0000
    08-Auto HVAC -- Status: OK 0000
    09-Cent. Elect. -- Status: OK 0000
    10-Park/Steer Assist -- Status: OK 0000
    15-Airbags -- Status: OK 0000
    17-Instruments -- Status: OK 0000
    19-CAN Gateway -- Status: OK 0000
    25-Immobilizer -- Status: OK 0000
    56-Radio -- Status: OK 0000
    61-Battery Regul. -- Status: Malfunction 0010
    77-Telephone -- Status: OK 0000
    -------------------------------------------------------------------------------
    Address 01: Engine (J623-CAAC)       Labels:. 03L-906-022-CAA.clb
       Part No SW: 03L 906 019 GQ    HW: 03L 907 309 L
       Component: R4 2,0L EDC   H38 8440
       Revision: 22H38---    Serial number: 00000000000000
       Coding: 01194012232401080000
       Shop #: WSC 00215 210 00000
       ASAM Dataset: EV_ECM20TDI01103L906019GQ 003006
       ROD: EV_ECM20TDI01103L906019FH_003.rod
       VCID: 005987507A8B9A97C97-8054

    1 Fault Found:
    7144 - Please Check DTC Memory in CAN Gateway (J533)
              U1008 00 [039] - -
              [Diagnostic interface for data busRead out DTC]
              Not Confirmed - Tested Since Memory Clear
                 Freeze Frame:
                        Fault Status: 00000001
                        Fault Priority: 2
                        Fault Frequency: 1
                        Mileage: 130415 km
                        Date: 2020.01.07
                        Time: 00:23:43

                        Engine speed: 857.50 /min
                        Normed load value: 18.0 %
                        Vehicle speed: 0 km/h
                        Coolant temperature: 88 ∞C
                        Intake air temperature: 37 ∞C
                        Ambient air pressure: 1000 mbar
                        Voltage terminal 30: 14.140 V
                        Unlearning counter according OBD: 40
                        ACC target acceleration: 0.000 m/s≤
                        ACC control module received status-Bits 0-7: 6
                        Active brake system error status-Bits 0-7: 0
                        Status of ACC/CCS acceleration interface-Bits 0-7: 0
                        Acceleration: 0.000 m/s≤
                        Engine status: COENG_RUNNING
                        Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 3

    Readiness: 0 0 0 0 1
    -------------------------------------------------------------------------------
    Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
       Part No SW: 7E0 907 379 L    HW: 7E0 907 379 L
       Component: ESP MK25A XT  H50 0113
       Revision: 00H50001
       Coding: 108724AD09A8089D24A69076BA6592
       Shop #: WSC 02757 790 49152
       VCID: 3B2330BC536D394FDC5-806E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
       Part No SW: 6R0 959 654     HW: 6R0 959 654
       Component: LENKW.SENSOR  H07 0070
       Serial number: 04091404651402
       Coding: 01
       Shop #: WSC 00000 000 00000
       ASAM Dataset: EV_LWSKLOVW25X 005001
       ROD: EV_LWSKLOVW25X.rod
       VCID: 7EA5F9A8007FEC67BBB-802A

    No fault code found.
    -------------------------------------------------------------------------------
    Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
       Part No SW: 7E5 907 047 BM    HW: 7E5 907 047 BM
       Component: Climatic-T5   H20 0506
       Revision: 00001012
       Coding: 0000000003
       Shop #: WSC 02757 790 50316
       ASAM Dataset: EV_ClimaticT5 A01003
       ROD: EV_ClimaT5Basis.rod
       VCID: 7BA3F0BC136DF94F9C5-802E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
       Part No SW: 7H0 937 090 D    HW: 7H0 937 090
       Component: BCM PQ25 Max4 H75 0725
       Revision: B9075001    Serial number: 0671 260142655
       Coding: A0F4793A0A613411922849706C2B8CD40780612F7E844C40320000020800
       Shop #: WSC 02739 790 00000
       VCID: 2F3B14EC9715D5EF60D-807A

       Subsystem 1 - Part No SW: 7E0 959 801 L    HW: 7E0 959 801 L  Labels: 7E0-959-80X-V2.CLB
       Component: J386__TSG_FT  003 8653
       Serial number: KU0KU005091442484985
       Coding: 1400B1

       Subsystem 2 - Part No SW: 7E0 959 802 L    HW: 7E0 959 802 L  Labels: 7E0-959-80X-V2.CLB
       Component: J387__TSG_BT  003 8653
       Serial number: KU0KU010091442536913
       Coding: 0400A1

       Subsystem 3 - Part No: 7E1 951 172
       Component: DWA-Sensor 00  001 0104
       Coding: 000000

       Subsystem 4 - Part No: 1K0 951 605 C
       Component: LIN BACKUP HO  H05 1501
       Coding: 000000

       Subsystem 5 - Part No: 7E1 951 172
       Component: DWA-Sensor 00  001 0104
       Coding: 000000

    No fault code found.
    -------------------------------------------------------------------------------
    Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
       Part No SW: 7E0 919 475 K    HW: 1Q0 919 475
       Component: PARKHILFE 4K  H03 0106
       Revision: --------    Serial number: 32901421004149
       Coding: 108001
       Shop #: WSC 02739 790 50316
       ASAM Dataset: EV_VW75XParkAssis4K 001004
       ROD: EV_VW75XParkAssis4K_001.rod
       VCID: 3A2D35B85CD70047C73-806E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
       Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
       Component: VW10Airbag009 H07 0013
       Revision: --------    Serial number: 003HL00SJXD5
       Coding: 000000000000000000000000000000003039
       Shop #: WSC 02754 790 50316
       ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
       ROD: EV_AirbaVW10BPAVN750_VW12.rod
       VCID: 3537268475C9EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
       Part No SW: 7E0 920 970 N    HW: 7E0 920 970 N
       Component: KOMBI         H03 0805
       Serial number: 00000000000000
       Coding: 460A01
       Shop #: WSC 02737 790 50316
       ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
       ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
       VCID: 3537268475C9EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
       Part No SW: 6N0 909 901     HW: 7H0 937 090
       Component: GW-K-CAN TP20 H75 0725
       Revision: B9075001
       Coding: 042300
       Shop #: WSC 02739 790 00000
       VCID: 70B9D7904AAB8A17397-8024

    No fault code found.
    -------------------------------------------------------------------------------
    Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
       Part No SW: 5K0 953 234     HW: 5K0 953 234
       Component: IMMO          H03 0805
       Serial number:
       Coding: 000000
       Shop #: WSC 00000 000 00000
       ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
       ROD: EV_Immo_UDS_VDD_RM09.rod
       VCID: 6A8DC5F86CF770C7773-803E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
       Part No SW: 5M0 035 186 L    HW: 5M0 035 186 L
       Component: Radio RCD310  006 0119
       Revision: 01000001    Serial number: VWZ1Z2P0270714
       Coding: 05000200020014
       Shop #: WSC 02754 790 00000
       VCID: 353726847549EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
       Part No SW: 7H0 907 534     HW: 7H0 937 090
       Component: Batt.regelung H75 0725
       Serial number: 0671 260142655
       Coding: 030B7A73
       Shop #: WSC 09999 999 999999
       VCID: 6B83C0FC638D69CF0C5-803E

       Subsystem 1 - Part No SW: 7E0 915 181 B    HW: 7E0 915 181 B
       Component: J367-BDM  H08 0181
       Serial number: 51232248082221647581

    1 Fault Found:
    02252 - Generator
                004 - No Signal/Communication
                 Freeze Frame:
                        Fault Status: 01100100
                        Fault Priority: 2
                        Fault Frequency: 1
                        Reset counter: 199
                        Mileage: 130415 km
                        Time Indication: 0
                        Date: 2020.01.07
                        Time: 00:23:40
    -------------------------------------------------------------------------------
    Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
       Part No SW: 7P6 035 730 M    HW: 7P6 035 730 M
       Component: TELEFON       H16 4217
       Revision: 1B001001    Serial number: 00007666625462
       Coding: 0A01010000010101
       Shop #: WSC 02757 790 50316
       ASAM Dataset: EV_UHVNA 002720
       ROD: EV_UHVNA_002.rod
       VCID: 3C2133A056E33E77D5F-8068

    No fault code found.

    End----------(Elapsed Time: 01:39, VBatt start/end: 14.3V/14.2V)-----------
    --------------------------------------------------------------------------------
    --------------------------------------------------------------------------------
    Gateway Installation List:  6N0 909 901

    01-Engine -- Status: OK 0000
    03-ABS Brakes -- Status: OK 0000
    04-Steering Angle -- Status: OK 0000
    08-Auto HVAC -- Status: OK 0000
    09-Cent. Elect. -- Status: OK 0000
    10-Park/Steer Assist -- Status: OK 0000
    15-Airbags -- Status: OK 0000
    17-Instruments -- Status: OK 0000
    19-CAN Gateway -- Status: OK 0000
    25-Immobilizer -- Status: OK 0000
    56-Radio -- Status: OK 0000
    61-Battery Regul. -- Status: OK 0000
    77-Telephone -- Status: OK 0000
    --------------------------------------------------------------------------------
    --------------------------------------------------------------------------------
    Chassis Type: 7H-VN75 (6N0)
    Scan: 01 03 04 08 09 10 15 17 19 25 56 61 77 0B

     Mileage: 130410km-81033miles

    01-Engine -- Status: Malfunction 0010
    03-ABS Brakes -- Status: OK 0000
    04-Steering Angle -- Status: OK 0000
    08-Auto HVAC -- Status: OK 0000
    09-Cent. Elect. -- Status: OK 0000
    10-Park/Steer Assist -- Status: OK 0000
    15-Airbags -- Status: OK 0000
    17-Instruments -- Status: OK 0000
    19-CAN Gateway -- Status: OK 0000
    25-Immobilizer -- Status: OK 0000
    56-Radio -- Status: OK 0000
    61-Battery Regul. -- Status: Malfunction 0010
    77-Telephone -- Status: OK 0000
    -------------------------------------------------------------------------------
    Address 01: Engine (J623-CAAC)       Labels:. 03L-906-022-CAA.clb
       Part No SW: 03L 906 019 GQ    HW: 03L 907 309 L
       Component: R4 2,0L EDC   H38 8440
       Revision: 22H38---    Serial number: 00000000000000
       Coding: 01194012232401080000
       Shop #: WSC 00215 210 00000
       ASAM Dataset: EV_ECM20TDI01103L906019GQ 003006
       ROD: EV_ECM20TDI01103L906019FH_003.rod
       VCID: 005987507A8B9A97C97-8054

    1 Fault Found:
    7144 - Please Check DTC Memory in CAN Gateway (J533)
              U1008 00 [039] - -
              [Diagnostic interface for data busRead out DTC]
              Not Confirmed - Tested Since Memory Clear
                 Freeze Frame:
                        Fault Status: 00000001
                        Fault Priority: 2
                        Fault Frequency: 1
                        Mileage: 130415 km
                        Date: 2020.01.07
                        Time: 00:31:27

                        Engine speed: 860.50 /min
                        Normed load value: 36.9 %
                        Vehicle speed: 0 km/h
                        Coolant temperature: 88 ∞C
                        Intake air temperature: 38 ∞C
                        Ambient air pressure: 1000 mbar
                        Voltage terminal 30: 14.140 V
                        Unlearning counter according OBD: 40
                        ACC target acceleration: 0.000 m/s≤
                        ACC control module received status-Bits 0-7: 6
                        Active brake system error status-Bits 0-7: 0
                        Status of ACC/CCS acceleration interface-Bits 0-7: 0
                        Acceleration: 0.000 m/s≤
                        Engine status: COENG_RUNNING
                        Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 3

    Readiness: 0 0 0 0 1
    -------------------------------------------------------------------------------
    Address 03: ABS Brakes (-----)       Labels: 7E0-907-37x-MK25AXT.clb
       Part No SW: 7E0 907 379 L    HW: 7E0 907 379 L
       Component: ESP MK25A XT  H50 0113
       Revision: 00H50001
       Coding: 108724AD09A8089D24A69076BA6592
       Shop #: WSC 02757 790 49152
       VCID: 3B2330BC536D394FDC5-806E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
       Part No SW: 6R0 959 654     HW: 6R0 959 654
       Component: LENKW.SENSOR  H07 0070
       Serial number: 04091404651402
       Coding: 01
       Shop #: WSC 00000 000 00000
       ASAM Dataset: EV_LWSKLOVW25X 005001
       ROD: EV_LWSKLOVW25X.rod
       VCID: 7EA5F9A8007FEC67BBB-802A

    No fault code found.
    -------------------------------------------------------------------------------
    Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
       Part No SW: 7E5 907 047 BM    HW: 7E5 907 047 BM
       Component: Climatic-T5   H20 0506
       Revision: 00001012
       Coding: 0000000003
       Shop #: WSC 02757 790 50316
       ASAM Dataset: EV_ClimaticT5 A01003
       ROD: EV_ClimaT5Basis.rod
       VCID: 7BA3F0BC136DF94F9C5-802E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 09: Cent. Elect. (J519)       Labels:. 7H0-937-08x-09.clb
       Part No SW: 7H0 937 090 D    HW: 7H0 937 090
       Component: BCM PQ25 Max4 H75 0725
       Revision: B9075001    Serial number: 0671 260142655
       Coding: A0F4793A0A613411922849706C2B8CD40780612F7E844C40320000020800
       Shop #: WSC 02739 790 00000
       VCID: 2F3B14EC9715D5EF60D-807A

       Subsystem 1 - Part No SW: 7E0 959 801 L    HW: 7E0 959 801 L  Labels: 7E0-959-80X-V2.CLB
       Component: J386__TSG_FT  003 8653
       Serial number: KU0KU005091442484985
       Coding: 1400B1

       Subsystem 2 - Part No SW: 7E0 959 802 L    HW: 7E0 959 802 L  Labels: 7E0-959-80X-V2.CLB
       Component: J387__TSG_BT  003 8653
       Serial number: KU0KU010091442536913
       Coding: 0400A1

       Subsystem 3 - Part No: 7E1 951 172
       Component: DWA-Sensor 00  001 0104
       Coding: 000000

       Subsystem 4 - Part No: 1K0 951 605 C
       Component: LIN BACKUP HO  H05 1501
       Coding: 000000

       Subsystem 5 - Part No: 7E1 951 172
       Component: DWA-Sensor 00  001 0104
       Coding: 000000

    No fault code found.
    -------------------------------------------------------------------------------
    Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
       Part No SW: 7E0 919 475 K    HW: 1Q0 919 475
       Component: PARKHILFE 4K  H03 0106
       Revision: --------    Serial number: 32901421004149
       Coding: 108001
       Shop #: WSC 02739 790 50316
       ASAM Dataset: EV_VW75XParkAssis4K 001004
       ROD: EV_VW75XParkAssis4K_001.rod
       VCID: 3A2D35B85CD70047C73-806E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
       Part No SW: 7E0 959 655 B    HW: 7E0 959 655 B
       Component: VW10Airbag009 H07 0013
       Revision: --------    Serial number: 003HL00SJXD5
       Coding: 000000000000000000000000000000003039
       Shop #: WSC 02754 790 50316
       ASAM Dataset: EV_AirbaVW10BPAVN750 A01026
       ROD: EV_AirbaVW10BPAVN750_VW12.rod
       VCID: 3537268475C9EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
       Part No SW: 7E0 920 970 N    HW: 7E0 920 970 N
       Component: KOMBI         H03 0805
       Serial number: 00000000000000
       Coding: 460A01
       Shop #: WSC 02737 790 50316
       ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
       ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod
       VCID: 3537268475C9EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 19: CAN Gateway (J533)       Labels:. 6N0-909-901-6R.clb
       Part No SW: 6N0 909 901     HW: 7H0 937 090
       Component: GW-K-CAN TP20 H75 0725
       Revision: B9075001
       Coding: 042300
       Shop #: WSC 02739 790 00000
       VCID: 70B9D7904AAB8A17397-8024

    No fault code found.
    -------------------------------------------------------------------------------
    Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
       Part No SW: 5K0 953 234     HW: 5K0 953 234
       Component: IMMO          H03 0805
       Serial number:
       Coding: 000000
       Shop #: WSC 00000 000 00000
       ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
       ROD: EV_Immo_UDS_VDD_RM09.rod
       VCID: 6A8DC5F86CF770C7773-803E

    No fault code found.
    -------------------------------------------------------------------------------
    Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
       Part No SW: 5M0 035 186 L    HW: 5M0 035 186 L
       Component: Radio RCD310  006 0119
       Revision: 01000001    Serial number: VWZ1Z2P0270714
       Coding: 05000200020014
       Shop #: WSC 02754 790 00000
       VCID: 353726847549EF3F2A1-8060

    No fault code found.
    -------------------------------------------------------------------------------
    Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
       Part No SW: 7H0 907 534     HW: 7H0 937 090
       Component: Batt.regelung H75 0725
       Serial number: 0671 260142655
       Coding: 030B7A73
       Shop #: WSC 09999 999 999999
       VCID: 6B83C0FC638D69CF0C5-803E

       Subsystem 1 - Part No SW: 7E0 915 181 B    HW: 7E0 915 181 B
       Component: J367-BDM  H08 0181
       Serial number: 51232248082221647581

    1 Fault Found:
    02252 - Generator
                004 - No Signal/Communication
                 Freeze Frame:
                        Fault Status: 01100100
                        Fault Priority: 2
                        Fault Frequency: 1
                        Reset counter: 199
                        Mileage: 130415 km
                        Time Indication: 0
                        Date: 2020.01.07
                        Time: 00:30:31
    -------------------------------------------------------------------------------
    Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
       Part No SW: 7P6 035 730 M    HW: 7P6 035 730 M
       Component: TELEFON       H16 4217
       Revision: 1B001001    Serial number: 00007666625462
       Coding: 0A01010000010101
       Shop #: WSC 02757 790 50316
       ASAM Dataset: EV_UHVNA 002720
       ROD: EV_UHVNA_002.rod
       VCID: 3C2133A056E33E77D5F-8068

    No fault code found.

    End----------(Elapsed Time: 01:39, VBatt start/end: 14.2V/14.2V)-----------

    Last edited by a moderator: 7 Jan 2020
  12. Grim Reaper

    Grim Reaper Senior Member VCDS User VIP Member T6 Guru

    Map
  13. mmi

    mmi Senior Member VCDS User VIP Member T6 Legend

    Map
    You could use -- Insert -- Code -button
    to insert e.g. VCDS Scans, Fault Lists, etc. just by copying/pasting the "code". It will put your text between brackets
    Code:
    Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
    Part No SW: 7H0 907 534 HW: 7H0 937 090
    Component: Batt.regelung H75 0725
    Serial number: 0671 260142655
    Coding: 030B7A73
    Shop #: WSC 09999 999 999999
    VCID: 6B83C0FC638D69CF0C5-803E

    Subsystem 1 - Part No SW: 7E0 915 181 B HW: 7E0 915 181 B
    Component: J367-BDM H08 0181
    Serial number: 51232248082221647581

    1 Fault Found:
    02252 - Generator
    004 - No Signal/Communication
    Freeze Frame:
    Fault Status: 01100100
    Fault Priority: 2
    Fault Frequency: 1
    Reset counter: 199
    Mileage: 130415 km
    Time Indication: 0
    Date: 2020.01.07
    Time: 00:30:31.
    Anyways, thanks for posting the VCDS Scan, seems that the "old" fault didn't disappear.

    However, in the Scan, please don't delete the vehicle VIN totally, scrub just 5 last digits. A few crucial bits of information are now missing.

    Robert likes this.
  14. BrianK

    BrianK Member T6 Pro

    Map
    Sorry forgot you did this already!

  15. BrianK

    BrianK Member T6 Pro

    Map
    Thanks mmi

    Vin with last 3 missing is WV1ZZZ7HZFH048

    mmi likes this.
  16. mmi

    mmi Senior Member VCDS User VIP Member T6 Legend

    Map
    In VW language your van actually is of Model Year 2015 :thumbsup: as the VIN is WV1ZZZ7HZFH048xxx.
    2014 = E
    2016 = G
    2017 = H
    2018 = J
    2019 = K
    Sometimes this makes difference...

    Robert likes this.
  17. BrianK

    BrianK Member T6 Pro

    Map
    Thanks mmi I noticed this when using the other OBD11 device but just assumed it was another short coming of the unit.

  18. BrianK

    BrianK Member T6 Pro

    Map
    Do you think there is more I can do on VCDS to further identify what is causing this fault?

  19. mmi

    mmi Senior Member VCDS User VIP Member T6 Legend

    Map
    VCDS can do a few things:

    (1) I'd like to see full blockmap of the controller 61-Battery Management when engine is running.

    VCDS -> Applications -> Controller Channel Map ->
    Tick/fill boxes as above and hit Go

    VCDS Flashes screens for a moment (when finished hit "Done, Go Back") and there will be file blockmap-61-... in directory C:\Ross-Tech\VCDS\Logs\

    Please upload the file - just strip off last 3 digits of the VIN in file name and rename the files as .TXT-file (as The Forum doesn't like .CSV files o_O).


    (2) For the controller 61-Battery Management there are two tests you could run using VCDS when engine is running.
    a. Command manually alternator off
    b. Command manually alternator to max voltage

    If you have a voltmeter - just for comparison monitor the battery voltage (e.g cigarette lighter socket).​

    VCDS -> Select Control Module -> 61-Battery Management -> Output Tests ->

    Select the test "...10.6V" -> Start
    Run test for 1 min - record the data above.
    Make a note of engine RPM

    -> Stop

    Please post the results.

    Select test "...15.0V" -> Start
    Run test for 1 min - record the data above.
    Make a note of engine RPM

    -> Stop

    Please post the results.

    Exit the VCDS, turn off the engine.
    -------------------------------

    (3) Real time data can be monitored using

    VCDS -> Select Control Module -> 61-Battery Management -> Advanced Measurement Values ->
    Tick for example the following to monitor alternator output and currents in/out of the battery.

    Looking forward to see the data from the above (1), (2)a, (2)b :geek:

    Robert likes this.
  20. BrianK

    BrianK Member T6 Pro

    Map
    Hello mmi

    Thanks for the above.

    Today I attempted to code my battery correctly. I have no idea if I did this right as what I saw on the video linked by grim reaper above didn’t seem quit correct on my VCDS. For instance if I follow the none UDS version at the point 1 minute 54 seconds in on the video he chooses a drop down menu, I don’t even see this. I also don’t get a battery coding button or a pop-up like he does 1 minute 57 second in.

    I have attached a auto scan again but as txt this time, which was taken after clearing the faults, attempting the battery coding and then running the engine for 10 minutes. I would appreciate any comments but I suspect it is the same results as before.

    Unfortunately as my driveway is currently being excavated by the local gas company I’m having to park the van at my sons 30 odd miles away (according to the OH I have too many vehicles:whistle:), which obviously isn’t making for easy popping out and checking anything!

    I will follow your instructions below when I get over there next but it may be several days.

    EDIT: I suspect I could also do with repeating my scan I did on my post 50 in this thread but don’t know how yet on VCDS :oops:


    Attached Files:

Share This Page

  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
