Reversing Camera - Lowline to Highline Upgrade/Retrofit
- Thread starter Robert
- Start date
HI i have problem with my camera, just fit that and is black screen. Any sugestions
thanks
Code:
Sunday,01,November,2020,17:32:41:00009
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.2.0
Data version: 20200730 DS317.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZJH15**** License Plate: 181D
Mileage: 86850km-53966mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 7H-VN75 (7E0)
Scan: 01 02 03 04 08 09 10 15 17 19 25 56 5F
VIN: WV1ZZZ7HZJH15**** Mileage: 86850km-53966miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: OK 0000
56-Radio -- Status: OK 0000
5F-Information Electr. -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 KG HW: 04L 907 445
Component: R4 2.0l TDI H02 3771
Revision: 23002001
Coding: 00254014432401090000
Shop #: WSC 02762 790 50316
ASAM Dataset: EV_ECM20TDI03004L906056KG 004004
ROD: EV_ECM20TDI03004L906056JS_004.rod
VCID: 7CF741F7F7EB6E664F-8028
No fault code found.
Readiness: N/A
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0BT 300 046 J HW: 0BH 927 711 G
Component: DSG DQ500-7F H11 5301
Revision: 00H11V01
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021_001_VW36.rod
VCID: 3D718CF3AC71A76E38-8068
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 P HW: 7E0 907 379 M
Component: ESC H06 0133
Revision: 00000000 Serial number: 60828000000278
Coding: 517E4098256784858A750277A48A21E679F100
Shop #: WSC 02762 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3F8DF6FBA67DB57E2A-806A
1 Fault Found:
8285 - Databus
U1121 00 [009] - Missing Message
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:22
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 12031813470332
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7661-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E0 907 047 AK HW: 7E0 907 047 AK
Component: Climatic-T5 H22 0708
Revision: 00001002
Coding: 0000000003
Shop #: WSC 02762 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 73E56ACBDAB5211E1E-8026
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 088180979
Coding: B8A430B84AF3343193284FF47EEB8E7DFF8470FF60CC6D60330400220840
Shop #: WSC 02762 534 168286
VCID: 2B55B2AB4A0539DE96-807E
Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 230318 04 47 0106
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 P HW: 7E0 959 801 P
Component: J386__TSG_FT 004 0653
Serial number: KU0KU014031880731043
Coding: 1400B0
Subsystem 3 - Part No SW: 7E0 959 802 P HW: 7E0 959 802 P
Component: J387__TSG_BT 004 0653
Serial number: KU0KU026031880852011
Coding: 0400A0
Subsystem 4 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 5 - Part No: 1K0 951 605 F
Component: LIN BACKUP HO H01 0008
Coding: 000000
Subsystem 6 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 7 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 39180000256380058094
Coding: B0FFFF
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb
Part No SW: 1K8 919 472 C HW: 5Q0 919 294 A
Component: PARKHILFE 8K H03 0480
Revision: -------- Serial number: 39331727500488
Coding: 0071151051
Shop #: WSC 00020 999 12345
ASAM Dataset: EV_EPHVA18VW364GP00 001007
ROD: EV_EPHVA18VW364GP00_VW32.rod
VCID: 377D9EDB8E4D8D3EE2-8062
1 Fault Found:
12718592 - Databus
U1121 00 [009] - Missing Message
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:22
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 J HW: 7E0 959 655 J
Component: VW10Airbag021 010 0018
Revision: -------- Serial number: 003EK000SVAK
Coding: 000000000000000000000000000000003231
Shop #: WSC 02164 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3D718CF3AC71A76E38-8068
2 Faults Found:
9446677 - Redundant signal path for airbag shut-off; passenger side
B1025 15 [137] - Open or Short to Plus
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
9445397 - Key switch for deactivation of passenger-side airbag
B1020 15 [137] - Open or Short to Plus
MIL ON - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 S HW: 7E0 920 970 S
Component: KOMBI H03 1107
Serial number: 00000000000000
Coding: 050B030300
Shop #: WSC 02762 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW31.rod
VCID: 3A7B87EFBD5F90561D-806E
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 042307
Shop #: WSC 02762 534 168286
VCID: 68DF0DA79B73D2C6BB-803C
1 Fault Found:
01044 - Control Module Incorrectly Coded
000 - -
Freeze Frame:
Fault Status: 01100000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 255
Mileage: 86850 km
Time Indication: 0
Date: 2020.11.01
Time: 16:00:45
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 1107
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6AD-803E
No fault code found.
-------------------------------------------------------------------------------
Address 56: Radio
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-STD2.clb
Part No SW: 5C0 035 680 G HW: 5C0 035 680 G
Component: MU-S-ND-ER H41 0468
Serial number: VWZAZ2U0686474
Coding: 06570001AA00000011111101008808001F0100D601200100CF
Shop #: WSC 03489 004 104857
ASAM Dataset: EV_MUStd4CTSAT 001022
ROD: EV_MUStd4CTSAT_VW32.rod
VCID: 2541449324E10FAE40-8070
4 Faults Found:
0512 - Rear Right Bass Speaker
B1067 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
Voltage terminal 30: 11.8 V
0517 - Front Right Bass Speaker
B1062 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
Voltage terminal 30: 11.8 V
0522 - Front Left Bass Speaker
B105F 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
Voltage terminal 30: 11.8 V
0527 - Rear Left Bass Speaker
B1065 13 [009] - Open Circuit
[New feature! Extended UDS fault detail is only supported by current gen. interfaces]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 240
Mileage: 86850 km
Date: 2020.11.01
Time: 15:54:24
Voltage terminal 30: 11.8 V
End-------------------------(Elapsed Time: 03:05)--------------------------thanks
Last edited by a moderator:
I'm wondering why 56-Radio is ticked? It's probably confusing the 19-Gateway?
Although your coding for 10: Park/Steer Assist shouldn't disturb Rear View Camera, I'd still try stripping "extras" off to eliminate coding glitches and try just "plain" 00 00 05 11 11 - which works for me (towbar) or 00 00 05 10 11 (without towbar).
5F coding seems to be ok - byte 19, bit 4 "1"
Although your coding for 10: Park/Steer Assist shouldn't disturb Rear View Camera, I'd still try stripping "extras" off to eliminate coding glitches and try just "plain" 00 00 05 11 11 - which works for me (towbar) or 00 00 05 10 11 (without towbar).
5F coding seems to be ok - byte 19, bit 4 "1"
Do you get the ABS fault also with "plain" coding of 10: Park/Steer Assist - 00 00 05 11 11
---
Unfortunately in T6 the fault in 10: Park/Steer Assist won't clear.
See also:
www.t6forum.com
---
Unfortunately in T6 the fault in 10: Park/Steer Assist won't clear.
See also:
Side Assist - To Retrofit Or Not To Retrofit
Not the exact one but close... https://fccid.io/NBG934692A/User-Manual/Users-Manual-1-2641605
Camera is brand new, no i dont tested

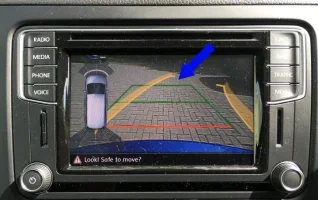

Hi there, @Robert I have a 2019 Highline Kombi with factory fitted camera. Is it possible to have the moving guidelines and if so what do I need to do ?I want to have moving guidelines while reversing so I think I am going to do it.
View attachment 89931
.
SWB, LWB makes no difference.
Where did you connect your permanent 12V DC, reversing signal and GND to?
