[Guide] [T6_modified] T6 Webasto Aux/Parking (water) Heater Configuration with VCDS

mmi said:

BLOCKMAP​

VCDS > Applications > Controller Channel Map
[Single Controller Address - 18]
[Measuring Values]
[CSV file]



The result file blockmap-18-... will be in folder C:\Ross-Tech\VCDS\Logs\...
Click to expand...
either my vcds can't do it or I...





Robert said:
Cześć.
Please watch the whole video and post here your AUTOSCAN as a text(not as a photo).

Click to expand...
Unfortunately @jarek you still didn't watch this video.
It takes less than 5 minutes of your time.
Please do as it explains in plain format the whole process of gathering required data and then process of posting it in the forum.

Robert said:
Unfortunately @jarek you still didn't watch this video.
It takes less than 5 minutes of your time.
Please do as it explains in plain format the whole process of gathering required data and then process of posting it in the forum.
Click to expand...
I watched it and did the same thing

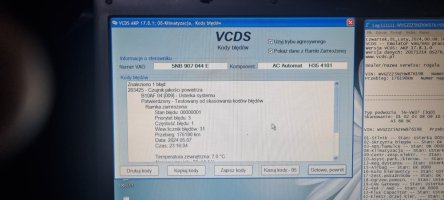

Thursday,01,February,2024,00:33:31:00005 VCDS -- VAG/VAS emulator working in the Windows environment, running on Windows XP x86 VCDS version: AKP 17.8.1.0 Data version: 20171214 DS276.6 www .vcds.pl Dealer/service name: rogal VIN: WVGZZZ5NZHW876198 Registration number: ROGALAWV Mileage: 176190km Repair number: jarek -------------------------- -------------------------------------------------- ---- ------------------------------------------------ ---------------------------------- Chassis type 5N-VW37 (3Q0) Scan: 01 02 03 08 09 10 13 15 16 17 18 19 22 42 44 52 5F 69 6C 6D A5 BB BC VIN: WVGZZZ5NZHW876198 Mileage: 176190km 01-Engine -- Condition: OK 0000 02-Gearbox -- Condition: OK 0000 03-ABS/ brakes - - Status: OK 0000 08-Air conditioning -- Status: OK 0000 09-Central electrical unit -- Status: OK 0000 10-Parking/Driver Assist. -- Status: OK 0000 13-Distance Adjustment -- Status: OK 0000 15-Airbag -- Status: OK 0000 16-Steering Wheel -- Status: OK 0000 17-Instrument Cluster -- Status : OK 0000 18-Auxiliary heat -- Status: OK 0000 19-CAN Gateway -- Status: OK 0000 22-4x4 / AWD -- Status: OK 0000 42-Electric Doors -- Status: OK 0000 44-Steering Coefficient -- Status: OK 0000 52-Electr.door belt. -- Status: OK 0000 5F-Electric information -- Status: OK 0000 69-Trailer -- Status: OK 0000 6C-Rearview camera -- Status: OK 0000 6D-Electric trunk -- Status: OK 0000 A5 -Assist sensors j-p. -- Condition: OK 0000 BB-Rear door facing -- Condition: OK 0000 BC-Rear door seat belt -- Status: OK 0000 ------------------------------------------ ----------------------------------- Address 01: Motor (J623-DFHA) Label File:. 04L-907-309-V1.clb Component designation SW: 04L 906 026 EJ HW: 04L 907 309 P Component: R4 2.0l TDI H24 3661 Verification: B4H24--- Coding: 0125003A04761D082000 Service code: WSC 01357 01 1 00200 Collection ASAM data: EV_ECM20TDI01104L906026EJ 004003 ROD: EV_ECM16TDI01104L906026HM_004.rod VCID: 76E350DBC9C738F6BB-8022 No errors found. Readiness codes: 0 0 0 0 1 ---------------------------------------- --------------------------------------- Address 02: Gearbox (J743) File labels: None SW element designation: 0DL 300 011 N HW: 0GC 927 711 H Component: GSG DQ500 H06 2014 Revision: 00H06V15 Coding: 0014 Service code: WSC 00000 000 00000 ASAM data set: EV_TCMDQ500021 00100 1 ROD: EV_TCMDQ500021_001_VW36.rod VCID : 3365A9CF9A356DDE5C-8066 No errors found. -------------------------------------------------- ----------------------------- Address 03: ABS/Brakes (J104) Label file:. 5Q0-907-379-IPB-V1.clb Component designation SW: 5Q0 614 517 CF HW: 5Q0 614 517 AD Component: ESC H25 0513 Verification: 00000000 Serial number: 63396000000714 Coding: 0AEE6B9A54270B72477 8070962CB4950D62AD0E2E046927D38625078C22A4200002F641A1B13111435351919323200 Service code: WSC 01357 011 00200 Collection ASAM data: EV_Brake1UDSContiMK100IPB 036010 ROD: EV_Brake1UDSContiMK100IPB_036_VW27.rod VCID: 77FD5DDFCECD41FEA0-8022 No errors found. -------------------------------------------------- ----------------------------- Address 08: Air conditioning (E87) Label file:| 3V0-907-044.clb Component designation SW: 5NB 907 044 E HW: 5NB 907 044 E Component: AC Automat H35 4101 Verification: 20K08000 Serial number: 00000B00331394 Coding: 00020104204111011105100C001 0112A Service code: WSC 01357 011 00200 ASAM data set: EV_ACClimaPrehVW37X 002019 ROD: EV_ACClimaPrehVW37X_002_VW37.rod VCID: 428BFC0BD58FD456C7-8016 Outdoor air humidity sensor: Rear air conditioning control panel: Subsystem 2 - SW element designation: 3G0 907 049 E HW: 3G0 907 049 E Component: E265KlimaHeck H02 0201 Serial number: 04031501850571 Coding: 000000 No errors found. -------------------------------------------------- ----------------------------- Address 09: Central electrical unit (J519) Label file:. 5Q0-937-08X-V2.clb Component designation SW: 5Q0 937 084 CF HW: 5Q0 937 084 CF Component: BCM MQBAB M+ H34 0236 Serial number: 02001634202750 Coding: 000000000000000000000000 000000000000000000000000000000000 Service code: WSC 01357 011 00200 ASAM data set: EV_BCMMQB 017001 ROD: EV_BCMBOSCH_017_VW27.rod VCID: 7EF348FBE1F770B6E3-802A Wiper motor controller: Subsystem 1 - Component designation SW: 5NB 955 119 HW: 5NB 955 119 Label file: 1KX-955-119.CLB Component : 326 LL 161125 033 0372 Serial number : 00000001611210436471 Coding: 0E4DDD Rain and light recognition sensor: Subsystem 2 - Component designation SW: 5Q0 955 547 B HW: 5Q0 955 547 B Label file: 5Q0-955-547.CLB Component: RLHS 042 0105 Number serial: S4Y16M12D12H17M29S15 Coding: 00A8DD No errors found. -------------------------------------------------- ----------------------------- Address 10: Parking/driver assist. (J791) Label file:| 5Q

No errors found.

-------------------------------------------------- -----------------------------
Address A5: Assist sensors j-p. (R242) Label file:| 3Q0-980-65X-A5.clb
Element designation SW: 3Q0 980 654 G HW: 3Q0 980 654
Component: MQB_B_MFK H06 0231
Serial number: 15121611P20909
Coding: 000307060000040100220045C050A90084000E200040
Service code: WSC 01357 011 00200
ASAM dataset: EV_MFKBoschMQBB 001001
ROD: EV_MFKBoschMQBB_VW36.rod
VCID: 3B7581EFB265A59E84-806E

No errors found.

-------------------------------------------------- -----------------------------
Address BB: Rear door facing (J388) Label file:* None
Element designation SW: 5Q0 959 595 E HW: 5Q0 959 595 B
Component: TSG HFS 020 0041
Serial number: 291116EKS19242
Coding: 002A01200101048000001000
Service code: WSC 01357 011 00200
ASAM dataset: EV_DCURearDriveMAXKLO 006003
ROD: EV_DCUREarDriveMAXCONT_VW37.rod
VCID: 4581E717C4A1E36EE2-8010

No errors found.

-------------------------------------------------- -----------------------------
BC address: Rear door s.pas. (J389) Label file:* None
Element designation SW: 5Q0 959 595 E HW: 5Q0 959 595 B
Component: TSG HBFS 020 0041
Serial number: 281116EKR06986
Coding: 002A01200101048000001000
Service code: WSC 01357 011 00200
ASAM dataset: EV_DCURearPasseMAXKLO 006003
ROD: EV_DCUREarPasseMAXCONT_VW37.rod
VCID: 4581E717C4A1E36EE2-8010

No errors found.

jarek said:
that link should now work
Click to expand...

Apologies - this just slipped unnoticed...
Code:
-------------------------------------------------------------------------------

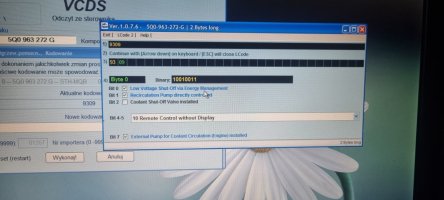

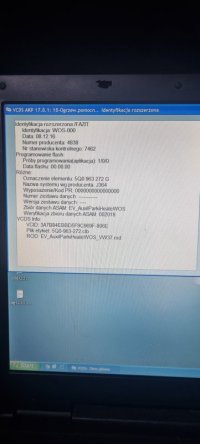

Adres 18: Ogrzew.pomocn. (J364)       Plik etykiet:| 5Q0-963-272.clb
   Oznaczenie elementu SW: 5Q0 963 272 G    HW: 5Q0 963 272 G
   Komponent: STH-MQB       008 0075
   Kodowanie: 9309
   Kod serwisu: WSC 01357 011 00200
   Zbiór danych ASAM: EV_AuxilParkiHeateWOS 002018
   ROD: EV_AuxilParkiHeateWOS_VW37.rod
   VCID: 3A7B84EBBD5F9C969F-806E

   Zdalne sterowanie radiowe ogrzewania postojowego:
   Podsystem 1 - Oznaczenie elementu SW: 3Q0 963 513     HW: 3Q0 963 513
   Komponent: R64 D208L  004 0401
   Numer seryjny: 00000000000000151137

Nie znaleziono b³êdów.

-------------------------------------------------------------------------------
Everything looks ok.

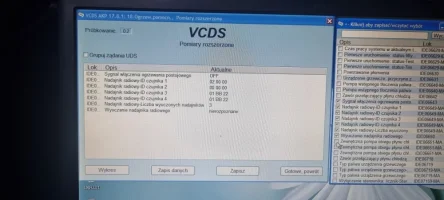

Any of these are correct IDs of the remotes?

mmi said:
Apologies - this just slipped unnoticed...
Code:
-------------------------------------------------------------------------------
Adres 18: Ogrzew.pomocn. (J364)       Plik etykiet:| 5Q0-963-272.clb
   Oznaczenie elementu SW: 5Q0 963 272 G    HW: 5Q0 963 272 G
   Komponent: STH-MQB       008 0075
   Kodowanie: 9309
   Kod serwisu: WSC 01357 011 00200
   Zbiór danych ASAM: EV_AuxilParkiHeateWOS 002018
   ROD: EV_AuxilParkiHeateWOS_VW37.rod
   VCID: 3A7B84EBBD5F9C969F-806E

   Zdalne sterowanie radiowe ogrzewania postojowego:
   Podsystem 1 - Oznaczenie elementu SW: 3Q0 963 513     HW: 3Q0 963 513
   Komponent: R64 D208L  004 0401
   Numer seryjny: 00000000000000151137

Nie znaleziono b³êdów.

-------------------------------------------------------------------------------
Everything looks ok.

View attachment 242302
Click to expand...
problem solved... it turned out that the original remote control was damaged and the new one I bought had the wrong code and could not communicate with the control unit. after buying another remote control that communicates with this control unit, everything works!

Last edited by a moderator:
jarek said:
the new one I bought had the wrong code and could not communicate with the control unit.
Click to expand...
Thanks for letting us know the outcome.
Just curious - was the part number different? Possibly the same looking remote but for a different brand of car?

Hi everybody,

Recently I've bought T6 - TDI 2.0, 2019, plain van
There is an auxiliary heater installed. And it is working (i feel how it heats the cabine).

But I don't understand if it is heating the engine aw well? Could anybody explain how can I check it? And how can I check which name of device is installed (is it webasto, thermo top, air top, z/c ...)? I also have such a control panel as in the first post in this thread, under the roof with LCD and 4 buttons

18. Additional heater
VAG Part number: 7E0963272B
Software version: 0009
Hardware Part number: 7E0963272B
System designation: STH-T5GP2
Calibration date (ASCII): 000000
ASAM/ODX: EV_AuxilParkiHeateWOST5G2
Hardware version: 003
ASAM/ODX version: 001013
FAZIT Identification: WOS-00016.09.1946360538
Parameter set part number: -----------
Parameter set version: ----
System abbreviation: J364
Date of last adaptation: 000000
Unit ID: 18
Date of last coding: 191014
Diagnostic mode: 03
Long Coding: 4D01

Last edited:
AntonGangsta said:
if it is heating the engine aw well? Could anybody explain how can I check it?
Click to expand...
AntonGangsta said:
Long Coding: 4D01
Click to expand...
No, per the coding it does not heat the engine, only the cabin. See post #1.

AntonGangsta said:
Long Coding: 4D01
Click to expand...

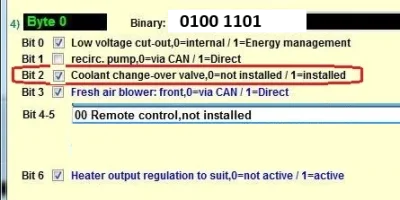

Byte 0 in your coding 4D would be as below


Change the coding from 4D 01 to coding 49 01 to enable engine heating as well.

AntonGangsta said:
And how can I check which name of device is installed (is it webasto, thermo top, air top, z/c ...)?
Click to expand...
There should be a sticker on driver door.

Anyways,
AntonGangsta said:
VAG Part number: 7E0963272B
Click to expand...
is the Webasto Thermo Top Evo.

Hi everyone.

I've got a gen 6 caravelle 2016. I bought this kit for the remote start, fitted it to the green/white cable in pin 1, learnt the remote and changed the coding to remote no screen (I think that makes it 5101) but I can’t get it to start up.

Does it still have to meet the normal conditions for the heater to start (being 5c or less)? Or do I need to change the software in the unit.

I've attached my VCDS reading below.

Any help would be amazing.



Attachments

  • Like
Reactions: mmi
H4UXO said:
I can’t get it to start up.

Does it still have to meet the normal conditions for the heater to start (being 5c or less)?
Click to expand...
The heater starts at any temperature when using a remote. However,
H4UXO said:
Or do I need to change the software in the unit.
Click to expand...
Yes, it's a specific software which has the parking heater functionality and can be started via a remote.
Please check below:
Robert

Post in thread 'OEM Webasto Auxiliary Heater To Parking Heater Upgrade'

My aux heater details before flashing.

Code:
Address 18: Aux. Heat (J364)       Labels:| 7E0-963-27X-18.clb

   Part No SW: 7E0 963 273     HW: 7E0 963 273

   Component: STH-T5GP2     002 0007

   Coding: 4101

   Shop #: WSC 02759 790 50316

   ASAM Dataset: EV_AuxilParkiHeateWOST5G2 001010

   ROD: EV_AuxilParkiHeateWOST5G2.rod

   VCID: 6ADB74A98D7FEE1A6B-803E



Address 18: Aux. Heat

Control Module Part Number: 7E0 963 273

  Component and/or Version: STH-T5GP2     002 0007

           Software Coding: 4101

            Work Shop Code: WSC 02759...
  • Like
