56D907801 This unit is not compatible with T6.1
T6.1 have MQB platform
And this unit is made for pq25 platform (T5.1 and T6)
T6.1 have MQB platform
And this unit is made for pq25 platform (T5.1 and T6)
First part arrived. I stating do have dummy question, where to put all this unit? Under driver seat? I ordered main unit from aliexpert and I’m still crossing my fingers that will working.
There is any way to check that module on desk?
How to check if that will working with my ABS? Unlucky I have that version that was mentioned as not support ACC
and that was as well my idea to make that retrofit.
There is any way to check that module on desk?
How to check if that will working with my ABS? Unlucky I have that version that was mentioned as not support ACC
and that was as well my idea to make that retrofit.
pellizzoni
Member
Você Usando a Unidade 56D você sabe me dizer o que é alimentação do terminal 15 e o que é alimentação do terminal 30?E finalmente meu primeiro lote de controladores EPB chegou.
Desta vez, um VW novo e genuíno, fabricado pela TRW.
Totalmente funcional e funcionando.
Já testado em bancada e no veículo :afirmativo:.
Também com o envolvimento de @dnoermann
verificamos a compatibilidade do BCM e esses módulos funcionam com todas as revisões de
BCM PQ25 Max4 7E0 937 090 (sem letra/B/C/D).
View attachment 109908
View attachment 109909
View attachment 109910
pellizzoni
Member
Usando a Unidade 56D, você pode me dizer qual é a fonte de alimentação para o terminal 15 e qual é a fonte de alimentação para o terminal 30?E finalmente meu primeiro lote de controladores EPB chegou.
Desta vez, um VW novo e genuíno, fabricado pela TRW.
Totalmente funcional e funcionando.
Já testado em bancada e no veículo :afirmativo:.
Também com o envolvimento de @dnoermann
verificamos a compatibilidade do BCM e esses módulos funcionam com todas as revisões de
BCM PQ25 Max4 7E0 937 090 (sem letra/B/C/D)
View attachment 109908
View attachment 109909
View attachment 109910
Just
“Using Unit 56D, can you tell me which is the power supply for terminal 15 and which is the power supply for terminal 30?”
“Using Unit 56D, can you tell me which is the power supply for terminal 15 and which is the power supply for terminal 30?”
Please send questions in English as that main language here
pellizzoni
Member
ok “Using Unit 56D, can you tell me which is the power supply for terminal 15 and which is the power supply for terminal 30?”
@Robert might be able to tell you

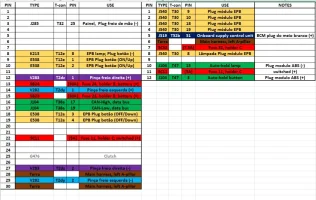

For 56D EPB controller:
Terminal 15 -> PIN 22
Terminal 30 -> PIN 13 & PIN 15
Terminal 31 -> PIN 28 & PIN 30
pellizzoni
Member
Thank you very much! I still have a question about the activation key. I'm using the 56D-927-225 where pin 7 and pin 11 are power. If you have the information about which is terminal 15 and which is terminal 30, I would appreciate it.
For 56D EPB switch:
Terminal 15 -> PIN 11
Terminal 30 -> PIN 7
Terminal 31 -> PIN 6
pellizzoni
Member
Mustafa_Turhan
New Member
Merhaba,
Bu konu gerçekten dikkatimi çekti ve bunu 2005 model Transporter T5'ime uygulamak istiyorum. Ancak forumu takip ettiğimde konular çok dağınık ve kafa karıştırıcı görünüyor. Sadece hobi düzeyinde ve sınırlı elektronik bilgim var.
Konuyu anlayabileceğim bir şekilde açıklayabilir misiniz lütfen - adım adım, baştan sona, tercihen görseller, videolar veya fotoğraflarla? Kullanmam gereken parça numaraları ve bileşenler vb. dahil olmak üzere net ve yapılandırılmış bir liste sağlayabilirseniz harika olur.
Bu konu gerçekten dikkatimi çekti ve bunu 2005 model Transporter T5'ime uygulamak istiyorum. Ancak forumu takip ettiğimde konular çok dağınık ve kafa karıştırıcı görünüyor. Sadece hobi düzeyinde ve sınırlı elektronik bilgim var.
Konuyu anlayabileceğim bir şekilde açıklayabilir misiniz lütfen - adım adım, baştan sona, tercihen görseller, videolar veya fotoğraflarla? Kullanmam gereken parça numaraları ve bileşenler vb. dahil olmak üzere net ve yapılandırılmış bir liste sağlayabilirseniz harika olur.
After another "short" break I'm now read to mount the system into my VW Eos.
Electrically the EPB already is working well. Mechanically the calipers are lying behind my driver seat.
As I'm willing to finally mount the EPB into the car, I wonder about the orientation of the EPB control unit. Does anybody know how it is mounted in a Passat NMS? In my opinion the orientation is important because of build in position sensors nessesary for the unit to open the breaks in time.
Btw., does anybody need a guaranteed working original 56D907801A?
I've bought it in a time, when I thought, my first CU was broken.
If so, you can make me a realistic offer.
I just want to tell you that I've paid more than $350
. So please be fair.
Electrically the EPB already is working well. Mechanically the calipers are lying behind my driver seat.
As I'm willing to finally mount the EPB into the car, I wonder about the orientation of the EPB control unit. Does anybody know how it is mounted in a Passat NMS? In my opinion the orientation is important because of build in position sensors nessesary for the unit to open the breaks in time.
Btw., does anybody need a guaranteed working original 56D907801A?
I've bought it in a time, when I thought, my first CU was broken.
If so, you can make me a realistic offer.
I just want to tell you that I've paid more than $350
. So please be fair.I've figured out, the connector leads to the right side.
Do you recognize any difference between A and B? Yours is the first B version I've ever seen.I just received package from my friend, it’s look quiet nice. Maybe at the evening I will give a try to connect o to vcds
View attachment 281934View attachment 281936
View attachment 281935
I use B for over 4 years now.
Actually A can be flashed to B but this exercise doesn't change nor improve anything. Both revisions have the same coding and adaptation channel capabilities.
I tried both A & B, and I couldn't see any difference.And finally my first lot of EPB controllers has arrived.
This time brand new and genuine VW made by TRW.
Fully functioning and working.
Already tested on bench and in the vehicle.
Also with @dnoermann's involvement
we have verified BCM compatibility and these modules work with all revisions of
BCM PQ25 Max4 7E0 937 090(no letter/B/C/D)
View attachment 109908
View attachment 109909
View attachment 109910
Actually A can be flashed to B but this exercise doesn't change nor improve anything. Both revisions have the same coding and adaptation channel capabilities.
