EPB Retrofit ... the way to Stop & Go

[dnoermann]

So with ACC and DSG in the T6 we have the FollowToStop capability.
But i wont more, i wont to have "Stop and Go" like it is available in the VW Sharan PQ35 which is very likely like the T6 which is PQ25.
Needles to say we need Auto-Hold and EPB to get Stop & Go capability.

T6 ABS is a complete different one than the one in Sharan.
But changing to Sharan ABS is no good idea because the internal Settings for ESP which are cricial relevant for safety, from the Sharan for shure are no fit for the T6.

So we need to get EPB added and get Authold enabled in ABS.
I have no clue if that is possible, but i started.

Elektronic part of EPB is working, together with an EPB Aktor simulation.
EPB is Number 53, which is not possible to enable in T6 Gateway, but still you can install it on Engine Can-Bus and it works.
Than you can enable EPB in ACC Coding without getting an error about missing EPB.
In DSG you can see that EPB now talks to DSG, no error, too.

Electricaly it looks good, no errors.

I did two Videos to show the very little difference in Car behaviour when doing FTS now.

The one available standalone EPB is the one from Passat B6/B7, 3AA907901H
but that one uses an additional communication-line to ABS, which we don't have, so that one i was not able to get running.

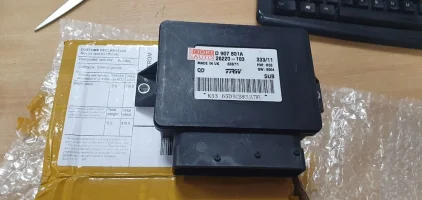

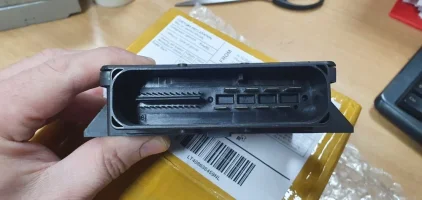

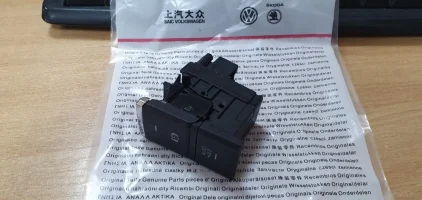

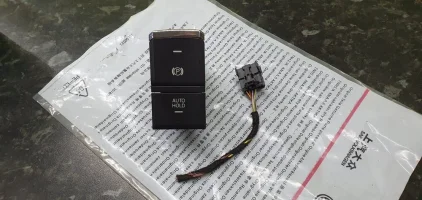

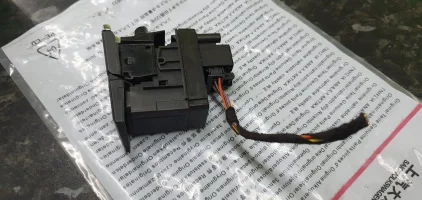

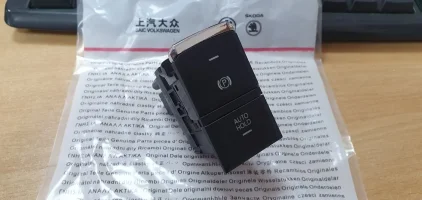

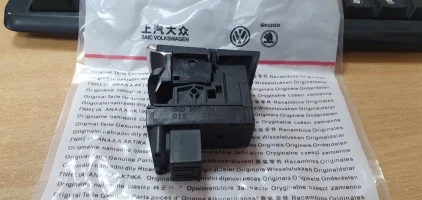

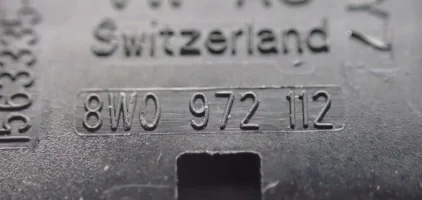

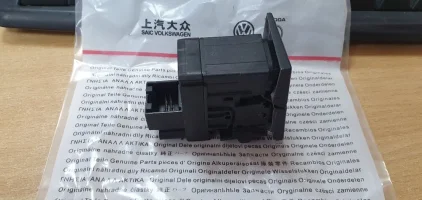

You need EPB Controller together with its switch from the PQ35 Passat NMS China
- 56D907801A
- 56D927225

Mechanical Part is now the Question:

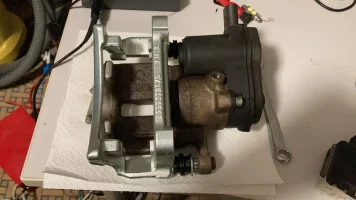

Audi A4/S4 rear Brake with 300x22mm Disk is probably a good fit for the T6 294x22mm Disks
Part numbers: 8W0615404 and 8W0615403
Need to check how this can be mounted on the T6 ...

Getting AutoHold enabled in the T6 Mk100 ABS is the next probably impossible task to accomplish ....

Adding some Pictures of the flying EPB Setup and Simulation of EPB Motors behind the Driver seat.



Autoscan: 53 is manually scanned and added @ the end.

Chassis Type: 7H-VN75 (7E0)
Scan: 01 02 03 04 08 09 10 13 15 17 18 19 22 25 2E 37 3C 55 56 61
69 6C 6E 77 AD 0B

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
37-Navigation -- Status: OK 0000
3C-Lane Change -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
6E-Ctrl Head Roof -- Status: OK 0000
77-Telephone -- Status: OK 0000
AD-Brake Sensors -- Status: Malfunction 1110
-------------------------------------------------------------------------------
Address 01: Engine (J623-CFCA) Labels:. 03L-906-022-CFC.clb
Part No SW: 03L 906 019 HM HW: 03L 907 309 L
Component: R4 2,0L EDC H38 8375
Revision: 22H38--- Serial number: 00000000000000
Coding: 0125401A237601080000
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_ECM20BTD01103L906019HM 003005
ROD: EV_ECM20BTD01103L906019HJ.rod
VCID: 7DA60C6E3D713293395-8028

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0BT 300 011 Q HW: 0BH 927 711 G
Component: DSG DQ500-7A H11 2236
Revision: 00H11V01
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021_001_VW36.rod
VCID: 3C20C16A66EBFB9B4EB-8068

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 Q HW: 7E0 907 379 N
Component: ESC H06 0133
Revision: 00000000 Serial number: 43036000000361
Coding: 307E809865__86__0C__01__A6__619378FF50
Shop #: WSC 00046 000 00000
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 40D8B59A0A039F7B123-8014

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 17041713470217
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EA40B623077298B20F-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 7E5-907-040.clb
Part No SW: 7E5 907 040 AC HW: 7E5 907 040 AC
Component: ClimatronicT5 H19 0407
Revision: 00001004
Coding: 0000000103
Shop #: WSC 02756 790 50316
ASAM Dataset: EV_ClimatronicT5 A01003
ROD: EV_ClimaAutoT5Basis.rod
VCID: 698E483E59F9BE33E5D-803C

Slave 1:
Subsystem 1 - Part No SW: 7E5 907 049 B HW: 7E5 907 049 B
Component: Heckbedienung H10 0202
Serial number: BHB-0010710130015098

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 C HW: 7E0 937 090 C
Component: BCM PQ25 Max4 H82 0752
Revision: B9082001 Serial number: 4000 088181300
Coding: E0A039BA0A21201301280E716EAB8FD50094660060857851320400000040
Shop #: WSC 12345 123 12345
VCID: 2B02F23693056C23D71-807E

Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB
Component: RLS 071013 05 54 0403
Coding: 02252E

Subsystem 2 - Part No SW: 7E0 959 801 J HW: 7E0 959 801 J Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 8652
Serial number: KU0KU008101300018609
Coding: 0400A3

Subsystem 3 - Part No SW: 7E0 959 802 J HW: 7E0 959 802 J Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 003 8652
Serial number: KU0KU002101300011203
Coding: 1400A3

Subsystem 4 - Part No SW: 7E0 959 442 A HW: 7E0 959 442 A Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29150002355190075477
Coding: B4FFFF

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 L HW: 7N0 919 475
Component: PARKHILFE 8K H06 0106
Revision: -------- Serial number: 28261326801945
Coding: 318102
Shop #: WSC 02756 790 50316
ASAM Dataset: EV_VW75XParkAssis8K 001003
ROD: EV_VW75XParkAssis8K_001_VN75.rod
VCID: 3B22C27663E5FCA3471-806E

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 7N0-907-572.clb
Part No SW: 7N0 907 572 C HW: 7E0 907 572
Component: ACC Bosch PQx H03 0211
Serial number: 08021577030385
Coding: 00005900FE0779
Shop #: WSC 00078 790 00176
ASAM Dataset: EV_ACCBEGVW361 001006
ROD: EV_ACCBEGVW361.rod
VCID: 3634D34258C721CBB8F-8062

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 H HW: 7E0 959 655 H
Component: VW10Airbag01S H08 0018
Revision: -------- Serial number: 003V40042CZ5
Coding: 000000000000000000000000000000003153
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3B22C27663E5FCA3471-806E

Crash sensor for side airbag: driver side:
Serial number: 3495ZRB400250KJKP1GY

Crash sensor for side airbag: front passenger side:
Serial number: 3505ZRB400450KJKN9O%

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 880 S HW: 7E0 920 880 S
Component: KOMBI H04 1105
Serial number: 00000000000000
Coding: 150F010000
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW31.rod
VCID: 3A2CC7726CDFC5AB5C7-806E

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat Labels: None
Part No: 7E0 819 008 F
Component: J737__Standheizung 0605
Revision: 00086000 Serial number: 09024901A00000
Coding: 0021332
Shop #: WSC 02757 790 00000
VCID: 2C00F12A9A0B6B1BDEB-8078

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090 C
Component: GW-K-CAN TP20 H82 0752
Revision: B9082001
Coding: 042204
Shop #: WSC 12345 123 12345
VCID: 68884D3A4273873BFA3-803C

1 Fault Found:
03928 - Sensor Module for Brakes
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 133
Mileage: 182619 km
Time Indication: 0
Date: 2020.11.20
Time: 13:50:08


-------------------------------------------------------------------------------
Address 22: AWD Labels: 0AY-907-554-V1.clb
Part No SW: 09N 907 554 B HW: 09N 907 554 B
Component: Haldex 4Motion 6008
Coding: 0000001
Shop #: WSC 02756 790 00000
VCID: 372ADE46534DD8C3A39-8062

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H04 1105
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6A8C37325CFFB52BEC7-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl
Part No SW: 5N0 035 342 G HW: 5N0 035 342 G
Component: SG EXT.PLAYER H19 0770
Revision: A1001003 Serial number: 7665304253
Coding: 010100
Shop #: WSC 02756 790 00000
VCID: 2B02F23693056C23D71-807E

No fault code found.

-------------------------------------------------------------------------------
Address 37: Navigation (J0506) Labels:. 1T0-035-680.clb
Part No SW: 7E0 035 680 B HW: 7E0 035 680 B
Component: RNS-MID H09 5274
Revision: AB001001 Serial number: VWZ6Z7N7280058
Coding: 04000402040000A00014
Shop #: WSC 02754 790 00000
VCID: 2410190AFEDBA35B16B-8070

Subsystem 1 - Part No: 1T0 919 859 B
Component: EU West V16 8536

No fault code found.

-------------------------------------------------------------------------------
Address 3C: Lane Change Labels: Redir Fail!
Part No SW: 7E0 907 566 B HW: 4L0 907 566 A
Component: J0769 SWA MasterH13 0120
Revision: 00H13000 Serial number: 6PZ 009 014-07
Coding: 0010161
Shop #: WSC 02756 790 00000
VCID: 2F3AE626AB1D1003FB9-807A

Subsystem 1 - Part No: 7E0 907 568 B
Component: J0770 SWA Slave H10 0120

Subsystem 2 - Serial number: 6PZ 009 014-27

Subsystem 3 - Serial number: 5F26.09.1300H10000AMS14437ÿ

Subsystem 4 - Serial number: S14437ÿ

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J431) Labels:. 6R0-907-357.clb
Part No SW: 6R0 907 357 HW: 6R0 907 357
Component: LWR-ECU H02 0070
Revision: -------- Serial number: --------------
Coding: 028A000001000000
Shop #: WSC 02757 790 50316
ASAM Dataset: EV_HeadlRegulVWLWRPt 001004
ROD: EV_HeadlRegulVWLWRPt_VW25.rod
VCID: 77AA1E461F4D18C3639-8022

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506) Labels:. 1T0-035-680.clb
Part No SW: 7E0 035 680 B HW: 7E0 035 680 B
Component: RNS-MID H09 5274
Revision: AB001001 Serial number: VWZ6Z7N7280058
Coding: 04000402040000A00014
Shop #: WSC 02754 790 00000
VCID: 2410190AFEDBA35B16B-8070

Subsystem 1 - Part No: 1T0 919 859 B
Component: EU West V16 8536

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090 C
Component: Batt.regelung H82 0752
Serial number: 4000 088181300
Coding: 330B1A73
Shop #: WSC 02762 790 12345
VCID: 68884D3A4273873BFA3-803C

Subsystem 1 - Part No SW: 7E0 915 181 D HW: 7E0 915 181 D
Component: J367-BDM H08 0182
Serial number: 50262E43111931975854

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 G HW: 1K0 907 383 G
Component: Anhaenger H10 0110
Revision: 3B001001 Serial number: 00000194554106
Coding: 410D000101000000
Shop #: WSC 02756 790 00000
VCID: 313EE05EB12906F3EDD-8064

No fault code found.

-------------------------------------------------------------------------------
Address 6C: Back-up Cam. Labels: 5N0-907-441.clb
Part No SW: 7E0 907 441 HW: 7E0 907 441
Component: J772__Rearview 0040
Revision: 00H12000 Serial number: 525PA8-J390101
Coding: 0030015
Shop #: WSC 18342 003 1048576
VCID: 6596440EB9619A53C15-8030

No fault code found.

-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702) Labels:. 7E5-919-037-W2.clb
Part No SW: 7E5 919 037 G HW: 7E5 919 037 G
Component: Dachdisplay H15 0185
Revision: 10100011 Serial number: 308907
Coding: 000203
Shop #: WSC 02756 790 00000
VCID: 3536D44E45412AD3B15-8060

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412) Labels:| 3C8-035-730-A.clb
Part No SW: 3C8 035 730 D HW: 3C8 035 730 D
Component: Telefon 022 0971
Revision: -------- Serial number: 35502105055314
Coding: 020101000100000000000101
Shop #: WSC 02756 790 50316
ASAM Dataset: EV_UHVPremi 002709
ROD: EV_UHVPremi.rod
VCID: 2410190AFE5BA35B16B-8070

No fault code found.

-------------------------------------------------------------------------------
Address AD: Brake Sensors
Cannot be reached

End----------(Elapsed Time: 02:04, VBatt start/end: 14.6V/14.7V)-----------

Sunday,22,November,2020,09:52:28:01479
VCDS Version: Release 20.4.2 (x64) Running on Windows 7 x64
www.Ross-Tech.com

Address 53: Parking Brake Labels: 56D-907-801.clb
Control Module Part Number: 56D 907 801 A HW: 56D 907 801 A
Component and/or Version: EPB-4 H03 0004
Software Coding: 0F3355
Work Shop Code: WSC 00078 790 00176
ASAM Dataset: EV_ParkiBrakeTRWVW411 002007 (VN75)
ROD: EV_ParkiBrakeTRWVW411.rod
VCID: 290E083E99797E3325D-807C
No fault code found.



[Robert]

Impressive effort mate!
Well done!



[Robert]

By having EPB onboard the stopping is indicated much later.
Effectively the bus is at full stop for a fraction of a second.
This looks like definitely the right direction for a proper STOP&GO ACC!



[dnoermann]

Looks like EPB-4 is used in Audi's, too.

From an Audi Q5 for example, but without any coding ...

Address 53: Parking Brake (----) Labels: 8K0-907-801-V2.clb
Part No SW: 8K0 907 801 M HW: 8K0 907 801 J
Component: EPB-4 H01 0004
Revision: -------- Serial number: 00000001408633
ASAM Dataset: EV_ParkiBrake 001028
ROD: EV_ParkiBrake_AU48.rod
VCID: 392F2ECE99D5AB8F993-806C

No fault code found.



[Robert]

I am way behind you @dnoermann but trying to catch up



[Robert]

...
Mechanical Part is now the Question:
Audi A4/S4 rear Brake with 300x22mm Disk is probably a good fit for the T6 294x22mm Disks
Partnumbers: 8W0615404 and 8W0615403
...

I was wondering if Sharan 7N was any good
but after checking ETKA the rear brakes are too small.

Sharan 2010 uses 282X12 discs
Sharan 2016 uses 300X12 discs



[dnoermann]

The Numbers from my first Post for the Rear Brake Calipers are wrong.
That ones where for the 300x12 Disks.

I now have
4G0 615 403 A and 4G0 615 404 A
from AUDI A6 (4G2, 4GC, C7) for 330x22 Disks.
Theese ones are fitting the T5/T6 Brake Holder, when using additional nut as spacer, perfectly.
And they bring enoth room (60mm) for the Disk + brake lining.
57 mm is the minimum needed space (17,5 mm + 22 mm + 17,5 mm)

Final fit on the Bus and Brake Test are still needed, but it is cold outside and covid is out there, so probably making a break till March ...



[Robert]

...
You need EPB Controller together with its switch from the PQ35 Passat NMS China
...

Just in case if anybody was wondering what the NMS stands for,
it means New Midsize Sedan .

Volkswagen Passat (North America and China) - Wikipedia

en.wikipedia.org



[Robert]

Slowly but surely .



Made in UK, sold in China, delivered to Ireland via Netherlands



[Robert]

Thanks to @dnoermann's generosity
and his will to share his fabulous knowledge I also got required plugs .

EPB switch plug




EPB control module plug



[Robert]

The Numbers from my first Post for the Rear Brake Calipers are wrong.
That ones where for the 300x12 Disks.

I now have
4G0 615 403 A and 4G0 615 404 A
from AUDI A6 (4G2, 4GC, C7) for 330x22 Disks.
Theese ones are fitting the T5/T6 Brake Holder, when using additional nut as spacer, perfectly.
And they bring enoth room (60mm) for the Disk + brake lining.
57 mm is the minimum needed space (17,5 mm + 22 mm + 17,5 mm)

Final fit on the Bus and Brake Test are still needed, but it is cold outside and covid is out there, so probably making a break till March ...

View attachment 95319
View attachment 95320

I have done some further digging through ETKA (thanks @dnoermann for motivation )
and I found another 3 rear brake caliper housings with servomotor
that should be compatible with T5/T6.
I haven't got any of these yet so they are subject to final verification.

Audi A4/A5/Q5 (2008-2012) - brake disc (vented) 330x22
8K0 615 403 A & 8K0 615 404 A

Audi A4/A5/Q5 (2013-2016) - brake disc (vented) 330x22
8K0 615 403 C & 8K0 615 404 C

Audi A4/A5/Q5 (2013-) - brake disc (vented) 330x22
8K0 615 403 D & 8K0 615 404 D

Electrical plug for bringing supply to these servomotor is 3B0973722A
and it is the same for all 4 types of servomotor pairs mentioned above.



[Robert]

More toys arrived .



[Robert]

Perfect match .



[mmi]

Meanwhile - early developments of EPB (of Passat B6)

Self Study Program 346 - The electromechanical parking brake - PDF for FREE

VAG SSP 346. To make absolutely sure that the vehicle could not roll away when parked up, the driver had to pull up sharply on the handbrake lever until now or step on an additional parking brake pedal in the footwell. In the future, all that will be required is…

procarmanuals.com



[Robert]

Thanks @mmi !

Wiring is complex but quite easy to comprehend the principles of this system.


On a side note, it is almost unbelievable that electric motor drives the gears via toothed belt!



[Robert]

First live test completed .








I am still toying as to where I should get it installed.
Floor where original PB is located?
Or maybe more convenient, in the dash?

Also my "new" calipers with servomotors are due to arrive soon .



[andys]

Difficult one. In the Audis and various other cars I've driven that have this facility it was in the middle where a handbrake would be, but without a raised centre console it would be awkward. I'd say dash, but on the left side of the wheel where visibility and access is better in case you needed it in an emergency.



[Robert]

Another perfect match .
Re-pining also completed.
Just need to extend 9 "control" and 8 "power" wires.



[Robert]

The other end of my loom arrived.
I think I am getting excited!
Come on weather! Improve, will you?



[VioletVW]

EPB button is to the right of the steering wheel in a Passat B6. I'm used to it in that position now but if you haven't ever used one then you can place it in your position of choice.
