DAKU'S VAG CONTROLLER for PQ25

[Robert]

Its strange that T5.1 side assist green led light was on in my OEM cluster, but when I changed to T6 it didn’t

View attachment 139683

Do you know the software version of your previous T5.1 Instrument Cluster?



[Shadow109]

Do you know the software version of your previous T5.1 Instrument Cluster?

I still have the cluster it self

Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 N HW: 7E0 920 970 N
Component: KOMBI H04 0805 Serial number: 00000000000000
Coding: 160A01 Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04727
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 353728FE15C3F6736C5-8060



[Robert]

On T6 Instrument Cluster, the functionality of all 4 LEDs (green & yellow for Front Assist & same 2 colours for Side Assist) have been removed.
Basically VW decided not to solder required LEDs and associated resistors.
Additionally the functionality of green LEDs (FRONT ASSIST & SIDE ASSIST) has been also removed from the software.

But thanks to @Daku's controller the functionality of these 2 green LEDs can be easily restored



[Daku]

Need tester for module for Car w/o Audio menu.
At bench menu works well.
Bench setup:

• Gateway 7N0 BR - Not important 1)
• 3AA920880H Color cluster - Not important
• BCM 3AA937087E - Not important 1)
• Radio - NONE
• VAGPCB HW:1.X SW: D009 BETA (21-12-20)

1) PQ25 BCM have built-in Gateway into BCM.

Menu can disappear at first try, but after slide to menu again, it stay.



[Daku]

Voltage from BCM



[Robert]

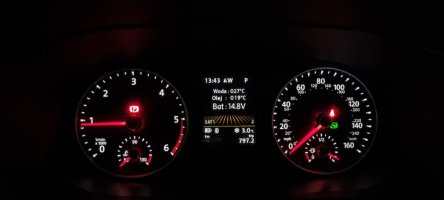

Looks like my charging works pretty well

Ignition ON.


And engine ON.


Thank you so much Dawid for your amazing product and its endless capabilities



[Daku]

I got question from Škoda owner, he want to enable GRA High via my PCB, i think that's possible but i must know messages.



[hanzz]

is it possible to have the green "Lights are on" led in the cluster?



[Robert]

is it possible to have the green "Lights are on" led in the cluster?



[hanzz]

Amazing! Thank you!



[Daku]

Multilang feataure kick's IN !
All changes done by Coding via VCP.
Language bit is connected for DPF purging message and Live Data!

First photo, cluster w/o Polish characters - 3C0920817T / 3C8920870A

Available translations

/*
 *     Języki
 *
 *     PL    -     Polski
 *     EN    -    Angielski
 *     DE    -    Niemiecki
 *     RU    -    Rosyjski
 *     LT    -    Litewski
 *     IT    -    Włoski
 *     FR    -    Francuski
 *     RO    -    Rumuński
 *     LV    -    Łotewski
 *
 */



[hanzz]

Can the module only be configured/update by vcds or is this also working with obdeleven?



[Daku]

VCP 100% working solution.
VCDS only for coding via helper - Little fixes to go.

Odis many bugs - work on it suspended for now.
obdeleven didn't have touch with it, they probably never add labels for it.



[Robert]

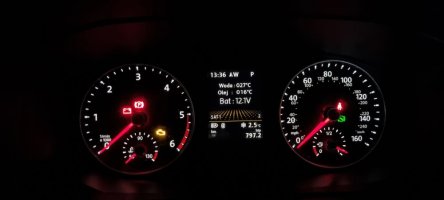

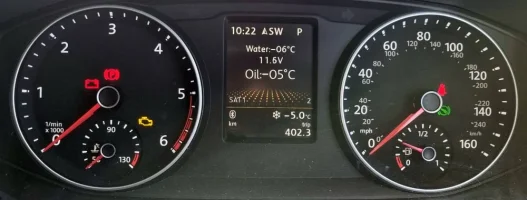

Being able to see coolant and engine oil temperatures below factory minimum of 50°C is a very cool feature but seeing subzero is mind blowing



[catfood12]

Being able to see coolant and engine oil temperatures below factory minimum of 50°C is a very cool feature but seeing subzero is mind blowing

View attachment 140785

Please stop the teasing.....



[Robert]

Sorry mate but there is still more functionality to be presented,
to name few:
FRONT ASSIST & SIDE ASSIST systems being active ---> indicated by dedicated GREEN LEDs.

Examples below.



[hanzz]

are these green leds already inside or do we have to solder them in?



[Daku]

There's OE place but need some additional wiring to my module.
Front assist led
Side assist led
Position light led

Front Assist can be controlled as OE w/o additional wiring.
Rest of menu are avaialble via CAN only



[Robert]

are these green leds already inside or do we have to solder them in?

LEDs and associated resistors have to be soldered in.



[Daku]

LEDs and associated resistors have to be soldered in.

Not all resistors
