REDARC BCDC1250D - 50A DC-DC Charger & MPPT Solar Controller (with Lifepo4 profile)
50A DC-DC
+ MPPT with 32V VOC input
+++++++++++++++++++++++++++
top of the range DC-DC charger. ( 1st one in the country)
smallest combined unit available at the time.
as new, was only fitted for testing then reboxed.

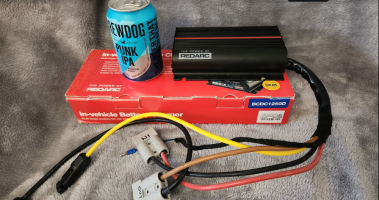

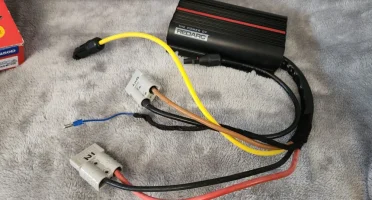

setup for plug and play with MC4 + SB50 Andersons - or just hard wire in with MIDI fuse blocks.
i was keeping it for when i got a camper, but now saving for a POP-TOP, - so for sale.
£350 + postage
+++++++++++++++++++++++++++
my testing here:
[Guide] DC-DC Charger (for leisure battery) -- How I Done It --
@Farnorthsurfer did you set the Dc-dc to lithium mode for the TN100 battery? Also have you got any more BM2 views showing more days? Yes the unit is set to Lithium profile. Easy enough to do when it was powered up. Yesterday was a flat line all day as it just sat on the drive. Back to work...
+++++++++++++++++++++++++++
.
This dual input charger from Australian power management specialists, REDARC, combines DC-DC charging and solar charging for your 12V leisure battery into one rugged, compact unit. Featuring REDARC's next generation of in-vehicle charging technology, it is the most advanced dual battery charger on the the market and has been designed to withstand the harsh environment of the Australian outback. Rigorous testing ensures that it will perform under extreme conditions where moisture, dust and vibration are present, meaning it won't let you down.
Suitable for use with standard or 'smart' Euro 5 / 6 / 6+ alternators, the BCDC1250D is the highest output charger in the BCDC range and combines a 50A DC-DC (battery-to-battery) charger together with a 750W MPPT solar charge controller, giving you the ability to charge either from your alternator, your solar panels, or both. It also has an additional charging stage known as SoftStart which has been engineered to handle more demanding applications.
This charger utilises Green Power Priority, so it will always use the maximum amount of solar power available, with the remainder of the rated output being provided by the vehicle's alternator. It will also isolate the leisure (auxiliary) battery from the vehicle starting battery when no charging input is present to prevent the vehicle battery being discharged by the domestic circuits.
The BCDC1250D supports all battery types (wet and sealed lead-acid, AGM, Gel, calcium and Lithium) and uses multi-stage charging technology to ensure 100% full charging, maximising the performance and life of your batteries. It is straightforward to install with a very simple setup and has a wide vehicle input voltage range (9-32V DC), allowing you to charge a 12V battery from either a 12V or 24V alternator input. This makes is suitable for use in vans and small motorhomes as well as in larger motorhomes, horseboxes and lorries.
Important - only to be used with solar panels that have an Open-Circuit Voltage (Voc) of 32V or less. Greater voltages may damage the unit and will void the warranty.
Recommended for lead-acid battery capacities of 250Ah and greater. May be used with smaller capacity lithium batteries depending on the battery's charge acceptance rate (please consult the manufacturer's documentation).
- Vehicle Input voltage range: 9-32V DC (suitable for 12V or 24V alternators)
- Solar input voltage range (unregulated): 9-32V DC (N.B. do not exceed - unit may be damaged)
- Output system voltage (nominal): 12V DC
- Maximum charging voltage: 15.3V DC
- Max. continuous current rating: 50A
- Recommended maximum solar input: 750W
- Recommended vehicle input fuse rating: 60A
- Recommended output fuse rating: 60A
- Minimum voltage of output battery: 4.2V DC
- Protection: Input over-voltage
- Battery type suitability: Wet/Sealed Lead Acid, AGM. Gel, Calcium, Lithium
- Standby current draw: <100mA
- Operating temperature range: -15 to +80°C
- Weight: 1kg
- Overall dimensions: 165 (L) x 120 (W) x 37 (H) mm
- Type approval: E-Mark
- Warranty: 2 years
Bar Code: 0616010988643
+++
BCDC Classic Under Bonnet 50A DC Battery Charger
The REDARC BCDC1250D is a 12V, 50A In-vehicle DC to DC Battery Charger designed to keep your auxiliary battery charged when driving or with portable solar panels when parked.
www.redarcelectronics.com
++++

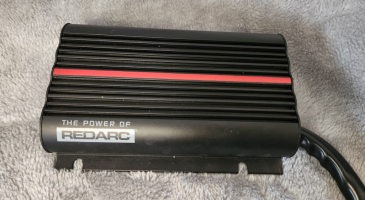

this is the unit:
