T6.1 led front driving/fog lights

[Jlo]

Have you got recent VCDS scan?
Or alternatively maybe you could post fault screenshot from your CARISTA?

I've no access to VCDS here unfortunately, I will run a Carista scan a bit later and get a screenshot for you, I haven't cleared the errors codes so i'm guessing (form my limited knowledge) they will still be there?
I was also getting a headlight error on We Connect but this has also disappeared.



[Jlo]

Have you got recent VCDS scan?
Or alternatively maybe you could post fault screenshot from your CARISTA?



[Dave Rainer]

View attachment 95966

Hi @Jlo just wondering if this resolved itself? I wanted to do the upgrade but was concerned seeing this and I don't have CARISTA to check if it goes wrong!!!



[Jlo]

Hi @Jlo just wondering if this resolved itself? I wanted to do the upgrade but was concerned seeing this and I don't have CARISTA to check if it goes wrong!!!

Well, I did but I think I might go back to halogens... I worked out the wiring was actually getting wet due to driving on flooded roads and the kit I bought didn't have full sealing causing intermittent faults.
Travelin lite actually sent me some new load resistors (the source of the issues) but these have simular sealing issues, I sent them an email yesterday detailing my concerns and to ask their opinions.

Will report back if you need an update!

And just to confirm, the fault doesn't actually cause any issues, the fog lamps still work as expected



[Taylorm]

Also interested to see what alternatives you use. I’m keen to change but can’t cope with any more warning messages.

It would need to be water tight as I’m sure a blast with the jet wash would probably be an issue as well.



[Jlo]

I change the bulbs to a different set of LEDs, I sent the Travelin Lite ones back for a refund (the were very good and refunded me immediately after they received them back)

The new ones I put in were H11 switchback LED bulbs, they have no errors and don't effect the DAB radio; they also have the added feature of changing to yellow!

Link here: LED H11 Switchback Fog Unit



[Thehawks]

Hi all,
Just wondering if anyone has retro fitted fogs on a T6.1 yet? I can’t seem to find any kits for the 6.1, I emailed Vanstyle and they said their T6 kit won’t work on the T6.1. I looked at the part number on a mates van for the fog switch. It’s 5G0941431AP, although that’s not a chrome one. I note all the ones on eBay etc start with 5ND.
ideally I’d like chrome with an auto sensor and the front fog function, just to give my lowly startline a bit of bling!! Anyone with knowledge, I’d be very grateful.



[T6180]

Osram Cool Blue 80w halogen H11 bulbs

I don't get the common condensation issues caused by LED fog light bulbs



[Thehawks]

They look spot on @T6180. Looks like your van is a factory Highline so you already had the fogs. I’m after some knowledge around a T6.1 retro fit kit. Thanks



[YWS22]

Hi, late to the party. Have we a recommend for either LED or normal bulbs for fog lights currently. I know this thread has a few recommends but we are a bit further into the future. Thanks in advance.



[MyNameIsMatt]

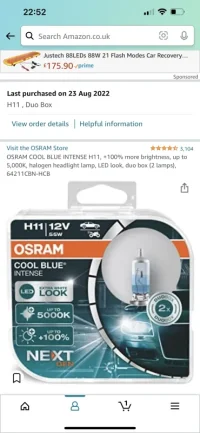

Thanks for the inspiration @T6180 - I have a Highline 6.1 with factory fit front fogs and LED headlights and couldn't believe the fogs are fitted with yellow halogens! I've just fitted Osram Cool Blue Boosts (£20 off Amazon) and they look much better. It's hard to get the exact light tone in the photos but I would say that the replacement Osrams are 95% close to the LEDs... may be a tiny bit duller than the whiteness of the LEDs but you would have to be really picky to notice.



[Long tall John]

I change the bulbs to a different set of LEDs, I sent the Travelin Lite ones back for a refund (the were very good and refunded me immediately after they received them back)

The new ones I put in were H11 switchback LED bulbs, they have no errors and don't effect the DAB radio; they also have the added feature of changing to yellow!

Link here: LED H11 Switchback Fog Unit

I’ve just been on the website looking and noticed this:

Other Information
Models may vary, if your vehicle uses the fogs as a corning light these units would not be suitable, ensure fitment is correct for vehicle before purchase.

Have you had any problems with yours?



[Tron6.1]

I had the Switchback LED’s in mine, no errors but unless you disable the cornering lights they change colour when turning left and right. Changed them to standard Autobeam LED’s and the work perfectly



[YWS22]

Thanks for the inspiration @T6180 - I have a Highline 6.1 with factory fit front fogs and LED headlights and couldn't believe the fogs are fitted with yellow halogens! I've just fitted Osram Cool Blue Boosts (£20 off Amazon) and they look much better. It's hard to get the exact light tone in the photos but I would say that the replacement Osrams are 95% close to the LEDs... may be a tiny bit duller than the whiteness of the LEDs but you would have to be really picky to notice.

View attachment 176057

View attachment 176058

View attachment 176059

View attachment 176060

View attachment 176061

View attachment 176063

View attachment 176064

View attachment 176065

View attachment 176066

View attachment 176067

View attachment 176068

View attachment 176069

View attachment 176070

I’ve fitted similar. Makes a big difference over standard. Wondering about LED though



[Jlo]

I’ve just been on the website looking and noticed this:

Other Information
Models may vary, if your vehicle uses the fogs as a corning light these units would not be suitable, ensure fitment is correct for vehicle before purchase.

Have you had any problems with yours?

Never had any problems, only very very occasionally switching to yellow after some slow manoeuvring in carparks



[Dotcom68]

Just changed one for you earlier.. Here is the difference between the LED and halogen fog bulbs..
View attachment 95616

Where are these led bulbs from please?



[Jlo]

Where are these led bulbs from please?

Autobeam



[Dotcom68]

I had the Switchback LED’s in mine, no errors but unless you disable the cornering lights they change colour when turning left and right. Changed them to standard Autobeam LED’s and the work perfectly

These ones?

LED H11 Fog Unit

True Brightness awaitsThe Autobeam LED Fog Unit, gives a significantly brighter light output, with a stronger beam pattern to better illuminate road markings...

autobeam.co.uk



[click83]

Thanks @T6180, just fitted the Osrams and they work and look great. Thanks a lot



[click83]

Front passenger side changed, headlights being swapped to THQ LED later this week
