T6.1 Ignition live fuse
- Thread starter Cali
- Start date
-
- Tags
- ignition live t6.1
That is with the side panel removed which reveals a bolt that can be used as earth or this one that I used to ground the dashcam.
Great, very helpful, I'll have a look. Which fuses did you piggyback for ignition live and live please? Do you have a pic of the box showing that too?
I only used ignition live as pictured. I think its the third bay from the left of the 10amp fuse you can see.
Did you piggyback the 7.5 fuse or use the empty slot to the left of it .
The spare slot
All done thanksThe spare slot
Shuttlejohn
Member
Hi forgive me if this is a stupid question, the spare slots have only one terminal and that is live, did you fit the piggyback into a slot with only one terminal?The spare slot
Yes, got mine in one of the spares

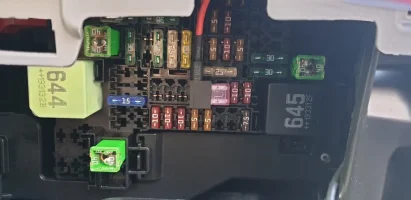

Hi, I tested a couple of the slots (shown in pic) and found them to be ignition live. I used the one to the left of the 7.5 fuse ( slot nu: F43). Dash cam working fine switching on/off with the ignition.
Shuttlejohn
Member
Hi, this is the fuseboard from my T6.1 Shuttle I am planning to hardwire my Viofo dashcam, I need a live and a switched live to run the cameras standby mode properly I am planning to use a spare switched live from the second from the bottom horizontal row, and a permanent live from the bottom row I was going to piggyback the 10 amp fuse on the bottom as there are no spare slots, it would be good to know what these fuses feed? are these "mini fuses".
Attachments
If you get ViP membership you then have access to the fuse diagrams!
Shuttlejohn
Member
Hi, I removed the side panel easy enough but not sure of how to remove the A-pillar trim, how did you remove that and the handle? without damaging the handle trim.
Attachments
Shuttlejohn
Member
There's a good thread on here, just Google a pillar removal t6forum
If you use a piggy back to take a feed from the ignition feed (middle row) on an empty slot, what’s the Max fuse rating so you reckon you should use? Obviously the cable would be matched to suit! Just thinking about using a feed from there to feed a mini fuse box under the divers seat that can power some USB ports, 12v socket, roof mounted screen etc. The piggy back I bought is rated for a 15 amp fuse which in my simple
Logics means I could take 3 x 5 Amp fuses feed off it via the mini fuse box, but if I wanted to uprate this what’s that Max you could go to from the central row of the main box?
Logics means I could take 3 x 5 Amp fuses feed off it via the mini fuse box, but if I wanted to uprate this what’s that Max you could go to from the central row of the main box?
Hi there. More than little idea how to this but as others looking for a switched ignition live for my ctek. I used a test meter and earthed it and then I touched the copper sections in blue with other side of test unit. Nothing reading on meter but I’m 100% sure I’m not doing it right. How do I find the slot or fuse yo piggy back? Thanks in advance
