Can I use MQB HBA mirror to T6 PQ25 ?

[Jonp40210]

The answer is...You can but it's not easy.
I told my experience if someone want to do this
I follow this thread instructions.
The adaptions set is possible only Odis ( maybe also VCP not tested) because VCDS can't set all channels. Odis adaptation set method is different.
I use Audi A3 mirror partnumber 81A857511G rimless mirror.
So I crossflash mirror software 0010 to 0003 and then I set all the adaptation channels correct values.
Many thanks to member mmi. He give me full HBA admap. Without this retrofit would not have been possible.
When I install the mirror a new problem occured.
Audi's mirror fastening is different so I had to exchange it from old mirror. You can see the difference from the picture. Lower one is from the Audi.
View attachment 184896

You seem to know what you are talking about so I thought I'd ask a question if you have time to respond I would muchly appreciate it

I have a 6.1 E transporter that I am trying to convert to TSI from a t6

Ecu 6.1 Delphi
Ecu tsi t6 Bosch

I am told "It's not possible" to make this work as on two different platforms

But I'm not a believer of "it will never work" as anything is possible

Or am I absolutely dreaming of this conversion now that I'm 1/4 the way in

Thank you



[Mirkonjus]

I would like to join the topic. I don't drive a T6. But a VW EOS on PQ35/PQ46 platform with standard high beam assistant (HBA). I recently converted to a frameless interior mirror. However, I had to remove the factory high beam assist in the course of this conversion and remove it from the gateway installation list accordingly (as well as set to not installed in the Adress 09). Now I ask myself whether it is possible to mount a said frameless HBA mirror on the mirror foot of the EOS HBA mirror and flash the mirror to make it work with the Eos?



[Jan_B]

Looks like I already have the right SW flashed on the mirror which is surprising because the mirror was declared as from Golf 7.
View attachment 185565
Would you be able to share the full admap please? My VAS5054A is on the way, expecting it next week (VCDS was useless as you stated - it didn't recognise the mirror to load the right ASAM/ODX).

Hey @eugene I swapped my mirror to the same one you have. Mine is showing ASAM AU33X.

I flashed it with 0010 and back to 0003 on my bench setup but it's still showing AU33X and not AU316.

Can you tell me how to fix this?



[eugene]

Hey @eugene I swapped my mirror to the same one you have. Mine is showing ASAM AU33X.

I flashed it with 0010 and back to 0003 on my bench setup but it's still showing AU33X and not AU316.
View attachment 318567
Can you tell me how to fix this?

Hi Jan,

I would ask this guy:

Обновление прошивки ассистента управления дальним светом (FLA) с 0003 на 0010

Приветствую всех! Ни для кого не секрет, что в интернет чатах и на форумах, можно встретить разных "мутных" типов торгующих прошивками и создающих мифы об их "целебных" свойствах…

www.drive2.com



[Jan_B]

Hi Jan,

I would ask this guy:

Обновление прошивки ассистента управления дальним светом (FLA) с 0003 на 0010

Приветствую всех! Ни для кого не секрет, что в интернет чатах и на форумах, можно встретить разных "мутных" типов торгующих прошивками и создающих мифы об их "целебных" свойствах…

www.drive2.com

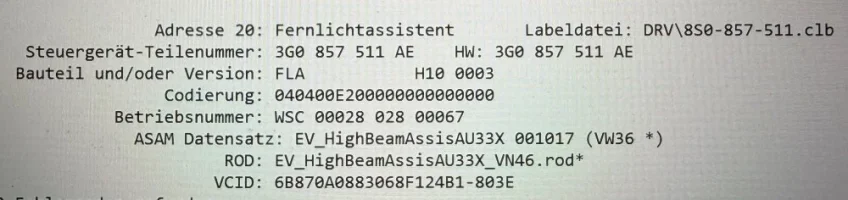

What does ODIS shows for your mirror after your flash?
AU33X or AU316?



[Jan_B]

Yesterday I installed everything and it seems to be working. Later test drive is still pending . Apparently, after flash from MQB to PQ ASAM data from the MQB mirror AU33X is still being displayed; the fault memory is still empty…



[Jan_B]

Yesterday I installed everything and it seems to be working. Later test drive is still pending . Apparently, after flash from MQB to PQ ASAM data from the MQB mirror AU33X is still being displayed; the fault memory is still empty…
View attachment 319603

Test drive is done everything works
