Un plugged wire

[FREDO]

I took my mirrors off my 2022 T6.1 to get them painted and when I re fitted them I can not find were this wire plugs into. I know its an earth wire and it comes from the R/H mirror into the door but I can not remember if it plugged into anything.
If anyone can help please



[Dellmassive]

Looks.like a coax from an antenna in the mirror?



[FREDO]

Looks.like a coax from an antenna in the mirror?

It goes to earth



[Dellmassive]

its a coax for VX67 Right Exterior Mirror, - thats what it looks like to me.

more info . . .

T6.1 - Radio/Sat Nav Wiring Diagram

Infotainment system/satellite navigation system wiring diagram including associated speakers/aerials etc VIP Membership is required to download this document

www.t6forum.com

VIP Membership

VIP Membership Information

www.t6forum.com



[Dellmassive]

can you post another pic showing the inside of the connector?



[Dav-Tec]

Definately a coax. It's just taped to an earth wire.



[Dellmassive]

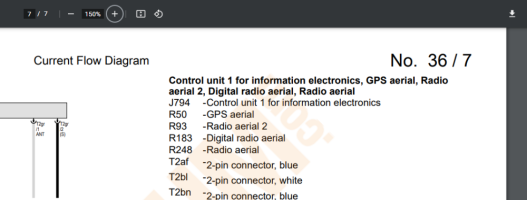

FWIW . . .

this is one of the main Ground points.


for the coax screen on the drivers door anyway.



[CJW]

Replaced my antenna recently. The black plug (which I assume you’re referring to) was one of the two antennas - plugs into this silver metal end that should have a matching black/purple socket. How lucky that I took a reference photo before pulling it all apart.



[FREDO]

Maybe because it is an Australian model and we don't have DAB or SOS it is not
connected.
I have looked everywhere and no other connectors for it to plug into.
Thanks



[CJW]

Makes sense. FWIW for future readers of the site with a similar issue, mine was bound up in the foam anti-rattle treatment, which I had to tear.
