Ride Height Survey

[CaliStu]

View attachment 8038 @CaliStu there you go, I'll stick my head under it and check the spring colours in a bit

Interesting! It looks like you have stiffer rear springs. 0YC rather than my 0YB



[Oggsmith]

@CaliStu there's the springs, I now feel the need to clean under my van



[CaliStu]

@Oggsmith thanks for that. Really useful



[G11hws]

kombi van and panel van details, hope these are the right ones



[andys]

Vehicle type: PV Campervan Euro 6 150
Load rating: T28
Ride height front: 384mm
Ride height rear: 400mm
Springs: Bilstein B14
Dampers: Bilstein B14
Wheel size: 17" Devonports
Tyre size: 215/60 R17
Manufacture: Continental
Normal load: Camper conversion with poptop, 1-2.5 occupants
Ride: Softer and more comfortable than standard. Rolling in corners reduced but still evident



[Daniel84]

Vehicle type: PV Campervan Euro 6 150
Load rating: T28
Ride height front: 384mm
Ride height rear: 400mm
Springs: Bilstein B14
Dampers: Bilstein B14
Wheel size: 17" Devonports
Tyre size: 215/60 R17
Manufacture: Continental
Normal load: Camper conversion with poptop, 1-2.5 occupants
Ride: Softer and more comfortable than standard. Rolling in corners reduced but still evident

Any side pictures? I will be lowering mine on standard 17" as we'll



[andys]

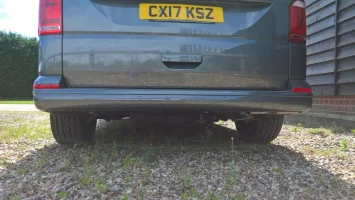

Before

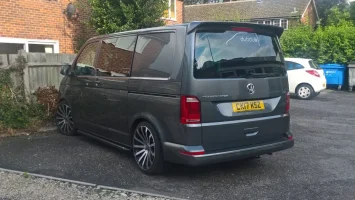

After



[Daniel84]

Thanks @andys



[blindboy]

@Montecha have you updated the ride height survey lately? im getting B14's in a few weeks...



[andys]

@Montecha have you updated the ride height survey lately? im getting B14's in a few weeks...

It's up to us to update it!



[blindboy]

It's up to us to update it!

How do I find the file to update it?



[Montecha]

Hi Chaps, I'll put the latest info into the file this W/E

There's not many B14 entries yet - might be some more to add in the coming weeks now that supplies of kits are coming through again.



[blindboy]

Vehicle type: T6 T32 180 DSG Kombi SWB
Load rating: T32
Ride height front: 385mm
Ride height rear: 400mm
Springs: Bilstein B14
Dampers: Bilstein B14
Wheel size: 17" Devonports
Tyre size: Factory
Manufacture: Factory
Normal load: empty
Ride: Firmer than standard, pot holes more noticable. Rolling in corners reduced but still evident



[Montecha]

Updated.



[dubdub]

Vehicle type: T6 T32 150 Kombi SWB
Load rating: T32
Ride height front: 370mm
Ride height rear: 370mm
Springs: Bilstein B14
Dampers: Bilstein B14
Wheel size: 20 Bola xtr
Tyre size: 255 x 35 x 20
Manufacture: budget?
Normal load: empty
Ride: outstanding much better than the factory fit plus it corners like its on rails



[Paul Holmes]

Having b14s fitted tomorrow will post then



[Paul Holmes]

Any pics ?



[blindboy]

@dubdub is that all the way down?



[dubdub]

No i think it can go lower but i didnt really want to have the wheel arch liners cut which i would need to go much lower



[dubdub]

Gotta love a low T6 rear
