OPS / Parking sensor / PDC retrofit not working

[andreis]

Hi,
I retrofitted front fog lights and Front&Rear OPS parking sensors on this van. Fog lights work ok, but parking sensors are not displayed on MIB unit, only a black image appears when you press parking buton or when you engage reverse gear. I checked all codings/adaptations, seems in order.
Find below the full scan.
Any help/advice is wellcomed!



[Lightrofit]

Coding in 5f and 10 need to be checked for OPS/Optical display. Sounds like RVC may have been coded by accident?



[andreis]

Coding in 5f and 10 need to be checked for OPS/Optical display. Sounds like RVC may have been coded by accident?

Thanks for your support!
I checked and let another colleague to double check, seems ok. 5F is a Mib. maybe is a coding here that needs to be changed, i checked this coding from another car and there it was working.

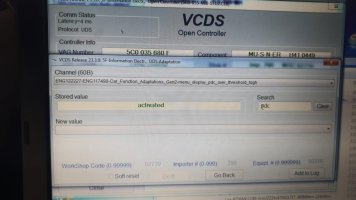

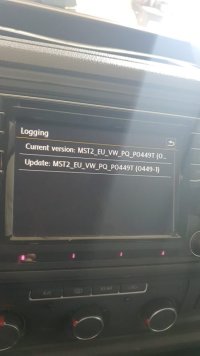

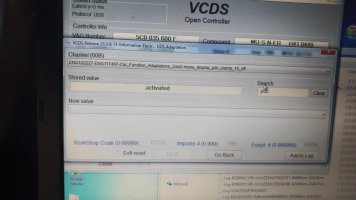

Please find attached the photos with codings/adaptations and what it looks like, when you put in reverse or push pdc button. The only Adaptation that I could not do, is channel 30. find in photos.



[mmi]

Please post adaptation map from 5F-Infotainment.

VCDS > Applications > Controller Channel Map​

The result will be in file adpmap-5F-... in folder C:\Ross-Tech\VCDS\Logs\



[andreis]

Please post adaptation map from 5F-Infotainment.

VCDS > Applications > Controller Channel Map​

The result will be in file adpmap-5F-... in folder C:\Ross-Tech\VCDS\Logs\

hi,
please find attached the admap



[mmi]

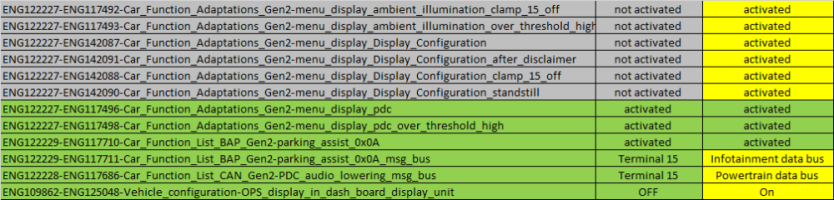

There are the following differences between factory setup (though with rear view camera) vs. yours (rightmost column).
First I would try to adapt the three last lines as here in green. The grey ones shouldn't relate to this - maybe?


Besides the above you could try the factory adaptation below in the 10-Park Assist itself.

The only Adaptation that I could not do, is channel 30. find in photos.

I'm afraid T6 can't do this - would need electric power steering.



[Robert]

I'm afraid T6 can't do this - would need electric power steering.

Hmmmm....
"T6 can't do this" - I think I need to start my new retrofit thread soon



[andreis]

There are the following differences between factory setup (though with rear view camera) vs. yours (rightmost column).
First I would try to adapt the three last lines as here in green. The grey ones shouldn't relate to this - maybe?
View attachment 191112

Besides the above you could try the factory adaptation below in the 10-Park Assist itself.
View attachment 191113


I'm afraid T6 can't do this - would need electric power steering.

hi,
many thanks for yor help.
View attachment 191113 - i tried, but no result
finally carsystems replied to me, i used what they recommended, but no result :

5F Coding recommended by carsystems:

Adaptation Channels

(11)-Car_Function_Adaptations_Gen2-menu_display_pdc change to Activated -IT WAS ALREADY

(13)-Car_Function_Adaptations_Gen2-menu_display_pdc_over_threshold_high change to Activated-IT WAS ALREADY

(19)-Car_Function_List_BAP_Gen2-parking_assist_0x0A change to Activated-IT WAS ALREADY

(20)-Car_Function_List_BAP_Gen2-parking_assist_0x0A_msg_bus change to Terminal 15-IT WAS ALREADY , I TRIED BEFORE WITH ALL OPTIONS

(5)-Car_Function_List_CAN_Gen2-PDC_audio_lowering change to Available- IT WAS ALREADY

(6)-Car_Function_List_CAN_Gen2-PDC_audio_lowering_msg_bus change to Suspension data bus - THIS WAS NOT USED BEFORE, BUT NO RESULT . ANYWAY, CAN BUS IS CONNECTED TO t73B PIN18, 19 ,WHICH I THINK ARE POWERTRAIN DATA BUS

i will try tomorrow with all datas from youe second column.
thanks again, I will keep you up-to-date.



[andreis]

hi,
many thanks for yor help.
View attachment 191113 - i tried, but no result
finally carsystems replied to me, i used what they recommended, but no result :

5F Coding recommended by carsystems:

Adaptation Channels

(11)-Car_Function_Adaptations_Gen2-menu_display_pdc change to Activated -IT WAS ALREADY

(13)-Car_Function_Adaptations_Gen2-menu_display_pdc_over_threshold_high change to Activated-IT WAS ALREADY

(19)-Car_Function_List_BAP_Gen2-parking_assist_0x0A change to Activated-IT WAS ALREADY

(20)-Car_Function_List_BAP_Gen2-parking_assist_0x0A_msg_bus change to Terminal 15-IT WAS ALREADY , I TRIED BEFORE WITH ALL OPTIONS

(5)-Car_Function_List_CAN_Gen2-PDC_audio_lowering change to Available- IT WAS ALREADY

(6)-Car_Function_List_CAN_Gen2-PDC_audio_lowering_msg_bus change to Suspension data bus - THIS WAS NOT USED BEFORE, BUT NO RESULT . ANYWAY, CAN BUS IS CONNECTED TO t73B PIN18, 19 ,WHICH I THINK ARE POWERTRAIN DATA BUS

i will try tomorrow with all datas from youe second column.
thanks again, I will keep you up-to-date.

Hi,
problem SOLVED.
I changed adaptations as in 1st column you sent to me, then changed coding in 5F 1st byte and problem solved.
I will make tomorrow a full scan for codings and adaptations for module 10 and module 5F, to serve as support if some body need.



[djmeeg]

Hi just following the thread. Did you ever post how you finally got it working as it would be helpful to know ?
