Alarm going off - Side door issue

goldeneye243

Member
T6 Pro
I have got a problem with my T6 where the side door doesn't always lock, the MFD flickers to tell me the door is open whilst driving and the alarm has gone off a few times.

Seems like it might all be related to the sensor that says wehter the door is open or closed...

Any thoughts as to what I can check to hopefully fix it?

Thanks!


The Van Cave

VW Bus Modification Specialist
Trade Member
T6 Legend
Sounds like the locking mechanism is faulty, it's a fairly common fault and is often only intermittent. Is your van still under warranty? If so VW should replace it. Have you got Carista or VCDS to give you a fault code, that way we can confirm if that is definitely the problem.


Pauly

Senior Member
VCDS User
Admin
Moderator
The door open/close signal varies by model
If you have a highline (factory fitted alarm) then the signal is generated by the central locking motor inside the door, this signal is passed through the contacts on the leading edge of the door into the contacts on the B pillar then forwards to the dash
If you have a trendline or startline (no factory fitted alarm) then the signal is generated by a conventional door pin switch triggered by the trailing edge of the door against the C pillar

The most common fault would be either the contacts on the front edge are dirty and need cleaning or the pin switch at the rear is not contacting with the door enough to get a positive signal and may need adjusting


goldeneye243

Member
T6 Pro
The door open/close signal varies by model
If you have a highline (factory fitted alarm) then the signal is generated by the central locking motor inside the door, this signal is passed through the contacts on the leading edge of the door into the contacts on the B pillar then forwards to the dash
If you have a trendline or startline (no factory fitted alarm) then the signal is generated by a conventional door pin switch triggered by the trailing edge of the door against the C pillar

The most common fault would be either the contacts on the front edge are dirty and need cleaning or the pin switch at the rear is not contacting with the door enough to get a positive signal and may need adjusting


It is a Highline Kombi. I will have another look at the contacts thanks


goldeneye243

Member
T6 Pro
The contacts look pretty clean. The immobiliser stuff is Ghost and I have changed the head unit...

VCDS scan -

Friday,17,April,2020,18:34:20:50838
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.0.1 (x64) HEX-V2 CB: 0.4508.4
Data version: 20200331 DS317.0
www.Ross-Tech.com



01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
5F-Information Electr. -- Status: Cannot be reached 1100
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 KL HW: 04L 907 445
Component: R4 2.0l TDI H02 3802
Revision: 23002001
Coding: 00194014433401090000
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ECM20TDI03004L906056KL 004003
ROD: EV_ECM20TDI03004L906056JS_004.rod
VCID: 015F8490518563635CC-8054

No fault code found.
Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 P HW: 7E0 907 379 M
Component: ESC H06 0133
Revision: 00000000 Serial number: 43516000000005
Coding: 307E4098656384820C7C027DA68521D3790000
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3FDB426867F1D5936A8-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 07011713470019
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EA5FF6C207B1C9B21E-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E0 907 047 AJ HW: 7E0 907 047 AJ
Component: Climatic-T5 H22 0708
Revision: 00001002
Coding: 0000000003
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 72BDDB5C642348FB556-8026

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 013170062
Coding: B8FC793A0A73341193284F746CEB9EF40F84710F60CC6D70320400230840
Shop #: WSC 02737 022 236768
VCID: 2A0D033C8CF3403B2D6-807E

Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 060117 04 42 0106
Coding: 0228EE

Subsystem 2 - Part No SW: 7E0 959 801 Q HW: 7E0 959 801 Q Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 0653
Serial number: KU0KU010011770106092
Coding: 1400B1

Subsystem 3 - Part No SW: 7E0 959 802 Q HW: 7E0 959 802 Q Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 003 0653
Serial number: KU0KU010011770106737
Coding: 0400A1

Subsystem 4 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000

Subsystem 5 - Part No: 1K0 951 605 F
Component: LIN BACKUP HO H01 0008
Coding: 000000

Subsystem 6 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000

Subsystem 7 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29160003445330056515
Coding: B0FFFF

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 T HW: 1Q0 919 475
Component: PARKHILFE 4K H03 0212
Revision: -------- Serial number: 32961635201738
Coding: 118008
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis4K 001013
ROD: EV_VW75XParkAssis4K_001_VN75.rod
VCID: 43D34E980B19B1730E0-8016

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 G HW: 7E0 959 655 G
Component: VW10Airbag021 H08 0018
Revision: -------- Serial number: 003V3003GJ1X
Coding: 000000000000000000000000000000003231
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3A2D337C7CD3F0BB5D6-806E

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 S HW: 7E0 920 970 S
Component: KOMBI H03 1104
Serial number: 00000000000000
Coding: 740B010300
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW31.rod
VCID: 3A2D337C7CD3F0BB5D6-806E

1 Fault Found:
13654544 - Databus
U1121 00 [009] - Missing Message
[Steuergerät für Telefon keine Kommunikation]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 6
Reset counter: 132
Mileage: 49784 km
Date: 2020.04.15
Time: 13:37:58


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 042305
Shop #: WSC 02737 022 236768
VCID: 6889B934527FB22BFB2-803C

1 Fault Found:
03158 - Control Module for Information Electronics 1 (J794)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 132
Mileage: 49784 km
Time Indication: 0
Date: 2020.04.15
Time: 13:38:02


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 1104
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6A8DC33C4CF3803BED6-803E

1 Fault Found:
9456128 - Engine Control Module (ECM) not authorized
B104A 00 [009] - -
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 67
Mileage: 49784 km
Date: 2020.04.15
Time: 13:38:15


-------------------------------------------------------------------------------
Address 5F: Information Electr.
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090
Component: Batt.regelung H81 0744
Serial number: 0982 013170062
Coding: 330B7A73
Shop #: WSC 65413 002 1048576
VCID: 6889B934527FB22BFB2-803C

Subsystem 1 - Part No SW: 7E0 915 181 K HW: 7E0 915 181 K
Component: J367-BDMConti H03 1050
Serial number: 75410903001701102552

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 H HW: 1K0 907 383 G
Component: Anhaenger H12 0130
Revision: 3B001001 Serial number: 00000427276511
Coding: 410D000103000000
Shop #: WSC 02739 790 00000
VCID: 323D1B5CA42308FB956-8066

No fault code found.

End----(Elapsed Time: 01:46, VBatt start/end: 11.6V/11.6V. VIgn 11.7V)-----


goldeneye243

Member
T6 Pro
In a previous scan a couple of days ago

Wednesday,15,April,2020,12:37:02:50838
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 20.4.0.1 (x64) HEX-V2 CB: 0.4508.4
Data version: 20200331 DS317.0
www.Ross-Tech.com


01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: Malfunction 0010
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
25-Immobilizer -- Status: Malfunction 0010
56-Radio -- Status: Malfunction 0010
5F-Information Electr. -- Status: Cannot be reached 1100
61-Battery Regul. -- Status: Malfunction 0010
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 KL HW: 04L 907 445
Component: R4 2.0l TDI H02 3802
Revision: 23002001
Coding: 00194014433401090000
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ECM20TDI03004L906056KL 004003
ROD: EV_ECM20TDI03004L906056JS_004.rod
VCID: 015F8490518563635CC-8054

3 Faults Found:
25577 - Engine Start Blocked by Immobilizer
P1570 00 [096] - -
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 2
Mileage: 49013 km
Date: 2034.01.31
Time: 18:45:46

Engine speed: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 63 °C
Intake air temperature: 11 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 12.054 V
Unlearning counter according OBD: 9
Immobilizer Snapshot 001 Byte 1: A2
Immobilizer Snapshot 001 Byte 2: FF
Immobilizer Snapshot 001 Byte 3: D1
Immobilizer Snapshot 001 Byte 4: 1A
Immobilizer Snapshot 001 Byte 5: 10
Immobilizer Snapshot 001 Byte 6: 00
Immobilizer Snapshot 002 Byte 1: 00
Immobilizer Snapshot 002 Byte 2: 00
Immobilizer Snapshot 002 Byte 3: 00
Immobilizer Snapshot 002 Byte 4: 00
Immobilizer Snapshot 002 Byte 5: 00
Immobilizer Snapshot 002 Byte 6: 00
Immobilizer Snapshot 004 Byte 1: 00
Immobilizer Snapshot 004 Byte 2: 00
Immobilizer Snapshot 004 Byte 3: 00

33262 - Reductant System Performance Bank 1
P204F 00 [104] - Malfunction
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 2
Mileage: 49489 km
Date: 2035.01.28
Time: 09:15:22

Engine speed: 1663.00 /min
Normed load value: 51.4 %
Vehicle speed: 93 km/h
Coolant temperature: 92 °C
Intake air temperature: 6 °C
Ambient air pressure: 1020 mbar
Voltage terminal 30: 13.007 V
Unlearning counter according OBD: 40
Simulated particle filter surface temperature: 298.2 °C
Reducing agent fill level sensor: act. value: 76 mm
Sensor for reducing agent tank temperature: temperature: 5.0 °C
Calculated NOx concentration behind turbocharger: 0 ppm
NOx sens.dwnstrm.SCR cat conv: NOx conc.: 163 ppm
Reducing agent quality sensor: urea concentration: 0.00 %

31103 - SCR NOx Catalyst Bank 1
P20EE 00 [232] - Efficiency too Low
MIL ON - Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 7
Mileage: 49457 km
Date: 2035.01.27
Time: 15:55:41

Engine speed: 1728.00 /min
Normed load value: 53.3 %
Vehicle speed: 97 km/h
Coolant temperature: 96 °C
Intake air temperature: 9 °C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 12.765 V
Unlearning counter according OBD: 40
Air mass at air mass meter 1: 216.0 kg/h
Extern.temp.sens.1 bank 1: raw value: 8.5 °C
Mass airflow sensor 1 bank 1 airflow: raw value: 1060.0 mg/stroke
Throttl.valve adapt. 1 bank 1: posit feedback - Act.value: 46.90 %
NOx sensor before SCR cat conv: offset correction factor: 0 ppm
NOx sensor after SCR cat conv: offset correction factor: 238 ppm
Reducing agent quality sensor: urea concentration: 0.00 %
Reducing agent quality sensor: raw temperature value: 0.0 °C

Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 P HW: 7E0 907 379 M
Component: ESC H06 0133
Revision: 00000000 Serial number: 43516000000005
Coding: 307E4098656384820C7C027DA68521D3790000
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3FDB426867F1D5936A8-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 07011713470019
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EA5FF6C207B1C9B21E-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E0 907 047 AJ HW: 7E0 907 047 AJ
Component: Climatic-T5 H22 0708
Revision: 00001002
Coding: 0000000003
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 72BDDB5C642348FB556-8026

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 013170062
Coding: A0FC793A0A73341193284F746CEB9EF40F84710F60CC6D60320400230840
Shop #: WSC 02737 022 236768
VCID: 2A0D033C8CF3403B2D6-807E

Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 060117 04 42 0106
Coding: 0228EE

Subsystem 2 - Part No SW: 7E0 959 801 Q HW: 7E0 959 801 Q Labels: 7E0-959-80X-V2.CLB
Component: J386__TSG_FT 003 0653
Serial number: KU0KU010011770106092
Coding: 1400B1

Subsystem 3 - Part No SW: 7E0 959 802 Q HW: 7E0 959 802 Q Labels: 7E0-959-80X-V2.CLB
Component: J387__TSG_BT 003 0653
Serial number: KU0KU010011770106737
Coding: 0400A1

Subsystem 4 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000

Subsystem 5 - Part No: 1K0 951 605 F
Component: LIN BACKUP HO H01 0008
Coding: 000000

Subsystem 6 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000

Subsystem 7 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29160003445330056515
Coding: B0FFFF

1 Fault Found:
03303 - Response Closing Status of Rear Left Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 30
Reset counter: 171
Mileage: 48702 km
Time Indication: 0
Date: 2020.02.08
Time: 13:32:45


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 T HW: 1Q0 919 475
Component: PARKHILFE 4K H03 0212
Revision: -------- Serial number: 32961635201738
Coding: 118008
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis4K 001013
ROD: EV_VW75XParkAssis4K_001_VN75.rod
VCID: 43D34E980B19B1730E0-8016

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 G HW: 7E0 959 655 G
Component: VW10Airbag021 H08 0018
Revision: -------- Serial number: 003V3003GJ1X
Coding: 000000000000000000000000000000003231
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3A2D337C7CD3F0BB5D6-806E

1 Fault Found:
12850432 - Databus
U1122 00 [008] - Implausible Message
[Bremse8 DLC Error]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 6
Reset counter: 172
Mileage: 48929 km
Date: 2020.02.21
Time: 16:30:17


-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 S HW: 7E0 920 970 S
Component: KOMBI H03 1104
Serial number: 00000000000000
Coding: 740B010300
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW31.rod
VCID: 3A2D337C7CD3F0BB5D6-806E

1 Fault Found:
13654544 - Databus
U1121 00 [009] - Missing Message
[Steuergerät für Telefon keine Kommunikation]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 117
Reset counter: 132
Mileage: 48702 km
Date: 2020.02.08
Time: 11:23:36


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 042305
Shop #: WSC 02737 022 236768
VCID: 6889B934527FB22BFB2-803C

1 Fault Found:
03158 - Control Module for Information Electronics 1 (J794)
004 - No Signal/Communication
Freeze Frame:
Fault Status: 01100100
Fault Priority: 2
Fault Frequency: 1
Reset counter: 91
Mileage: 48702 km
Time Indication: 0
Date: 2020.02.08
Time: 11:22:47


-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 1104
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6A8DC33C4CF3803BED6-803E

1 Fault Found:
9456128 - Engine Control Module (ECM) not authorized
B104A 00 [009] - -
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 1
Fault Frequency: 254
Mileage: 0 km
Date: 2020.02.08
Time: 13:51:49


-------------------------------------------------------------------------------
Address 5F: Information Electr.
Cannot be reached

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090
Component: Batt.regelung H81 0744
Serial number: 0982 013170062
Coding: 330B7A73
Shop #: WSC 65413 002 1048576
VCID: 6889B934527FB22BFB2-803C

Subsystem 1 - Part No SW: 7E0 915 181 K HW: 7E0 915 181 K
Component: J367-BDMConti H03 1050
Serial number: 75410903001701102552

1 Fault Found:
02256 - Quiescent Current
001 - Upper Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100001
Fault Priority: 7
Fault Frequency: 6
Reset counter: 160
Mileage: 0 km
Time Indication: 0
Date: 2020.02.09
Time: 02:02:42


-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb
Part No SW: 1K0 907 383 H HW: 1K0 907 383 G
Component: Anhaenger H12 0130
Revision: 3B001001 Serial number: 00000427276511
Coding: 410D000103000000
Shop #: WSC 02739 790 00000
VCID: 323D1B5CA42308FB956-8066

No fault code found.

End----------(Elapsed Time: 01:48, VBatt start/end: 12.2V/12.1V)-----------


goldeneye243

Member
T6 Pro
Sounds like the locking mechanism is faulty, it's a fairly common fault and is often only intermittent. Is your van still under warranty? If so VW should replace it. Have you got Carista or VCDS to give you a fault code, that way we can confirm if that is definitely the problem.
@ChrisR any chance you could look at the VCDS please?

Is it worth calling VW assist?


Loz

California 204 DSG 4Motion MY17
VCDS User
Admin
Moderator
VIP Member
Sounds like the microswitch in the latch is intermittent, you could try some cleaner sprayed into the catch.
otherwise you need to get the lock out.
VW Assist wouldn’t be able to anything apart from prioritise a booking at the dealer.
if its still under warranty just push for the dealer to replace the lock.


mmi

Senior Expert
VCDS User
Moderator
VIP Member
T6 Legend

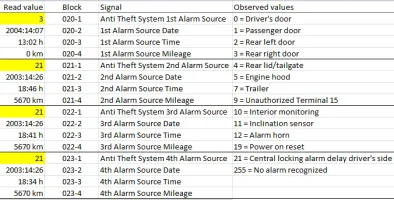

To verify the cause of the alarm you could withdraw alarm log - found in BCM (09 - Central elect.) measurement blocks 020 - 023 (under Advanced Meas. Values). At its best even the time stamps would match. However, in the fault log (Auto-Scan) only the first incidence is recorded.

Or extract full blockmap data file (measurement blocks/measuring values) see how-to ---> Block map/Adaptation map

Alarm source decodes on the rightmost column. The date decoding is a bit strange).
The alarms above were triggered by unlocking a door using "mechanical" key - just for testing.

Interestingly I have got exactly the same fault of "Response Closing Status of Rear Left Door" quite a few times and actually from both left and right rear doors but alarm has never gone off. Certainly could be that the alarm was not armed at the time.

Last edited:

goldeneye243

Member
T6 Pro
I will try and take another scan later. In the mean time is there a way to lock the van without setting the alarm?


Jamie2.0

Joiner
VIP Member
T6 Guru
We had a similar issue a while back. Tracked it down to this not connecting properly. The alarm would sound when going round corners. The internal bit had cracked which prevented it from floating in its housing.

Top
