What makes the t5.1 cluster lights ,
- Thread starter Power ut
- Start date
Not sure why but in my wiring diagrams the chapter for 5.1 tail lights say drop side ??
Anyway i imagine the wiring is the same, just check the wire colours match
Left
1 - black/red - brake
2 - green/black - reverse
3 - brown - negative
4 - black/white - indicator
5 - grey white - foglight
6 - grey/black - tail light
Right
1 - black/red - brake
2 - green/black - reverse
3 - brown - negative
4 - black/green - indicator (black/yellow with factory fitted towbar)
5 - grey/white - foglight
6 - grey/red - tail light
Anyway i imagine the wiring is the same, just check the wire colours match
Left
1 - black/red - brake
2 - green/black - reverse
3 - brown - negative
4 - black/white - indicator
5 - grey white - foglight
6 - grey/black - tail light
Right
1 - black/red - brake
2 - green/black - reverse
3 - brown - negative
4 - black/green - indicator (black/yellow with factory fitted towbar)
5 - grey/white - foglight
6 - grey/red - tail light
the lights wire back to the J519 BCM module,
under the dash clock , above the peddles.

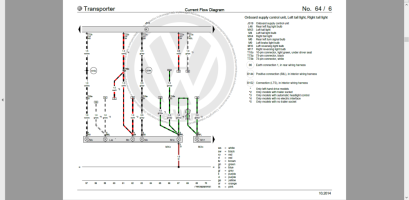

its shown on the schematic above.
post a few pics of the van and rear lights.
is it a T5.1?
................

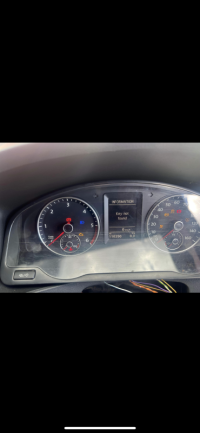

you have two different clocks shown there, one with 89k on it, and one with 100k and one shows imob issues as no key.
..............
so what are you trying to do?
+++++++++++++++++++++

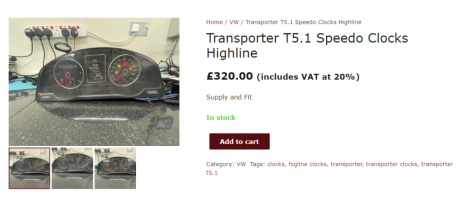

example T5.1 HL clocks
under the dash clock , above the peddles.
its shown on the schematic above.
post a few pics of the van and rear lights.
is it a T5.1?
................
you have two different clocks shown there, one with 89k on it, and one with 100k and one shows imob issues as no key.
..............
so what are you trying to do?
+++++++++++++++++++++
example T5.1 HL clocks
Both same clocks I adjusted mileages and immo to match the oringal cluster ( which was old style t5 cluster z( not not needing rear brake lights I meant what powers the cluster lights up behind the dails and needles
Ambient light circuit.
Led. Pwm driver from the BCM with dash dimmer control.
Led. Pwm driver from the BCM with dash dimmer control.
Thankyou no wonder they won’t work as I’ve audi engine set up I had to use audi canbus , , I’ll have to think of another way to sort them buggers
Is there a higher res version of these diagrams? I can't make out the details. (Trying to figure out an issue with my RH rear turn signal) These diagrams might help with my fault finding. Thanks.
They are all in the download section
Thanks (I have looked, several times) but cannot find them. What am I doing wrong. Many of the links say "VIP Membership is required" - I upgraded yesterday. Still confused.They are all in the download section
Hi Pauly
I was looking to download the tail light wiring diagrams that I could see on this thread (but I cannot find them in the downloads section)
I am looking to diagnose an issue with my T5.1 taillights - where the RHS rear turn signal does not work. (It works as a hazard light) as per -> This Thread
Apologies for hijacking this thread - is the only place I found (what appears to be, T5 rear light current flow diagrams) I can't zoom in far enough to read them properly.
Bear with me please. I am new to this forum, and pretty new to my van. Would love to be able to work this all out myself. Thanks
Thanks. I'll report back if I have any success
