T6 gxd 2.0 TDI no start no fault codes

[Simywal]

Hello I have a problem with a T6 CXG 2.0TDI

multi-v belt broken and caught in the timing belt
I replaced:
timing belt
camshaft module
multi v tensioner
multi v
starter
everything completed started and came on for 5 seconds and then went off.
I thought it was air so I restarted long
And bleed whit Vcds .
sometimes I hear 1 cylinder
Timing checked again and looks good.
380/400 bar under starting on the rail
I removed the injectors and connected upside down and yes sometimes cylinder 1 does inject but the other 3 are not.

With start pilot it starts immediately but but shots of when i stop spraying

no error codes anyone have any ideas?

sorry for my bad english/translation



[Dellmassive]

Can you post a vcds scan below?



[Simywal]

yes I will tomorrow



[Dellmassive]

Looking like a fuel problem,

As you say it turns when spraying starter fluid.

So we need to look at cam and crank, mechanical timing.

And injection timing.



[Simywal]

Donderdag,11,April,2024,08:13:50:16365
VCDS -- VAG/VAS Emulator onder Windows Loopt op Windows 10 x64
VCDS Versie: PRI 23.3.1.0  HEX-V2 CB: 0.4631.4
Data versie: 20230627 DS346.2
www.Ross-Tech.com


Chassisnummer: WV1ZZZ7HZJX028404   Kenteken:


Chassis Type: 7H-VN75 (XXX)
Scan: 01 03 04 08 09 10 13 15 17 19 25 56 61 69 0B

Chassisnummer: WV1ZZZ7HZJX028404   KM-stand: 294870km

01-Motor -- Status: Functioneert niet 0010
03-ABS Remmen -- Status: Functioneert niet 0010
04-Stuurhoeksensor -- Status: OK 0000
08-Airco/Verwarming -- Status: OK 0000
09-Cent. Elect. -- Status: Functioneert niet 0010
10-Park/Stuurassist -- Status: OK 0000
13-Auto Afst. Reg. -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instrumenten -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Startblokkering -- Status: OK 0000
56-Radio -- Status: Functioneert niet 0010
61-Batterij Regul. -- Status: Functioneert niet 0010
69-Aanhanger -- Status: OK 0000
-------------------------------------------------------------------------------
Adres 01: Motor (2D2D2-CXGB)       Labels:. 04L-907-309-V2.clb
   Onderdeelnr. SW: 04L 906 056 KA    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 6163
   Revisie: 23002001
   Codering: 00114014434401090000
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KA 004012
   ROD: EV_ECM20TDI03004L906056KA.rod
   VCID: 76B5E6C56844C36A257-8022
   VINID: 9E606AAAA1D8A9AA00088100108FB07E7E

5 foutcodes gevonden:
29331 - Aansturing voor verwarming 2 van reductiemiddel
          P20BD 00 [035] - Onderbreking
          Niet Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    KM-stand: 294871 km
                    Datum: 2068.01.11
                    Tijd: 17:52:08

                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: 13 °C
                    Aanzuigluchttemperatuur: 5 °C
                    Buitenluchtdruk: 1020 mbar
                    Spanning contact 30: 12.062 V
                    Verleerteller na OBD: 40
                    Buitentemperatuursensor 1 cil.rij 1: basiswaarde: 13.5 °C
                    Uitlaatgastemperatuur cilinderrij 1: S1/S2/S3/S4:  / ---/---/---/9 °C
                    Sensor tanktemperatuur reductiemiddel: temperatuur: 13.1 °C
                    Reductiemiddel vulpeilsensor: werk. waarde: 100 mm
                    Sensor reductiemiddelvoorraad: ureumconcentratie: 0.00 %
                    Reductiemiddelkwaliteitssensor: temp. basiswaarde: 0.0 °C
                    NOx-sensor na SCR-kat: offset correctiefactor: 0 ppm

29330 - Aansturing voor verwarming 1 van reductiemiddel
          P20B9 00 [035] - Onderbreking
          Niet Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    KM-stand: 294871 km
                    Datum: 2068.01.11
                    Tijd: 17:52:07

                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: 13 °C
                    Aanzuigluchttemperatuur: 5 °C
                    Buitenluchtdruk: 1020 mbar
                    Spanning contact 30: 12.039 V
                    Verleerteller na OBD: 40
                    Buitentemperatuursensor 1 cil.rij 1: basiswaarde: 13.5 °C
                    Uitlaatgastemperatuur cilinderrij 1: S1/S2/S3/S4:  / ---/---/---/9 °C
                    Sensor tanktemperatuur reductiemiddel: temperatuur: 13.1 °C
                    Reductiemiddel vulpeilsensor: werk. waarde: 100 mm
                    Sensor reductiemiddelvoorraad: ureumconcentratie: 0.00 %
                    Reductiemiddelkwaliteitssensor: temp. basiswaarde: 0.0 °C
                    NOx-sensor na SCR-kat: offset correctiefactor: 0 ppm

27277 - Voedingsspanning
          P0562 00 [035] - Spanning te laag
          Niet Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    KM-stand: 294871 km
                    Datum: 2068.01.11
                    Tijd: 17:52:06

                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: 13 °C
                    Aanzuigluchttemperatuur: 5 °C
                    Buitenluchtdruk: 1020 mbar
                    Spanning contact 30: 12.054 V
                    Verleerteller na OBD: 40
                    Luchtmassa bij luchtmassameter 1: 0.0 kg/h
                    Genormaliseerde luchtstroomverhouding: 1.000 counts
                    Uitlaatgasterugvoerklep 1 cil.rij 1: pos.bev. - werk. waarde: 0.04 %
                    Gaskleplichter 1 cil.rij 1: pos.bev. - werk. waarde: 0.00 %
                    Laaddruk voorgeschreven waarde: 0.005 bar
                    Absolute aanzuigdruk: 102 kPa abs
                    Gemiddelde inspuithoev.: 0 mg/stroke
                    Index van actuele functie motor: 4
                    Index van volgende gevraagde functie motor: 4
                    Index van doelfunctie motor: 4

23790 - Temp.sensor v. laadluchtkoeler cilinderrij 1
          P007D 00 [163] - kortsluiting met plus
          MIL AAN - Niet Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    KM-stand: 294871 km
                    Datum: 2068.01.11
                    Tijd: 17:52:07

                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: 13 °C
                    Aanzuigluchttemperatuur: 5 °C
                    Buitenluchtdruk: 1020 mbar
                    Spanning contact 30: 12.046 V
                    Verleerteller na OBD: 40
                    Uitlaatgasterugvoer temp.sensor 1 cil.rij 1: basiswaarde: 8.7 °C
                    Koelvloeistoftemperatuur aan motoruitgang: berekend: 13.5 °C
                    Roetfilteringang temperatuursensor 1 cil.rij 1: basiswaarde: 7.0 °C
                    Turbo 1 turbine-uitgang temp.sensor 1 cil.rij 1: basiswaarde: 8.5 °C
                    Buitentemperatuursensor 1 cil.rij 1: basiswaarde: 13.5 °C
                    Turbo 1 turbine-ingang temp.sensor 1 cil.rij 1: basiswaarde: 75.0 °C
                    Roetfilteruitgang temperatuursensor 1 cilinderrij 1: basiswaarde: 8.5 °C
                    Laadluchtkoeleruitgang temp.voeler 1 cil.rij 1: ruwe waarde: -40.0 °C
                    Turbo 1 compr.uitgang temp.sensor 1 cil.rij 1: basiswaarde: -40.0 °C
                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: -40 °C
                    Aanzuigluchttemperatuur: -40 °C
                    Buitenluchtdruk: 0 mbar
                    Spanning contact 30: 0.000 V

23792 - Temp.sensor v. laadluchtkoeler cilinderrij 2
          P00A3 00 [163] - kortsluiting met plus
          MIL AAN - Niet Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    KM-stand: 294871 km
                    Datum: 2068.01.11
                    Tijd: 17:52:07

                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: 13 °C
                    Aanzuigluchttemperatuur: 5 °C
                    Buitenluchtdruk: 1020 mbar
                    Spanning contact 30: 12.046 V
                    Verleerteller na OBD: 40
                    Uitlaatgasterugvoer temp.sensor 1 cil.rij 1: basiswaarde: 8.7 °C
                    Koelvloeistoftemperatuur aan motoruitgang: berekend: 13.5 °C
                    Roetfilteringang temperatuursensor 1 cil.rij 1: basiswaarde: 7.0 °C
                    Turbo 1 turbine-uitgang temp.sensor 1 cil.rij 1: basiswaarde: 8.5 °C
                    Buitentemperatuursensor 1 cil.rij 1: basiswaarde: 13.5 °C
                    Turbo 1 turbine-ingang temp.sensor 1 cil.rij 1: basiswaarde: 75.0 °C
                    Roetfilteruitgang temperatuursensor 1 cilinderrij 1: basiswaarde: 8.5 °C
                    Laadluchtkoeleruitgang temp.voeler 1 cil.rij 1: ruwe waarde: -40.0 °C
                    Turbo 1 compr.uitgang temp.sensor 1 cil.rij 1: basiswaarde: -40.0 °C
                    Motortoerental: 0.00 /min
                    Genorm. bel.waarde: 0.0 %
                    Rijsnelheid: 0 km/h
                    Koelvloeistoftemperatuur: -40 °C
                    Aanzuigluchttemperatuur: -40 °C
                    Buitenluchtdruk: 0 mbar
                    Spanning contact 30: 0.000 V

Gereedheid: N/A

-------------------------------------------------------------------------------
Adres 03: ABS Remmen (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Onderdeelnr. SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H06 0133
   Revisie: 00000000    Serienummer: 60798000000786
   Codering: 517E4098256484868A790276A48621E678F500
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3FDB43E107FE4222361-806A

1 Fout Gevonden:
0128 - Beperkte werking
          U1400 00 [008] - door onderspanning
          [undervoltage]
          Geregeld - Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 1
                    Fout Frequentie: 1
                    Reset Teller: 109
                    KM-stand: 294871 km
                    Datum: 2024.04.11
                    Tijd: 01:23:29


-------------------------------------------------------------------------------
Adres 04: Stuurhoeksensor (G085)       Labels:* 6R0-959-654.clb
   Onderdeelnr. SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serienummer: 05031813470545
   Codering: 01
   Dealer #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5FEE540748B2A7D7-802A

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 08: Airco/Verwarming (J301)       Labels:| 7E5-907-047.clb
   Onderdeelnr. SW: 7E0 907 047 AJ    HW: 7E0 907 047 AJ
   Component: Climatic-T5   H22 0708
   Revisie: 00001002
   Codering: 0000000003
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 72BDDAD5042CDF4A09F-8026

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Onderdeelnr. SW: 7E0 937 090 C    HW: 7E0 937 090 C
   Component: BCM PQ25 Max4 H82 0752
   Revisie: B9082001    Serienummer: 4000 075180256
   Codering: 22A8393A0A61341293284F746CEB8EF40F84690F60CC6960330400A30840
   Dealer #: WSC 35110 377 08192
   VCID: 2B0307B1E306CE828A9-807E

   Subsysteem 1 - Onderdeelnr.: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 190318 04  47  0106
   Codering: 0228EE

   Subsysteem 2 - Onderdeelnr. SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  004 0653
   Serienummer: KU0KU014031880732133
   Codering: 0400A0

   Subsysteem 3 - Onderdeelnr. SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  004 0653
   Serienummer: KU0KU014031880730977
   Codering: 1400A0

   Subsysteem 4 - Onderdeelnr.: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Codering: 000000

   Subsysteem 5 - Onderdeelnr.: 1K0 951 605 F
   Component: LIN BACKUP HO  H01 0008
   Codering: 000000

   Subsysteem 6 - Onderdeelnr.: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Codering: 000000

   Subsysteem 7 - Onderdeelnr. SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serienummer: 29180000505780058102
   Codering: B4FFFF

3 foutcodes gevonden:
03435 - Contact 30 voor binnenverlichting/parkeerlicht
            011 - Onderbreking - Geregeld
             Freeze frame:
                    Fout Status: 00101011
                    Fout Prioriteit: 3
                    Fout Frequentie: 1
                    Reset Teller: 149
                    KM-stand: 294871 km
                    Tijd Indicatie: 0
                    Datum: 2018.09.02
                    Tijd: 01:13:26

00532 - Voedingsspanning
            011 - Onderbreking - Geregeld
             Freeze frame:
                    Fout Status: 00101011
                    Fout Prioriteit: 2
                    Fout Frequentie: 1
                    Reset Teller: 149
                    Tijd Indicatie: 0

04194 - Onbekende Fout Code
            002 - Onderste grenswaarde onderschreden
             Freeze frame:
                    Fout Status: 01100010
                    Fout Prioriteit: 3
                    Fout Frequentie: 1
                    Reset Teller: 109
                    KM-stand: 294871 km
                    Tijd Indicatie: 0
                    Datum: 2018.09.02
                    Tijd: 00:11:55


-------------------------------------------------------------------------------
Adres 10: Park/Stuurassist (J446)       Labels:| 7E0-919-475.clb
   Onderdeelnr. SW: 7E0 919 475 AA    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0212
   Revisie: --------    Serienummer: 28231803305130
   Codering: 11800C
   Dealer #: WSC 00078 790 12345
   ASAM Dataset: EV_VW75XParkAssis8K 001012
   ROD: EV_VW75XParkAssis8K_001_VN75.rod
   VCID: 71BFD5D9012AE452F05-8024

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 13: Auto Afst. Reg. (J428)       Labels:| 7N0-907-572.clb
   Onderdeelnr. SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0211
   Serienummer: 1103180442B21F
   Codering: 00004000FE0779
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   ROD: EV_ACCBEGVW361.rod
   VCID: 363526C528C4836AE57-8062

2 foutcodes gevonden:
1043 - Afstandsregeling
          B10E7 F0 [008] - losgekoppeld
          [Tip-TNF 207832]
          Geregeld - Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 6
                    Fout Frequentie: 1
                    Reset Teller: 149
                    KM-stand: 294871 km
                    Datum: 2024.04.11
                    Tijd: 01:23:35

                    Regelapparaattemperatuur: 26 °C
                    Spanning contact 15: 11.3 V
                    Rijsnelheid: 0.00 m/s
                    Acceleratie: 0.00 m/s²

0077 - Beperkte werking
          U1400 00 [008] - door onderspanning
          [Tip-TNF 226110]
          Geregeld - Bevestigd - Getest sinds Wissen Geheugen
             Freeze frame:
                    Fout Status: 00000001
                    Fout Prioriteit: 4
                    Fout Frequentie: 6
                    Reset Teller: 149
                    KM-stand: 294871 km
                    Datum: 2024.04.11
                    Tijd: 01:08:59

                    Regelapparaattemperatuur: 22 °C
                    Spanning contact 15: 8.8 V
                    Rijsnelheid: 0.00 m/s
                    Acceleratie: 0.00 m/s²


-------------------------------------------------------------------------------
Adres 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Onderdeelnr. SW: 7E0 959 655 J    HW: 7E0 959 655 J
   Component: VW10Airbag020 010 0018
   Revisie: --------    Serienummer: 003EK000R4SA Dataset Nummer: 7E0003V____ 0904
   Codering: 000000000000000000000000000000003230
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3D2739E90DF2503224D-8068

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 17: Instrumenten (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Onderdeelnr. SW: 7E0 920 870 S    HW: 7E0 920 870 S
   Component: KOMBI         H03 1107
   Serienummer: 00000000000000
   Codering: 150B010400
   Dealer #: WSC 35110 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 392F2DF919DA6C12085-806C

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Onderdeelnr. SW: 7E0 909 901     HW: 7E0 937 090 C
   Component: GW-K-CAN TP20 H82 0752
   Revisie: B9082001
   Codering: 042205
   Dealer #: WSC 35110 377 08192
   VCID: 6889B8BD3270259AA7B-803C

Geen foutcodes gevonden
  of regelapparaat ondersteunt geen foutcodes
  of een communicatie-fout

-------------------------------------------------------------------------------
Adres 25: Startblokkering (J334)       Labels:| 5K0-920-xxx-25.clb
   Onderdeelnr. SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 1107
   Serienummer:
   Codering: 000000
   Dealer #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8DC2B52CFC178AB1F-803E

Geen foutcodes gevonden.

-------------------------------------------------------------------------------
Adres 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
   Onderdeelnr. SW: 7F0 035 153     HW: 7F0 035 153
   Component: Radio         022 0130
   Revisie: --------    Serienummer: VWZGZ1V3730430
   Codering: 00000220000000
   Dealer #: WSC 44994 001 1048576
   VCID: 5EE59E65E0346B2A5D7-800A

1 Fout Gevonden:
01044 - Regelapparaat verkeerd gecodeerd
            000 - - - Geregeld
             Freeze frame:
                    Fout Status: 00100000
                    Fout Prioriteit: 5
                    Fout Frequentie: 3
                    Reset Teller: 149
                    KM-stand: 294871 km
                    Tijd Indicatie: 0
                    Datum: 2018.09.02
                    Tijd: 00:37:28

             Freeze frame:
                    Bin. bits:      010


-------------------------------------------------------------------------------
Adres 61: Batterij Regul. (J840)       Labels:. 1K0-907-534.clb
   Onderdeelnr. SW: 7E0 907 534     HW: 7E0 937 090 C
   Component: Batt.regelung H82 0752
   Serienummer: 4000 075180256
   Codering: 030B7A73
   Dealer #: WSC 00999 444 64523
   VCID: 6889B8BD3270259AA7B-803C

   Subsysteem 1 - Onderdeelnr. SW: 7E0 915 181 K    HW: 7E0 915 181 K
   Component: J367-BDMConti  H03 1050
   Serienummer: 758857000018030812A9

1 Fout Gevonden:
02256 - Ruststroom
            001 - Bovenste grenswaarde overschreden - Geregeld
             Freeze frame:
                    Fout Status: 00100001
                    Fout Prioriteit: 7
                    Fout Frequentie: 1
                    Reset Teller: 149
                    KM-stand: 0 km
                    Tijd Indicatie: 0
                    Datum: 2018.09.02
                    Tijd: 09:23:54


-------------------------------------------------------------------------------
Adres 69: Aanhanger (J345)       Labels:. 1K0-907-383-V2.clb
   Onderdeelnr. SW: 1K0 907 383 G    HW: 1K0 907 383 G
   Component: Towbar module H10 0110
   Revisie: 3A001001    Serienummer: ÀÁ006789580376
   Codering: 0100000100000000
   Dealer #: WSC 00000 000 00000
   VCID: 313F15D9C12AA452B05-8064

Geen foutcodes gevonden.

Einde------(Tijd verstreken: 02:30, VBatt start/einde: 12.1V/12.1V)--------



[Simywal]

Looking like a fuel problem,

As you say it turns when spraying starter fluid.

So we need to look at cam and crank, mechanical timing.

And injection timing.

That's what I thought too
The camshaft timing, intake and exhaust cam can only be compared with a picture on the internet. which seems okay
the belt itself is with tools on time cr pump camshaft and crankshaft.

starts with start pilot but does not activate injectors.

If the timing on the camshafts is wrong and that's why he wouldn't inject and I pull out the camshaft sensor, then the ECU no longer sees this and should do something right?

still have injectors up and see what happens cil #1 sometimes fire


I've become a bit desperate



[Dellmassive]

any chance of a scan in English?

@mmi any input?



[Simywal]

any chance of a scan in English?

@mmi any input?

yes sorry

Thursday,11,April,2024,08:53:37:16365
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 23.3.1.0  HEX-V2 CB: 0.4631.4
Data version: 20230421 DS346.2
www.Ross-Tech.com


VIN: WV1ZZZ7HZJX028404   License Plate:


Chassis Type: 7H-VN75 (XXX)
Scan: 01 03 04 08 09 10 13 15 17 19 25 56 61 69 0B

VIN: WV1ZZZ7HZJX028404   Mileage: 294870km-183223miles

01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXGB)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KA    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 6163
   Revision: 23002001
   Coding: 00114014434401090000
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KA 004012
   ROD: EV_ECM20TDI03004L906056KA.rod
   VCID: 76B5E6C56844C36A257-8022
   VINID: 9E606AAAA1D8A9AA00088100108FB07E7E

6 Faults Found:
31149 - Reductant Flow
          P218F 00 [096] - No Flow Detected
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 18:03:25

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 14 °C
                    Intake air temperature: 15 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 12.007 V
                    Unlearning counter according OBD: 40
                    Outside temperature sensor 1: B1: raw value: 13.5 °C
                    Reducing agent pump module relative press.: calculated: 0 mbar
                    Reducing agent fill level sensor: act. value: 100 mm
                    Sensor for reducing agent tank temperature: temperature: 14.3 °C
                    Reducing agent system pressurization release conditions-Engine running: Condition not met
                    Reducing agent system pressurization release conditions-Press. enabled: Condition not met
                    Reducing agent system pressurization release conditions-Heat. strategy: enable: Condition not met
                    Reducing agent system pressurization release conditions-Depressurized min. time below limit: Condition not met
                    Reducing agent system pressurization release conditions-Catalyst temp.reached: Condition not met
                    Reducing agent system pressurization release conditions-Release due to jammed valve needle: Condition not met
                    Reducing agent system pressurization release conditions-Rinse function finished: Condition not met
                    Reducing agent system pressurization release conditions-Initial filling completed: Condition not met
                    Reducing agent system pressurization release conditions-Release via inducement: Condition not met
                    Reducing agent system pressurization release conditions: 71

29331 - Control Circuit for Reductant Heating 2
          P20BD 00 [035] - Open Circuit
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 17:59:59

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 6 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 11.437 V
                    Unlearning counter according OBD: 40
                    Outside temperature sensor 1: B1: raw value: 13.5 °C
                    Exhaust temperature bank 1: S1/S2/S3/S4:  / ---/---/---/9 °C
                    Sensor for reducing agent tank temperature: temperature: 0.0 °C
                    Reducing agent fill level sensor: act. value: 0 mm
                    Reducing agent quality sensor: urea concentration: 0.00 %
                    Reducing agent quality sensor: raw temperature value: 0.0 °C
                    NOx sensor after SCR cat conv: offset correction factor: 0 ppm

29330 - Control Circuit for Reductant Heating 1
          P20B9 00 [035] - Open Circuit
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 17:59:58

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 0 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 11.257 V
                    Unlearning counter according OBD: 40
                    Outside temperature sensor 1: B1: raw value: 13.5 °C
                    Exhaust temperature bank 1: S1/S2/S3/S4:  / ---/---/---/9 °C
                    Sensor for reducing agent tank temperature: temperature: 0.0 °C
                    Reducing agent fill level sensor: act. value: 0 mm
                    Reducing agent quality sensor: urea concentration: 0.00 %
                    Reducing agent quality sensor: raw temperature value: 0.0 °C
                    NOx sensor after SCR cat conv: offset correction factor: 0 ppm

27277 - System Voltage
          P0562 00 [035] - Too Low
          Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 17:59:58

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 0 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 11.351 V
                    Unlearning counter according OBD: 40
                    Air mass at air mass meter 1: 0.0 kg/h
                    Standardized air flow ratio: 1.000 counts
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: 0.24 %
                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %
                    Charge air pressure: specified value: 0.000 bar
                    Absolute intake pressure: 102 kPa abs
                    Mean injection quantity: 0 mg/stroke
                    Index of current engine mode: 8
                    Index of next requested engine mode: 0
                    Index of engine target mode: 0

23790 - Intercooler Temperature Sensor (Bank 1)
          P007D 00 [163] - Short to Plus
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 17:59:58

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 12 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 11.804 V
                    Unlearning counter according OBD: 40
                    EGR temp. sensor 1: B1: raw value: 8.7 °C
                    Coolant temperature at engine outlet: calculated: 13.7 °C
                    Particulate filter input: temp. sensor 1: bank 1: raw value: 7.0 °C
                    Turbocharger 1 turbine output: temp. sensor 1: B1: raw value: 9.0 °C
                    Outside temperature sensor 1: B1: raw value: 13.5 °C
                    Turbocharger 1 turbine input: temp. sensor 1: B1: raw value: 75.0 °C
                    Particulate filter output: temp. sensor 1: bank 1: raw value: 8.5 °C
                    Charge air cooler output: temp. sensor 1: B1: raw value: -40.0 °C
                    Turbocharger 1 charger output: temp. sensor 1: B1: raw value: -40.0 °C
                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: -40 °C
                    Intake air temperature: -40 °C
                    Ambient air pressure: 0 mbar
                    Voltage terminal 30: 0.000 V

23792 - Intercooler Temperature Sensor (Bank 2)
          P00A3 00 [163] - Short to Plus
          MIL ON - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 294871 km
                    Date: 2068.01.11
                    Time: 17:59:58

                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 13 °C
                    Intake air temperature: 12 °C
                    Ambient air pressure: 1020 mbar
                    Voltage terminal 30: 11.804 V
                    Unlearning counter according OBD: 40
                    EGR temp. sensor 1: B1: raw value: 8.7 °C
                    Coolant temperature at engine outlet: calculated: 13.7 °C
                    Particulate filter input: temp. sensor 1: bank 1: raw value: 7.0 °C
                    Turbocharger 1 turbine output: temp. sensor 1: B1: raw value: 9.0 °C
                    Outside temperature sensor 1: B1: raw value: 13.5 °C
                    Turbocharger 1 turbine input: temp. sensor 1: B1: raw value: 75.0 °C
                    Particulate filter output: temp. sensor 1: bank 1: raw value: 8.5 °C
                    Charge air cooler output: temp. sensor 1: B1: raw value: -40.0 °C
                    Turbocharger 1 charger output: temp. sensor 1: B1: raw value: -40.0 °C
                    Engine RPM: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: -40 °C
                    Intake air temperature: -40 °C
                    Ambient air pressure: 0 mbar
                    Voltage terminal 30: 0.000 V

Readiness: N/A

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 P    HW: 7E0 907 379 M
   Component: ESC           H06 0133
   Revision: 00000000    Serial number: 60798000000786
   Coding: 517E4098256484868A790276A48621E678F500
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 3FDB43E107FE4222361-806A

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 05031813470545
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5FEE540748B2A7D7-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AJ    HW: 7E0 907 047 AJ
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis.rod
   VCID: 72BDDAD5042CDF4A09F-8026

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 C    HW: 7E0 937 090 C
   Component: BCM PQ25 Max4 H82 0752
   Revision: B9082001    Serial number: 4000 075180256
   Coding: 22A8393A0A61341293284F746CEB8EF40F84690F60CC6960330400A30840
   Shop #: WSC 35110 377 08192
   VCID: 2B0307B1E306CE828A9-807E

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 190318 04  47  0106
   Coding: 0228EE

   Subsystem 2 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  004 0653
   Serial number: KU0KU014031880732133
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  004 0653
   Serial number: KU0KU014031880730977
   Coding: 1400A0

   Subsystem 4 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 5 - Part No: 1K0 951 605 F
   Component: LIN BACKUP HO  H01 0008
   Coding: 000000

   Subsystem 6 - Part No: 7E1 951 172
   Component: DWA-Sensor 00  001 0104
   Coding: 000000

   Subsystem 7 - Part No SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 29180000505780058102
   Coding: B4FFFF

1 Fault Found:
04194 - Vehicle Status with Under-Voltage
            002 - Lower Limit Exceeded
             Freeze Frame:
                    Fault Status: 01100010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 109
                    Mileage: 294871 km
                    Time Indication: 0
                    Date: 2018.09.02
                    Time: 17:59:57


-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446)       Labels:| 7E0-919-475.clb
   Part No SW: 7E0 919 475 AA    HW: 7N0 919 475
   Component: PARKHILFE 8K  H06 0212
   Revision: --------    Serial number: 28231803305130
   Coding: 11800C
   Shop #: WSC 00078 790 12345
   ASAM Dataset: EV_VW75XParkAssis8K 001012
   ROD: EV_VW75XParkAssis8K_001_VN75.rod
   VCID: 71BFD5D9012AE452F05-8024

No fault code found.

-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 C    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0211
   Serial number: 1103180442B21F
   Coding: 00004000FE0779
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001006
   ROD: EV_ACCBEGVW361.rod
   VCID: 363526C528C4836AE57-8062

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 J    HW: 7E0 959 655 J
   Component: VW10Airbag020 010 0018
   Revision: --------    Serial number: 003EK000R4SA Dataset Number: 7E0003V____ 0904
   Coding: 000000000000000000000000000000003230
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 3D2739E90DF2503224D-8068

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 870 S    HW: 7E0 920 870 S
   Component: KOMBI         H03 1107
   Serial number: 00000000000000
   Coding: 150B010400
   Shop #: WSC 35110 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW25.rod
   VCID: 392F2DF919DA6C12085-806C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090 C
   Component: GW-K-CAN TP20 H82 0752
   Revision: B9082001
   Coding: 042205
   Shop #: WSC 35110 377 08192
   VCID: 6889B8BD3270259AA7B-803C

No Faults Found
  or DTCs not supported by controller
  or a communication error occurred

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H03 1107
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
   VCID: 6A8DC2B52CFC178AB1F-803E

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J503)       Labels:. 5M0-035-1xx-56.clb
   Part No SW: 7F0 035 153     HW: 7F0 035 153
   Component: Radio         022 0130
   Revision: --------    Serial number: VWZGZ1V3730430
   Coding: 00000220000000
   Shop #: WSC 44994 001 1048576
   VCID: 5EE59E65E0346B2A5D7-800A

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090 C
   Component: Batt.regelung H82 0752
   Serial number: 4000 075180256
   Coding: 030B7A73
   Shop #: WSC 00999 444 64523
   VCID: 6889B8BD3270259AA7B-803C

   Subsystem 1 - Part No SW: 7E0 915 181 K    HW: 7E0 915 181 K
   Component: J367-BDMConti  H03 1050
   Serial number: 758857000018030812A9

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 G    HW: 1K0 907 383 G
   Component: Towbar module H10 0110
   Revision: 3A001001    Serial number: ÀÁ006789580376
   Coding: 0100000100000000
   Shop #: WSC 00000 000 00000
   VCID: 313F15D9C12AA452B05-8064

No fault code found.

End----------(Elapsed Time: 02:29, VBatt start/end: 11.8V/12.1V)-----------



[mmi]

Please do not edit the VCDS log file. It's now a bit garbled because both decimal and field separators are now the same = semicolon (";")



[Simywal]

Please do not edit the VCDS log file. It's now a bit garbled because both decimal and field separators are now the same = semicolon (";")

i did nothing to it



[mmi]

i did nothing to it

Ok, perhaps also the log file decimal and field separators has been set to local settings. Anyways, IMO in this case wrongly as you can't distuinguish the decimal numbers and separate fields - except doing all that manually.

If would do the logging with English version the difference would be obvious.

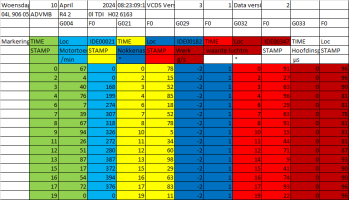

Below a sample how the fields got scattered in Excel. Separate colours denote how the data should align in the columns.



E.g. time (green) should be as
0.67,
2.4,
3.4,
4.76,
6.7,
7.39,
etc. seconds



[Simywal]

is this better?



[mmi]

Yes, much better now. Thanks.

---

The data looks normal to me. Well, no air into engine - I guess the air filter box wasn't there.
Anyways, ECU commanded injectors to fire, normal fuel pressure, engine was cranking just fine.

---

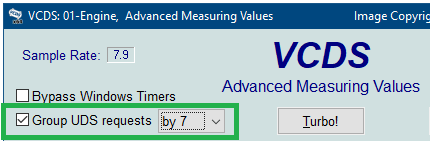

PS. A VCDS performance tip -

By using UDS grouping you would get siginificantly better data sampling rate - to catch possible glitches. Now a sweep of 12 measurement values took 1.3 seconds, by UDS grouping would be 1/10 of that.



See a snippet below from a 12 value recording - TIME STAMP column



[Simywal]

7 bit



[Simywal]

Yes, much better now. Thanks.

---

The data looks normal to me. Well, no air into engine - I guess the air filter box wasn't there.
Anyways, ECU commanded injectors to fire, normal fuel pressure, engine was cranking just fine.

View attachment 236489

---

PS. A VCDS performance tip -

By using UDS grouping you would get siginificantly better data sampling rate - to catch possible glitches. Now a sweep of 12 measurement values took 1.3 seconds, by UDS grouping would be 1/10 of that.

View attachment 236475

See a snippet below from a 12 value recording - TIME STAMP column
View attachment 236495



[Simywal]

Yes, much better now. Thanks.

---

The data looks normal to me. Well, no air into engine - I guess the air filter box wasn't there.
Anyways, ECU commanded injectors to fire, normal fuel pressure, engine was cranking just fine.

View attachment 236489

---

PS. A VCDS performance tip -

By using UDS grouping you would get siginificantly better data sampling rate - to catch possible glitches. Now a sweep of 12 measurement values took 1.3 seconds, by UDS grouping would be 1/10 of that.

View attachment 236475

See a snippet below from a 12 value recording - TIME STAMP column
View attachment 236495

I'm seeing that for the first time too
but injectors nothing.....



[mmi]

7 bit

Seems to be the same log as earlier today in post #5. The misaligned one.
