T6.1 rls rain light sensor assembly
- Thread starter Erhan
- Start date
Looks good - the pin 7 should be empty as per wiring diagram
What didn't work? Lights or windshield wipers?
I would try these - (note the"????" - not sure about that on your van)

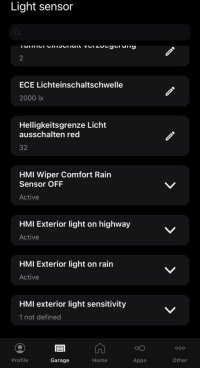

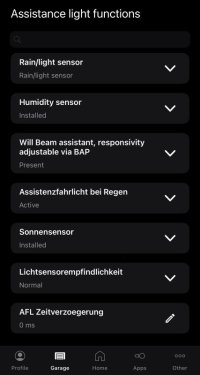

| IDE08786-MAS10528-Assistance light functions-Rain light sensor | Rain light sensor |
| IDE08786-MAS13782-Assistance light functions-Will Beam assistant: responsivity adjustable via BAP | present -- ???? |
| ENG148493-ENG149042-Windshield wiper-rain_sensor_function | installed |
| ENG148493-ENG149238-Windshield wiper-Regensensor_aktivieren | active |
Please post full VCDS Auto-Scan
and
BCM (09) adaptation map - VCDS > Applications > Controller channel map > Address 09/ Adaptations/ CSV file
Erhan
Member
09 Central Electrics
System description: BCM T6PA Std+
Software number: 2Q5937090
Software version: 0935
Hardware number: 2Q5937090
Hardware version: H10
Serial Number: 01102001000495
Faults:
B126A29 - Headlight switch
Incompatible signal
sometimes
Priority - 4
Fault frequency counter - 4
Adaptation counter - 108
km-Mileage - 20902 km
Dynamic environment data - 10000504007777
date - 2022-02-06 01:28:18
B121F15 - Left fog lamp bulb
Open/Short to positive
static
Priority - 5
Fault frequency counter - 1
Adaptation counter - 66
km-Mileage - 20904 km
Dynamic environment data - 1000050800947E
date - 2022-02-07 01:58:40
Erhan
Member
Code:
Thursday,10,February,2022,10:18:21:22112
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 21.9.0.2
Data version: 20211205 DS330.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZLH035899 License Plate: 1121
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 7H-VN46 (3Q0)
Scan: 01 03 08 09 10 15 17 19 44 52 5F
VIN: WV1ZZZ7HZLH035899
01-Engine -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
44-Steering Assist -- Status: OK 0000
52-Door Elect, Pass. -- Status: Cannot be reached 0100
5F-Information Electr. -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 RS HW: 04L 907 445 M
Component: R4 2.0l TDI H01 9971
Revision: 23301001
Coding: 001940144324050900000000000000000000000000000000
Shop #: WSC 00012 790 00041
ASAM Dataset: EV_ECM20TDI03004L906056RS 005008
ROD: EV_ECM20TDI03004L906056LE_005.rod
VCID: 0FC73F7376AB6C9168-805A
VINID: 9E606AAAA1D8A9C6000C5209245E543245
No ASAM data for: "EV_ECM20TDI03004L906056RS" (VN46)
No fault code found.
Readiness: N/A
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: Redir Fail!
Part No SW: 7LB 614 517 A HW: 7LB 614 517
Component: ESC_base H01 0700
Serial number: 08512521191127
Coding: 11552452484AE68A885C24AD126F670638202078
Shop #: WSC 00012 790 00041
ASAM Dataset: EV_Brake1ESP90iBOSCHVN46X 002010
ROD: EV_Brake1ESP90iBOSCHVN46X_002.rod
VCID: 3EF6C1C032BE46EEE0-806A
No ASAM data for: "EV_Brake1ESP90iBOSCHVN46X" (VN46)
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels: None
Part No SW: 7LA 907 426 HW: 7LA 907 426
Component: AC Manuell H01 0502
Coding: B03010000810000001000800504001050000000000010000800000000000
Shop #: WSC 00012 790 00041
ASAM Dataset: EV_AirCondiBHTCT6PA 001004
ROD: EV_AirCondiBHTCT6PA.rod
VCID: 5501B31D9E0DD08F18-8000
No ASAM data for: "EV_AirCondiBHTCT6PA" (VN46)
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 5Q0-937-08X-V2.clb
Part No SW: 2Q5 937 090 HW: 2Q5 937 090
Component: BCM T6PA Std+ H10 0935
Serial number: 01102001000495
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_BCMA0 205001
ROD: EV_BCMA0_205.rod
VCID: 742075A21AA00A5410-8020
Subsystem 2 - Part No SW: 7L2 959 405 HW: 7L2 959 163
Component: FHSG_DRV 001 0002
Serial number: 00000000000036899262
Coding: 130000
Subsystem 3 - Part No SW: 7L2 959 406 HW: 7L2 959 164
Component: FHSG_PSG 001 0002
Serial number: 00000000000036877376
Coding: 090000
No ASAM data for: "EV_BCMA0" (VN46)
2 Faults Found:
8714 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 17:54:55
919560 - ROD - Unknown Error Code
- 00 [008]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 108
Mileage: 20957 km
Date: 2022.02.09
Time: 02:47:51
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:. 5Q0-919-283.clb
Part No SW: 5QA 919 283 E HW: 5QA 919 283
Component: PDC 4 Kanal H08 0061
Serial number: 000150059319352
Coding: 0601050001
Shop #: WSC 00012 790 00041
ASAM Dataset: EV_EPHVA14AU3700000 009044
ROD: EV_EPHVA14AU3700000_009_VW37.rod
VCID: 4CF8A53A7A781A4C50-8018
No ASAM data for: "EV_EPHVA14AU3700000" (VN46)
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb
Part No SW: 2Q0 959 655 AD HW: 2Q0 959 655 AD
Component: VW22Airbag 015 0506
Revision: --------
Coding: 800080000000000040000000000C00000065
Shop #: WSC 00012 790 00041
ASAM Dataset: EV_AirbaVW22BPAVW27X 001022
ROD: EV_AirbaVW22BPAVW27X.rod
VCID: 7F375F83367BCCA1E8-802A
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels: Redir Fail!
Part No SW: 7LA 920 741 HW: 7LA 920 741
Component: KOMBI 205 6750
Coding: 07A50A022080000801087A000401000000000000
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_DashBoardVDDMQBAB 009069
ROD: EV_DashBoardVDDMQBAB_VW27.rod
VCID: 7B2B478F064FF485C8-802E
No ASAM data for: "EV_DashBoardVDDMQBAB" (VN46)
1 Fault Found:
16777022 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 02:04:56
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 AC HW: 3Q0 907 530 C
Component: GW MQB High 521 GW MQB High 521 53885388
Serial number: 15121910520617
Coding: 030100044F05730000000008000F00010001070000000000000000000000
Shop #: WSC 00012 790 00037
GVL: 01443C0100000000400800000000480000000000000000000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: N/A
VCID: 70247DAEEAB4324870-8024
Component: 4-01-09-01-04
No ASAM data for: "EV_GatewNF" (VN46)
3 Faults Found:
131608 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 5
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 02:04:54
131659 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 5
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 02:04:54
8526363 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 9
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 02:04:54
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:. 2N0-909-143.clb
Part No SW: 7LA 909 144 F HW: 7LA 909 144 D
Component: EPS_MQB_ZFLS 751 7150
Coding: 0106
Shop #: WSC 00012 790 00037
ASAM Dataset: EV_SteerAssisMNB 002012
ROD: EV_SteerAssisMNB.rod
VCID: 45F1D32D5E5D301F98-8010
No ASAM data for: "EV_SteerAssisMNB" (VN46)
No fault code found.
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass.
Cannot be reached
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:. 5G0-035-MIB-ENT2.clb
Part No SW: 3G0 035 869 HW: 3G0 035 869
Component: MU-E--ER 715 0740
Serial number: 09121900011516
Coding: 066401003C00000041110001000100001F0000C40000010008
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_MUEnt4CGen2LGE 001044
ROD: EV_MUEnt4CGen2LGE_VW27.rod
VCID: 691D6B41CEE9481BB8-803C
No ASAM data for: "EV_MUEnt4CGen2LGE" (VN46)
1 Fault Found:
1543 - ROD - Unknown Error Code
- 00 [009]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 1
Reset counter: 68
Mileage: 20957 km
Date: 2022.02.09
Time: 02:04:56
Last edited by a moderator:
8714 - Bulb for Left Fog Lamp - B121F 15 [008] - Open or Short to Plus
919560 - Light Switch - B126A 29 [009] - Signal Implausible
Anyways, the BCM hasn't recognized the Rain-Light-sensor. I would expect to see the RLS as subsystem 1:
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: None
Part No SW: 2Q5 937 090 HW: 2Q5 937 090
Component: BCM T6PA Std+ H10 0935
ASAM Dataset: EV_BCMA0 205001
ROD: EV_BCMA0_204.rod
Rain Light Recognition Sensor:
Subsystem 1 - Part No SW: 5Q0 955 559 B HW: 5Q0 955 559 B
Component: RLS 050 0105
Coding: 02B8EE
Drivers Door Control Module:
Subsystem 2 - Part No SW: 7L2 959 405 B HW: 7L2 959 163 B
Component: FHSG_DRV 001 0002
Coding: 130007
Front Passengers Door Control Module:
Subsystem 3 - Part No SW: 7L2 959 406 B HW: 7L2 959 164 B
Component: FHSG_PSG 001 0002
Coding: 090007
-------------------------------------------------------------------------------
You do have correct part# for the RLS?
Must assume the LINbus is connected.
Obviously need to have a more careful look into adaptations. Could you please post the adaptation map file (as an attachment).
