Hi @Superchargedgti what did you do exactly to get the movement and especially the heating working ..

Hi @Superchargedgti what did you do exactly to get the movement and especially the heating working ..

Hi the power for movement in the seats I’ve used the passenger seat fuse box for additional separate supplies to each seat with 25A fuses
Still waiting for a kufatec loom for the heating but I have the new dash controls,seat heat control module and Audi seat plugs for the new loom
Will post on here when it’s done



[PhillH]

Hi the power for movement in the seats I’ve used the passenger seat fuse box for additional separate supplies to each seat with 25A fuses
Still waiting for a kufatec loom for the heating but I have the new dash controls,seat heat control module and Audi seat plugs for the new loom
Will post on here when it’s done

Hi @Superchargedgti where are you getting the Audi seat plugs from?



[nodecentral]

Thanks @Superchargedgti .

As my install turned into a bit of a wiring massacre, when you can I’d appreciate knowing just the specific parts you’re working with and have bought to make it all work - -

First off, a QQ: what was the original Audi seat control unit/module that came with the seats?

Moving on to your shopping list..
What is the new seat movement controls youve got?
What dash heating controls and module have you bought?
What is the kufatec loom for the heating you’re waiting for?



[Superchargedgti]

Hi @Superchargedgti where are you getting the Audi seat plugs from?

Got a loom with the correct plugs on from good old Ali express £35



[borat]

Thanks @Superchargedgti .

As my install turned into a bit of a wiring massacre, when you can I’d appreciate knowing just the specific parts you’re working with and have bought to make it all work - -

First off, a QQ: what was the original Audi seat control unit/module that came with the seats?

Moving on to your shopping list..
What is the new seat movement controls youve got?
What dash heating controls and module have you bought?
What is the kufatec loom for the heating you’re waiting for?

If you’re doing a T6.1 and want the heated seats as OEM as possible (and controllable more than just full blast on or off), then you need the climate Panel with the heated seat buttons and also the seat module. I managed to get them off eBay for about 120 quid for both, which I think was a bit of a bargain as i have seen the panel go for 2-3x that on its own. It also needs coding, but I havent got that far yet as still trying to work out the loom. I have the part numbers for the above if you want them LMK and I can dig them out.

Cheers



[PhillH]

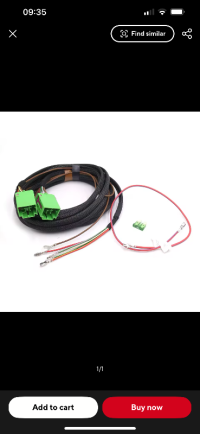

Got a loom with the correct plugs on from good old Ali express £35

View attachment 284485

Cheers mate, thank you



[nodecentral]

For me, I’ve put my s-line into a T6, which just has basic AC, no climate control or heated seat buttons. So I’m trying to work out all the wires in the green plug and see how i can make it work..

From what I can tell of the 5 wires in the green plug - they are - but not 100% sure,,

(5) Red is heating element
(2) Brown & white is heating element.
(3) Black & White is thermostat / temp Sensor
(1) Brown & Green is thermostat / temp Sensor
(6) Green - ???



[Superchargedgti]

If you’re doing a T6.1 and want the heated seats as OEM as possible (and controllable more than just full blast on or off), then you need the climate Panel with the heated seat buttons and also the seat module. I managed to get them off eBay for about 120 quid for both, which I think was a bit of a bargain as i have seen the panel go for 2-3x that on its own. It also needs coding, but I havent got that far yet as still trying to work out the loom. I have the part numbers for the above if you want them LMK and I can dig them out.

Cheers

Have you started the heated seat wiring on your van yet? Got all my wiring no so plan on installing and coding this weekend
Only information I’m searching for is the Linbus connection position I think that’s at the BCM? T73C/15
And the Audi seats have 4 wires to connect to the 3 on the kufatec loom
I expect positive and negative to seat pads and 2 sensors for base and back? Need to confirm what to do with the sensor wires possibly joining the 2 Audi ones together and connect to the single kufatec sensor wire
That just leaves positive and negative supply at the main fuse panel I hope?



[Snakelimit]

Scroll few pages back and there somone asked and was answered what wire goes from Audi 4 wires to t6 3 wires.



[Superchargedgti]

Scroll few pages back and there somone asked and was answered what wire goes from Audi 4 wires to t6 3 wires.

Mines a bit different it’s also a 6.1

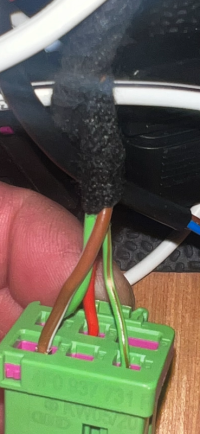

My green plugs on the Audi seat are
Thick Red
Thick Green
Thick Brown/ white tracer
Thin Green/ brown tracer

Kufatec seat loom has 3 wires
2 thick ones marked BFS3 DREI
& BFS4 VIER
1 thin marked BFS 2 ZWEI

The dash end of the kufatec loom has 3 wires also
Ground wire that’s obvious
White thick wire that I expect is positive supply from the fuse box?
Marked SC55 K1.75
And a thin linbus cable marked T73C/15
Not sure where the linbus connects to maybe the BCM?
Any suggestions welcome



[Superchargedgti]

Mines a bit different it’s also a 6.1
My green plugs on the Audi seat are
Thick Red
Thick Green
Thick Brown/ white tracer
Thin Green/ brown tracer

Kufatec seat loom has 3 wires
2 thick ones marked BFS3 DREI
& BFS4 VIER
1 thin marked BFS 2 ZWEI

The dash end of the kufatec loom has 3 wires also
Ground wire that’s obvious
White thick wire that I expect is positive supply from the fuse box?
Marked SC55 K1.75
And a thin linbus cable marked T73C/15
Not sure where the linbus connects to maybe the BCM?
Any suggestions welcome
