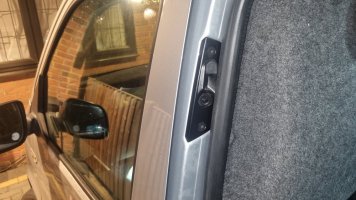

Geez...
Looks like you will need to drill out the core of the bolt.

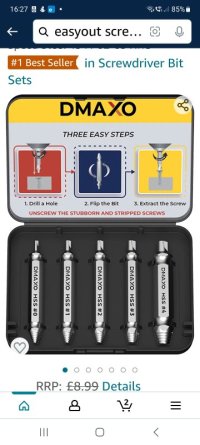

Then try a easyout, reverse tap to get it out.
I'd be using a impact screwdriver... To try and shock it out.
.
Looks like you will need to drill out the core of the bolt.
Then try a easyout, reverse tap to get it out.
I'd be using a impact screwdriver... To try and shock it out.
.
might be hard to drill out if you can't get that easy out first maybe try and tap the screw around with hammer and small chisel
You're going to struggle to drill out the embedded tip of the broken extractor.
I would get a small, sharp cold chisel, and carefully try and knock the bolt head in an anti clockwise direction.
Once you get the chisel at the right angle it will cut into the head and the hammering will help 'shock' the bolt loose.
You can try knocking the chisel in from opposite side to spread the hammering force.
www.toolstation.com
I would get a small, sharp cold chisel, and carefully try and knock the bolt head in an anti clockwise direction.
Once you get the chisel at the right angle it will cut into the head and the hammering will help 'shock' the bolt loose.
You can try knocking the chisel in from opposite side to spread the hammering force.
Punch & Chisel Set
Polished chrome vanadium shafts and soft grip handles.3 piece set contains: 10mm chisel, 3mm pin punch and 3mm centre punch.
www.toolstation.com
Nice set that.....You're going to struggle to drill out the embedded tip of the broken extractor.
I would get a small, sharp cold chisel, and carefully try and knock the bolt head in an anti clockwise direction.
Once you get the chisel at the right angle it will cut into the head and the hammering will help 'shock' the bolt loose.
You can try knocking the chisel in from opposite side to spread the hammering force.
Punch & Chisel Set
Polished chrome vanadium shafts and soft grip handles.3 piece set contains: 10mm chisel, 3mm pin punch and 3mm centre punch.
I've added it my basket.
As others have noted you will not be able to drill the HSS ezi-out or what ever else has snapped with a HSS drill. It is possible with a pure colbalt drill but I wouldn’t attempt it without a custom made drilling dolly as it will certainly drift off centre.
I would use a direct strike to the centre of the fastener with a flat headed drift / pin punch and a hammer to attempt to stretch the thread.
Then use a centre punch to create a dimple near but not on the edge of the countersunk head.
Then use a small diamond point cold chisel to gentle tap the head around, a blunt chisel will prevent the head being cut instead of turning. Many light taps rather that a few heavy ones!
If that fails I would weld a nut to the head of the fastener. The welding will take 2 seconds but I suggest a couple of hours is spent to make guard and cover everything but the head of the screw.
I would use a direct strike to the centre of the fastener with a flat headed drift / pin punch and a hammer to attempt to stretch the thread.
Then use a centre punch to create a dimple near but not on the edge of the countersunk head.
Then use a small diamond point cold chisel to gentle tap the head around, a blunt chisel will prevent the head being cut instead of turning. Many light taps rather that a few heavy ones!
If that fails I would weld a nut to the head of the fastener. The welding will take 2 seconds but I suggest a couple of hours is spent to make guard and cover everything but the head of the screw.
Last edited:
I would use some sort of cutter grinder or even a dremel tool cut a new slot across then use a large slotted screwdriver if needed then you could use the tap hard shock method
Best of luck
Ps make sure it’s not an opposite thread ???
how
Don’t worry it isn’t a LH thread. Anti-clockwise to remove.
FYI ..
That bolt is this:

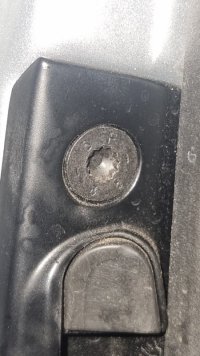

Triple square, or spline bolt as they call it.
But it's defo well tight.
So imact screwdriver is good to free it up.
Not sure on its re tighten tourque spec.
.
That bolt is this:
Triple square, or spline bolt as they call it.
But it's defo well tight.
So imact screwdriver is good to free it up.
Not sure on its re tighten tourque spec.
.

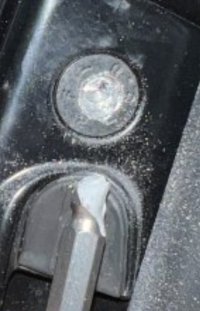

This is the one that snapped in there……
Do you know the tool bit I need to put screw them back? PLUS A NEW SCREW!!
Also I’m going to dremel a slot and get a flat blade on it.
Just checked yes left hand thread
