Steering wheel upgrade / Coding

[albertinno]

Hello. I need help with coding.
I installed a new steering wheel with the code: 2H6419091 and the steering wheel is missing gearshift paddles.


Then I also replaced the airbag wiring harness:



Then I connected the necessary wires to the BMC and also ran the power cable there.



When I started coding, I found two places where I added checkmarks:



I also found a place for the cruise control, which was already active. I have the cruise control together with the turn signal lever.





After coding, the situation is like this.
The buttons on the steering wheel and the horn started working. But the problem is that now the cruise control no longer works and the car gets an error that it cannot connect to the gearshift paddles on the steering wheel.
Now the engine light also started to come on and the dashboard shows that the cruise control is activated. When I press the buttons, nothing happens.



What could be the thing I should do to get this cruise control working and get rid of these errors.

Regards Albert



[albertinno]

Does anyone have any ideas?



[Badjamin]

Am surprised no one has been in touch with this. I'm wondering if it has perhaps been covered in previous threads? See below thread suggestions)

I'm looking to install a new steering wheel in the next year or so and retro installing ACC so am always interested in these threads.

Hope you get it sorted - keep us updated



[mmi]

To understand what the van thinks about the installation please post

(1) An old VCDS Auto-Scan before any adjustments or installs were made​

(2) Current VCDS Auto-Scan​

(3) A blockmap data from 01-Engine​

(4) A blockmap data from 09-Central Electrics​

​

---

How-to create a blockmap data package​

VCDS > Applications > Controller Channel Map >

For "Single controller address" - use 01 and 09

Tick/fill boxes as above and click on Go.
There will be files blockmap-01-...CSV and blockmap-09-...CSV in folder C:\Ross-Tech\VCDS\Logs\....
Note: only VCDS HEX-V2 and VCDS HEX-NET cables have the capability to create blockmap files.



[Badjamin]

To understand what the van thinks about the installation please post

(1) An old VCDS Auto-Scan before any adjustments or installs were made​

(2) Current VCDS Auto-Scan​

(3) A blockmap data from 01-Engine​

(4) A blockmap data from 09-Central Electrics​

​

---

How-to create a blockmap data package​

VCDS > Applications > Controller Channel Map >

For "Single controller address" - use 01 and 09

Tick/fill boxes as above and click on Go.
There will be files blockmap-01-...CSV and blockmap-09-...CSV in folder C:\Ross-Tech\VCDS\Logs\....
Note: only VCDS HEX-V2 and VCDS HEX-NET cables have the capability to create blockmap files.

Like an honorableand courageous knight riding out of the mist with an unsheathed sword of knowledge! #swoons



[albertinno]

To understand what the van thinks about the installation please post

(1) An old VCDS Auto-Scan before any adjustments or installs were made​

(2) Current VCDS Auto-Scan​

(3) A blockmap data from 01-Engine​

(4) A blockmap data from 09-Central Electrics​

​

---

How-to create a blockmap data package​

VCDS > Applications > Controller Channel Map >

For "Single controller address" - use 01 and 09

Tick/fill boxes as above and click on Go.
There will be files blockmap-01-...CSV and blockmap-09-...CSV in folder C:\Ross-Tech\VCDS\Logs\....
Note: only VCDS HEX-V2 and VCDS HEX-NET cables have the capability to create blockmap files.

Hello. I am attaching the requested files here.
The file named Log- is before the steering wheel was coded and Log-NMN-34 is after the steering wheel was installed and coded.



[mmi]

The file named Log- is before the steering wheel was coded

Just realised that actually a good one might be in your earlier post

A

Thread 'Revese camera coding'

16 Jan 2023

Hello.

I have 2016 T6 and i want install RVC.

I ordered this camera from here: New VW POLO AW 2018 - Rear Emblem Camera KIT - Retrofit - (I install this inside the door)
Installing the camera wiring was easy.

My car radio is next : 5C0035680G


But the problem now is that when I put it in reverse, the camera opens, but the picture doesn't appear.


I have coded two things:

block
5F - Information Electr.
byte no. 19 = byte no. 4
block 10 pdc = byte 2 rear view camera installed

But nothing. Does anyone have any ideas.


Autoscan

Monday,16,January,2023,20:18:32:00685...

• albertinno
• Replies: 7
• Forum: Electrics, Lighting, ICE, Security

Log-NMN-34 is after the steering wheel was installed and coded.

Could you please redo a full VCDS Auto-Scan - this one is only BCM, thus missing all the other comtrollers.

Anyways, the BCM also lost communication with door controllers - which were still present in the "before" scan.
Also the steering wheel (button) controller was not registered - perhaps related to lost door controllers???

Did the steering wheel come with the buttons?
Do you have part number for steering wheel button controller?

Before (2023-01-16)​

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 347160709
   Coding: 62A0303A0A21203201200F742CEB8E540F80708F60466D60320400220800
   Shop #: WSC 12345 123 12345
   VCID: 2A180B0F45FD84DD3D-807E

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 111216 04  42  0106
   Coding: 0228DD

   Subsystem 2 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU030111663352776
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU007121663425562
   Coding: 1400A0

No fault code found.
-------------------------------------------------------------------------------

Before (2025-04-22]​

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 347160709
   Coding: 62A0303A0A21203201200F742CEB8E540F80708F60466D60320400220800
   Shop #: WSC 12345 208 1585987
   VCID: 2A180B0F45FD84C6B5-807E

   Subsystem 1 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU030111663352776
   Coding: 0400A0

   Subsystem 2 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU007121663425562
   Coding: 1400A0

1 Fault Found:
--------------------------------------------------------------------------------

Any idea why the rain&light sensor is missing - has it been removed/disconnected since 2023?
As this scan is from yesterday - did you really remove the steering wheel etc. for the scan, or was it still electrically connected?

After coding (2025-04-23)​

The subsystems were lost

--------------------------------------------------------------------------------

                Address 09: Cent. Elect.       Labels: 7E0-937-BCM-V1.clb
Control Module Part Number: 7E0 937 090 B    HW: 7E0 937 090
  Component and/or Version: BCM PQ25 Max4 H81 0744
           Software Coding: 62A0303A0A21203201280F742CEB8E540F80708F60466D60320400220840
            Work Shop Code: WSC 12345 208 158598
                      VCID: 2A180B0F45FD84C6B5-807E
4 Faults Found:
--------------------------------------------------------------------------------



[albertinno]

Hey, here's the new VCDS Auto-Scan.
I bought the steering wheel with the buttons. I also posted a picture of the part number for the buttons.

Any idea why the rain&light sensor is missing - has it been removed/disconnected since 2023? -- Yes, it was disconnected.



[mmi]

I also posted a picture of the part number for the buttons.

2H6 419 091 is the steering wheel frame - not the buttons?

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090 B    HW: 7E0 937 090
   Component: BCM PQ25 Max4 H81 0744
   Revision: B9081001    Serial number: 0982 347160709
   Coding: 62A0303A0A21203201200F742CEB8E540F80708F60466D60320400220800
   Shop #: WSC 12345 208 158598
   VCID: 2A180B0F45FD84C6B5-807E

   Subsystem 1 - Part No: 5K7 955 559 C  Labels: 5K7-955-559.CLB
   Component: RLS 111216 04  42  0106
   Coding: 0228DD

   Subsystem 2 - Part No SW: 7E0 959 801 M    HW: 7E0 959 801 M
   Component: J386__TSG_FT  003 0653
   Serial number: KU0KU030111663352776
   Coding: 0400A0

   Subsystem 3 - Part No SW: 7E0 959 802 M    HW: 7E0 959 802 M
   Component: J387__TSG_BT  003 0653
   Serial number: KU0KU007121663425562
   Coding: 1400A0

1 Fault Found:
01044 - Control Module Incorrectly Coded
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 255
                    Mileage: 239068 km
                    Time Indication: 0
                    Date: 2019.10.04.
                    Time: 07:14:15


-------------------------------------------------------------------------------

It seems the buttons are still not recognised by the BCM.
What was wrong previously when all the submodules were missing?

I would expect to see an additional submodule for the buttons similar to this below

   Subsystem 4 - Part No SW: 7E0 959 442     HW: 7E0 959 442   Labels: 3C8-959-537.CLB
   Component: E221__MFL-MD9  H02 0103
   Coding: B0FFFF

Does the VCDS see the buttons submodule in the BCM pull-down menu?



[albertinno]

I have such a choice there.



[mmi]

I have such a choice there.

Obviously the steering wheel button controller is not recognised by the BCM. That's a problem.

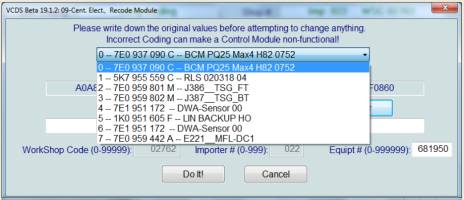

See in my post: 7 -- part_number -- E221_MFL-DC1
