T6.1 fog-light retrofit
- Thread starter D11mat
- Start date
-
- Tags
- fog lights retrofit startline t6.1
Hello,
On my VW T6.1 from 03/2021, I just retrofitted the front fog lighs + coding.
Unfortunately it doesn't work, and I'm getting crazy as I do not find the root cause.
Now I'm questionning :
- on which fuse are the fog lights connected ? No VW fuse diagram available :-(
- I connected the 2 cables on BNS pins 3 & 45 (refering to vendor) - can anyone confirm I used the correct ones ?
Thanks !!
On my VW T6.1 from 03/2021, I just retrofitted the front fog lighs + coding.
Unfortunately it doesn't work, and I'm getting crazy as I do not find the root cause.
Now I'm questionning :
- on which fuse are the fog lights connected ? No VW fuse diagram available :-(
- I connected the 2 cables on BNS pins 3 & 45 (refering to vendor) - can anyone confirm I used the correct ones ?
Thanks !!
T6.1 - Foglights Wiring Diagram
Wiring diagram for front foglights VIP Membership is required to download this document
What was the coding you did? Adaptation perhaps?
The wiring diagram suggests pins 40 (left) and 3 (right) (brown connector).
Erhan
Member
hello i am writing from turkey what pins are the bcm wiring plugged into for the fog lamp for the T6.1 thank you
T6.1 - Foglights Wiring Diagram
Wiring diagram for front foglights VIP Membership is required to download this documentwww.t6forum.com
Yaptığınız kodlama neydi? Adaptasyon belki?
Bağlantı şeması, 40 (sol) ve 3 (sağ) (kahverengi konektör) pinlerini önerir.
T6.1 - Foglights Wiring Diagram
Wiring diagram for front foglights VIP Membership is required to download this document
Yaptığınız kodlama neydi? Adaptasyon belki?
Bağlantı şeması, 40 (sol) ve 3 (sağ) (kahverengi konektör) pinlerini
hello Wiring diagram, you said 40 (left) and 3 (right) Which pin will go from switch to bcm?T6.1 - Foglights Wiring Diagram
Wiring diagram for front foglights VIP Membership is required to download this document
What was the coding you did? Adaptation perhaps?
The wiring diagram suggests pins 40 (left) and 3 (right) (brown connector).
T6.1 - LED Headlight Wiring Diagram
Wiring diagram for LED headlight VIP Membership is required to download this document
T6.1 - Halogen H7 Headlight Wiring Diagram
Wiring diagram for standard headlights VIP Membership is required to download this document

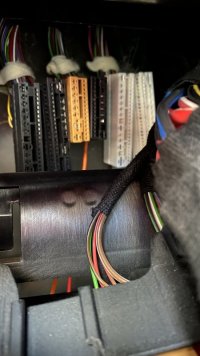

Could you please post a picture of the switch connector.
Erhan
Member
yes 9 pin is next to us 47 Virgo pin is not on the sideT6.1 - LED Headlight Wiring Diagram
Wiring diagram for LED headlight VIP Membership is required to download this documentI would expect there is only one free pin in the switch. If it's pin 9 - it connects to BCM pin 47.T6.1 - Halogen H7 Headlight Wiring Diagram
Wiring diagram for standard headlights VIP Membership is required to download this document
Could you please post a picture of the switch connector.
Pin 9 has already blue/yellow wire - goes to BCM pin 47?
The same channels as with VCDS.
Have a look here:
Aftermarket LED Grille DRL wiring
BCM does not support coding That's correct. T6.1 BCM has no codings. Everything is done via Adaptations - for that BCM more than 1500 channels to tweak.
I'm looking into this as a potential mod. I've just call Travelin-Lite. They won't break the kits out from the bumper upgrade
I understand the fog lamps themselves are the same as the T6 ones.
Could someone point me in the direction of where to get the wiring loom from please?
I understand the fog lamps themselves are the same as the T6 ones.
Could someone point me in the direction of where to get the wiring loom from please?
I'm looking into this as a potential mod. I've just call Travelin-Lite. They won't break the kits out from the bumper upgrade
I understand the fog lamps themselves are the same as the T6 ones.
Could someone point me in the direction of where to get the wiring loom from please?
Fog Light Wiring cable set for VW T6 SG, New Beetle 5C
Specific set of cables for retrofitting original fog lights for VW T6 SG, New Beetle 5C
www.kufatec.com
Erhan
Member
There is an error somewhere. It doesn't work.The same channels as with VCDS.
Have a look here:
Aftermarket LED Grille DRL wiring
BCM does not support coding That's correct. T6.1 BCM has no codings. Everything is done via Adaptations - for that BCM more than 1500 channels to tweak.

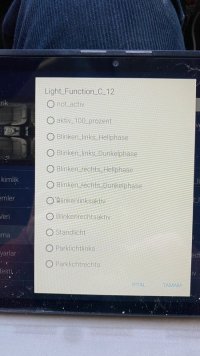

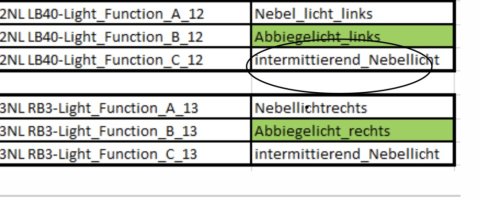

The adaptation - Light_Function_C_12 ?

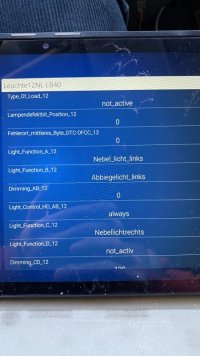

Please post Full Scan report so we can see how the van is configured.
There seem to several different BCMs in T6.1 depending on how van is equipped. There are at least two main variants: 2Q0 937 090 and 2Q5 937 090. Which makes me wonder what are the differences between variants...
