Load area LED bulbs go out after a few seconds...
- Thread starter SWF7Y
- Start date
VCDS - Channel 38 Central Electrics....
https://www.t6forum.com/threads/interior-lights.2144/#post-159789
https://www.t6forum.com/threads/interior-lights.2144/#post-159789Thanks for that. I'm a noob when it comes to VCDS so hopefully it won't be too difficult to find.VCDS - Channel 38 Central Electrics....
Hmmm... should be 10 minutes with factory settings. Is the battery charged? Van's energy management might have kicked in trying to save last bits of energy.
mmi is right... should be default value of 21 in Channel 38 which equates to 10.5 minutes..?
See whats in there and let us know....

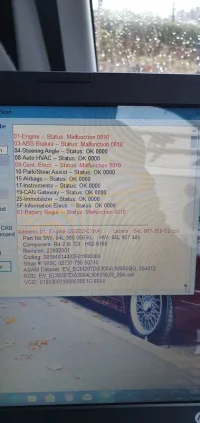

Code:
01-Engine -- Status: Malfunction 0010
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXHA) Labels:. 04L-907-309-V2.clb
Part No SW: 04L 906 056 KL HW: 04L 907 445
Component: R4 2.0l TDI H02 6166
Revision: 23002001
Coding: 00194014432501090000
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ECM20TDI03004L906056KL 004012
ROD: EV_ECM20TDI03004L906056JS_004.rod
VCID: 010930039009038E1C-8054
4 Faults Found:
15560 - EGR Sensor 1
P046C 00 [096] - Implausible Signal
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 2
Mileage: 176841 km
Date: 2046.01.07
Time: 10:33:19
Engine speed: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 0 km/h
Coolant temperature: 89 °C
Intake air temperature: 16 °C
Ambient air pressure: 990 mbar
Voltage terminal 30: 12.601 V
Unlearning counter according OBD: 20
Mass airflow sensor 1 bank 1 airflow: raw value: 0.0 mg/stroke
Exhaust recirc.valve 1 bank 1: posit.feedback - Spec.value: 4.66 %
Exhaust recirc.valve 1 bank 1: posit.feedback - Act.value: 16.00 %
Exhaust recirc.valve 1 bank 1: posit.feedback -Offset closed.: 0.00 %
Exhaust recirc.valve 1 bank 1: posit.feedback - Uncnd vlt: 2.566 V
EGR vacuum regulator solenoid valve 1 bank 1: res. Cooling mode stop: 2.280 V
EGR vacuum regulator solenoid valve 1 bank 1: res. Bypass operation stop: 2.569 V
15918 - Cylinder 2 Glow Plug Circuit (Q11)
P0672 00 [039] - Electrical Fault
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 1
Mileage: 181459 km
Date: 2049.01.00
Time: 11:40:28
Engine speed: 950.25 /min
Normed load value: 25.1 %
Vehicle speed: 0 km/h
Coolant temperature: 4 °C
Intake air temperature: 9 °C
Ambient air pressure: 1000 mbar
Voltage terminal 30: 11.843 V
Unlearning counter according OBD: 40
Preheat time: 2.5 s
Glow status: Post-heat
Extern.temp.sens.1 bank 1: raw value: 5.5 °C
33262 - Reductant System Performance Bank 1
P204F 00 [096] - Malfunction
Intermittent - Not Confirmed - Tested Since Memory Clear
31103 - SCR NOx Catalyst Bank 1
P20EE 00 [104] - Efficiency too Low
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 2
Fault Frequency: 121
Mileage: 170756 km
Date: 2045.01.03
Time: 06:14:25
Engine speed: 1998.00 /min
Normed load value: 60.0 %
Vehicle speed: 112 km/h
Coolant temperature: 91 °C
Intake air temperature: 13 °C
Ambient air pressure: 1000 mbar
Voltage terminal 30: 13.414 V
Unlearning counter according OBD: 40
Air mass at air mass meter 1: 172.8 kg/h
Extern.temp.sens.1 bank 1: raw value: 11.5 °C
Mass airflow sensor 1 bank 1 airflow: raw value: 719.8 mg/stroke
Throttl.valve adapt. 1 bank 1: posit feedback - Act.value: 55.47 %
NOx sensor before SCR cat conv: offset correction factor: 0 ppm
NOx sensor after SCR cat conv: offset correction factor: 111 ppm
Reducing agent quality sensor: urea concentration: 0.00 %
Reducing agent quality sensor: raw temperature value: 0.0 °C
Readiness: N/A
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7E0-907-37x-MK100ESC.clb
Part No SW: 7E0 907 379 P HW: 7E0 907 379 M
Component: ESC H06 0133
Revision: 00000000 Serial number: 42556000000133
Coding: 347E4098656784852C7E0276A68621D3790000
Shop #: WSC 02739 790 50316
ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
VCID: 3F8DF6FBA67DB57E2A-806A
1 Fault Found:
0397 - TPMS Warning
C102D F0 [008] - Pressure Loss
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 3
Fault Frequency: 1
Reset counter: 243
Mileage: 180951 km
Date: 2020.11.17
Time: 10:57:28
-------------------------------------------------------------------------------
Address 04: Steering Angle (G085) Labels:* 6R0-959-654.clb
Part No SW: 6R0 959 654 HW: 6R0 959 654
Component: LENKW.SENSOR H07 0070
Serial number: 20091613470889
Coding: 01
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LWSKLOVW25X 005001
ROD: EV_LWSKLOVW25X.rod
VCID: 7EF34BFFE1F77C7661-802A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:| 7E5-907-047.clb
Part No SW: 7E0 907 047 AJ HW: 7E0 907 047 AJ
Component: Climatic-T5 H22 0708
Revision: 00001002
Coding: 0000000003
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_ClimaticT5 A01003
ROD: EV_ClimaT5Basis.rod
VCID: 72EB6FCFA5AF281615-8026
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:. 7E0-937-BCM-V1.clb
Part No SW: 7E0 937 090 B HW: 7E0 937 090
Component: BCM PQ25 Max4 H81 0744
Revision: B9081001 Serial number: 0982 263161351
Coding: B8FC793A0A61341193284F746EEB9EFD0F84710F60CC6D60320400230840
Shop #: WSC 02737 534 739161
VCID: 2A5BB7AF45FF20D66D-807E
Subsystem 1 - Part No: 5K7 955 559 C Labels: 5K7-955-559.CLB
Component: RLS 010916 04 42 0106
Coding: 0228EE
Subsystem 2 - Part No SW: 7E0 959 801 P HW: 7E0 959 801 P
Component: J386__TSG_FT 003 0653
Serial number: KU0KU014091662583900
Coding: 1400B0
Subsystem 3 - Part No SW: 7E0 959 802 P HW: 7E0 959 802 P
Component: J387__TSG_BT 003 0653
Serial number: KU0KU013091662578345
Coding: 0400A0
Subsystem 4 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 5 - Part No: 1K0 951 605 C
Component: LIN BACKUP HO H05 1501
Coding: 000000
Subsystem 6 - Part No: 7E1 951 172
Component: DWA-Sensor 00 001 0104
Coding: 000000
Subsystem 7 - Part No SW: 7E0 959 442 HW: 7E0 959 442 Labels: 3C8-959-537.CLB
Component: E221__MFL-DC1 H02 0103
Serial number: 29160001731720096355
Coding: B0FFFF
3 Faults Found:
03434 - Output for Terminal 30G Interior Lights
007 - Short to Ground - Intermittent
Freeze Frame:
Fault Status: 00100111
Fault Priority: 3
Fault Frequency: 1
Reset counter: 245
Mileage: 181443 km
Time Indication: 0
Date: 2020.12.19
Time: 12:23:13
03302 - Response Closing Status of Passenger's Door
008 - Implausible Signal - Intermittent
Freeze Frame:
Fault Status: 00101000
Fault Priority: 2
Fault Frequency: 1
Reset counter: 234
Mileage: 180770 km
Time Indication: 0
Date: 2020.11.12
Time: 14:08:51
03224 - Play Protection Active
000 - - - Intermittent
Freeze Frame:
Fault Status: 00100000
Fault Priority: 3
Fault Frequency: 5
Reset counter: 242
Mileage: 181060 km
Time Indication: 0
Date: 2020.11.23
Time: 14:22:39
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 7E0-919-475.clb
Part No SW: 7E0 919 475 T HW: 1Q0 919 475
Component: PARKHILFE 4K H03 0212
Revision: -------- Serial number: 32961622103525
Coding: 108008
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_VW75XParkAssis4K 001013
ROD: EV_VW75XParkAssis4K_001_VN75.rod
VCID: 4385FA0BCA95D19E4E-8016
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5K0-959-655.clb
Part No SW: 7E0 959 655 G HW: 7E0 959 655 G
Component: VW10Airbag021 H08 0018
Revision: -------- Serial number: 003V30024HV5
Coding: 000000000000000000000000000000003231
Shop #: WSC 02734 790 50316
ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
ROD: EV_AirbaVW10BPAVN750.rod
VCID: 3A7B87EFBD5F90561D-806E
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1
Part No SW: 7E0 920 970 S HW: 7E0 920 970 S
Component: KOMBI H03 1104
Serial number: 00000000000000
Coding: 140B010300
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05733
ROD: EV_Kombi_UDS_VDD_RM09_005_VW31.rod
VCID: 3A7B87EFBD5F90561D-806E
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7E0-909-901.clb
Part No SW: 7E0 909 901 HW: 7E0 937 090
Component: GW-K-CAN TP20 H81 0744
Revision: B9081001
Coding: 042305
Shop #: WSC 02737 534 739161
VCID: 68DF0DA79B73D2C6BB-803C
No fault code found.
-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H03 1104
Serial number:
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
ROD: EV_Immo_UDS_VDD_RM09_VW31.rod
VCID: 6ADB77AF8D7FE0D6AD-803E
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 5G0-035-MIB-ENT2.clb
Part No SW: 1K8 035 150 L HW: 1K8 035 150 L
Component: MU-E-D-ER 055 7067
Serial number: 01091600013094
Coding: 065700003C00000041111101008000001F0000C60000010001
Shop #: WSC 02737 790 50316
ASAM Dataset: EV_MUEnt4CGen2LGE 001032
ROD: EV_MUEnt4CGen2LGE_VW32.rod
VCID: 2E53BBBF71174CF6B1-807A
No fault code found.
-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840) Labels:. 1K0-907-534.clb
Part No SW: 7E0 907 534 HW: 7E0 937 090
Component: Batt.regelung H81 0744
Serial number: 0982 263161351
Coding: 030B1A73
Shop #: WSC 02739 790 00000
VCID: 68DF0DA79B73D2C6BB-803C
Subsystem 1 - Part No SW: 7E0 915 181 K HW: 7E0 915 181 K
Component: J367-BDMConti H03 1050
Serial number: 75410903001609021417
1 Fault Found:
02256 - Quiescent Current
001 - Upper Limit Exceeded - Intermittent
Freeze Frame:
Fault Status: 00100001
Fault Priority: 7
Fault Frequency: 86
Reset counter: 241
Mileage: 0 km
Time Indication: 0
Date: 2020.07.27
Time: 23:32:42
[Code/]Any chance to post the VIN of the van to better identify the type of the van - just leave 5 last digits off. Also what's the mileage in the scan?
Got a bit curious of seeing in the scan: 121 incidents
of fault 31103 - SCR NOx Catalyst Bank 1 - P20EE 00 [104] - Efficiency too LowBut you don't have the EML light on? (Yellow engine symbol)
Sorry about poor wording. Actually it was the beginning of the VIN that's the interesting bit. By looking the other components I'm assuming it's actually?
WV1ZZZ7HZHH***** thus N1 class (=panel van/Kombi) and model year 2017.
Fault 31103 indicates elevated NOx level - which was an annoying issue. However, recent engine software should have taken care of that issue. The update should have fixed also false alarm of fault 33262, which also was logged.
The interesting bit is that it looks like your engine has got an update - which woke up my curiosity.
Yours:
Part No SW: 04L 906 056 KL HW: 04L 907 445
Component: R4 2.0l TDI H02 6166
Without update it would have been:
Was the van with you at 106103 miles (170756km)?

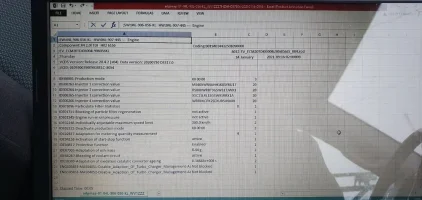

Any chance you could do the following with VCDS and post the result file?
VCDS -> Applications -> Controller Channel Map ->
Tick/fill boxes as above and hit Go
VCDS flashes screens for a moment (when finished hit "Done, Go Back") and there will be files adpmap-01-... and blockmap-01-... in folder C:\Ross-Tech\VCDS\Logs\....
Then just upload/attach the files here.
-------------------
Apologies deviating from your original problem. However, the
WV1ZZZ7HZHH***** thus N1 class (=panel van/Kombi) and model year 2017.
Fault 31103 indicates elevated NOx level - which was an annoying issue. However, recent engine software should have taken care of that issue. The update should have fixed also false alarm of fault 33262, which also was logged.
The interesting bit is that it looks like your engine has got an update - which woke up my curiosity.
Yours:
Part No SW: 04L 906 056 KL HW: 04L 907 445
Component: R4 2.0l TDI H02 6166
Without update it would have been:
Was the van with you at 106103 miles (170756km)?
Any chance you could do the following with VCDS and post the result file?
VCDS -> Applications -> Controller Channel Map ->
Tick/fill boxes as above and hit Go
VCDS flashes screens for a moment (when finished hit "Done, Go Back") and there will be files adpmap-01-... and blockmap-01-... in folder C:\Ross-Tech\VCDS\Logs\....
Then just upload/attach the files here.
-------------------
Apologies deviating from your original problem. However, the
03434 - Output for Terminal 30G Interior Lights
007 - Short to Ground - Intermittent
suggests there was possibly too low voltage for a moment: Date: 2020.12.19 Time: 12:23:13.
03434 - Output for Terminal 30G Interior Lights
007 - Short to Ground - Intermittent
Could suggest a fault on the lighting circuit
007 - Short to Ground - Intermittent
Could suggest a fault on the lighting circuit
Thanks. Do you know how I may be able to investigate this?
Can you also upload the actual file?
I'd start by removing all the bulbs you've replaced with the originals and see if the lights stay on as they should. If they do, replace each bulb individually and test after each.
How do I do this?
Similar threads
