High beam assist
- Thread starter Dockie
- Start date
Have you had a new windscreen, or done any work around the rear view mirror or the overhead console?
There maybe something loose or come adrift in the mirror. The camera for the HBA is in the mirror housing, I’ve had a fault on a van in the past where the plug from the camera to the loom had parted. I can’t open the pdf of your scan for some reason, so I’m guessing.

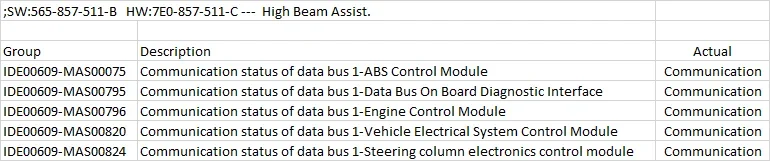

here’s a copy of the scan.
I’ve check the wiring ect.
I have just noticed the warning logo on the cluster only comes on when its too close. it seems a bit off too.
Code:
Thursday,18,September,2025,17:46:57:16365
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 25.3.2.0 (x64) HEX-V2 CB: 0.4671.4
Data version: 20250822 DS365.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZMX018042 License Plate:
Chassis Type: 7H-VN46 (3Q0)
Scan: 01 02 03 08 09 10 13 15 17 18 19 20 44 55 5F 69 75 D6 D7
VIN: WV1ZZZ7HZMX018042 Mileage: 85207km-52945miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: Malfunction 0010
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
20-High Beam Assist. -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: Malfunction 0010
5F-Information Electr. -- Status: OK 0000
69-Trailer -- Status: OK 0000
75-Telematics -- Status: Malfunction 0010
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DMZA) Labels: None
Part No SW: 05L 906 023 HW: 05L 907 309 F
Component: R4 2.0l BTD H80 1160
Revision: N1H80--- CVN: FACD043BF3218A0EA3C795CF64CF85E9A3C795CF43FB2DAA
Coding: 0025003C0364050800000000000000000000000000000000
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_ECM20BTD01105L906023 006005
ROD: EV_ECM20BTD011_VN46.rod
VCID: 6597B189C5E238F21D5-8030
VINID: 9E606AAAA1D8A9DA0004800408EB49036A
1 Fault Found
23765 - Control unit for information electronics 1
U1054 00 [00100000] - No Communication
[Information electronics control module 1No Communication]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 39
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:46
Engine speed: 858.00 /min
Normed load value: 13.3 %
Vehicle speed: 0 km/h
Coolant temperature: 81 °C
Intake air temperature: 21 °C
Ambient air pressure: 990 mbar
Voltage terminal 30: 13.260 V
Unlearning counter according OBD: 39
Limitation: accelerator pedal: 0.0 Nm
Cruise Control System (CCS): status-Bits 0-7: 2
selected gear-Bits 0-7: 0
Readiness: 0000 0000
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:* Redir Fail!
Part No SW: 7LA 907 426 G HW: 7LA 907 426 G
Component: AC Manuell H01 0602
Coding: A03110000810230001000800504001050000000000001000A00000000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_AirCondiBHTCVN54XT6PA 001002
ROD: EV_AirCondiBHTCVN54XT6PA_VN46.rod
VCID: 47CB5B015F2E0AE20F9-8012
Rear air conditioning block 1:
1 Fault Found
459025 - Databus
U1121 00 [00001000] - Missing Message
[Radio - kein Signal/Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:49
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 R HW: 2Q0 907 572 B
Component: ACCCONTIMQB H03 0372
Dataset Number: V03935335RG 0001
Coding: 3200670A49FF8748949C815580508700000000000000000004
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_ACCMRRCONTIVW376 003016
ROD: EV_ACCMRRCONTIVW376_VW41.rod
VCID: 43D34F116B1626C2D31-8016
3 Faults Found
1127 - Databus
U1121 00 [00001000] - Missing Message
[FAULT_TIMEOUT_PSD_04]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:46
Voltage terminal 15: 13.4 V
Control Module temperature: 45 °C
Vehicle speed: 0.00 m/s
Longitudinal acceleration: 0.25 m/s²
Adaptive distance regulation: status: ACC_StandBy
1218 - Databus
U1121 00 [00001000] - Missing Message
[FAULT_TIMEOUT_PSD_05]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:47
Voltage terminal 15: 13.3 V
Control Module temperature: 45 °C
Vehicle speed: 0.00 m/s
Longitudinal acceleration: 0.22 m/s²
Adaptive distance regulation: status: ACC_StandBy
1219 - Databus
U1121 00 [00001000] - Missing Message
[FAULT_TIMEOUT_PSD_06]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:46
Voltage terminal 15: 13.4 V
Control Module temperature: 45 °C
Vehicle speed: 0.00 m/s
Longitudinal acceleration: 0.25 m/s²
Adaptive distance regulation: status: ACC_StandBy
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 7LA-920-XXX-V1.clb-SRI3
Part No SW: 7LA 920 320 A HW: 7LA 920 320 A
Component: KOMBI 502 5175
Coding: 24A5000824802600018862011001000080601F02
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_DashBoardVDDMQBA0 001044
ROD: EV_DashBoardVDDMQBA0_001_SK25.rod
VCID: 353721C935C288726D5-8060
6 Faults Found
16777018 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[BAP_Audio_0x31 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:52
16777022 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[BAP_NAV SD_0x32 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 3
Reset counter: 137
Mileage: 85166 km
Date: 2025.09.18
Time: 13:22:05
9456433 - Key
B104B 31 [00001000] - No Signal
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 4
Fault Frequency: 1
Mileage: 85129 km
Date: 2025.09.18
Time: 11:31:20
9456681 - Key
B104C 29 [00001000] - Implausible Signal
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Mileage: 85000 km
Date: 2025.09.17
Time: 19:32:29
16777056 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[BAP_SDS_0x46 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:52
16711685 - Databus
U1121 00 [00001000] - Missing Message
[Datenbus fehlende Botschaft]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 137
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:50
-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364) Labels:| 5WA-963-27x-V1.clb
Part No SW: 5WA 963 271 C HW: 5WA 963 271 C
Component: STH-VW37x 006 0012
Serial number: 000000000000109
Coding: 3143221854121512DCE519
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AuxilHeateWOSVW38X 002009
ROD: EV_AuxilHeateWOSVW38X_002_VW41.rod
VCID: 4CC1642D4648E9BA22B-8018
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:* None
Part No SW: 3Q0 907 530 AG HW: 3Q0 907 530 C
Component: GW MQB High 521 5423
Serial number: 10032111600798 Dataset Number: V03935338TK 0001
Coding: 030100344F05730401100058100F00010001070000000000000000000000
Shop #: WSC 00035 377 00145
GVL: 01443C0000000100C00090008004C80000000000000000000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_SK25.rod
VCID: 74B1DCCD7E38D17A9AB-8020
Generator:
Component: 5-00-11-00-04
Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 3G0 959 442 N HW: 3G0 959 442 N
Component: E221__MFL-PR6 H07 0110
Serial number: PR6-0440066049213920
Coding: 2C0D00
Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 7E0 915 181 N HW: 7E0 915 181 N
Component: J367-BDMConti H03 1052
Serial number: 773433010021030200F5
2 Faults Found
131699 - Control unit for information electronics 1
U1054 00 [00001000] - No Communication
[Timeout Knoten 0x73 / 5F - Steuergerät für Informationselektronik 1]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:48
Terminal 30 power supply: 13.3 V
Terminal 15: On
8531970 - Quiescent Current
U1406 00 [00001000] - Too High
[Ruhestrom oberer Grenzwert überschritten]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 7
Fault Frequency: 1
Reset counter: 129
Mileage: 84856 km
Date: 2025.09.16
Time: 06:10:00
Terminal 30 power supply: 12.3 V
Terminal 15: OFF
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:* None
Part No SW: 565 857 511 B HW: 7E0 857 511 C
Component: FLA H10 0010
Revision: AA001001
Coding: 040401E200000100000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HighBeamAssisAU33X 001019
ROD: EV_HighBeamAssisAU33X_VN46.rod
VCID: 1D67D969AD323032855-8048
No fault code found.
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 55: Headlight Range (J745) Labels:| 7P6-907-357.clb
Part No SW: 7P6 907 357 E HW: 7P6 907 357 A
Component: AFS-ECU H07 0080
Revision: -------- Serial number: -------------- Dataset Number: V03935338PG 0001
Coding: 0C8E020009210003
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HeadlRegulAFSMQBMAX 001001
ROD: EV_HeadlRegulAFSMQBMAX_SK25.rod
VCID: 41DF4519710A34D2C1D-8014
1 Fault Found
13705487 - Databus
U1121 00 [00001000] - Missing Message
[PSD Datenbus fehlende Botschaft]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 136
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:47
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 75: Telematics (J949) Labels:* 5WA-035-28X-V1.clb
Part No SW: 5WA 035 284 G HW: 5WA 035 284 B
Component: OCUGen3High H20 0143
Serial number: 0000000102VIFW8 Dataset Number: V03935418CQ 0001
Coding: 06462000196898209005460160002607
ASAM Dataset: EV_OCUGen3High 003007
ROD: EV_OCUGen3High_003_VW41.rod
VCID: 4ACD62354C3CF78A107-801E
2 Faults Found
0081 - Databus
U1121 00 [00001000] - Missing Message
[Ethernet Databus missing message - Infotainment Unit]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 39
Mileage: 85003 km
Date: 2025.09.17
Time: 22:05:47
Voltage terminal 30: 13.4 V
1644017 - Online Services
B1915 F1 [00001000] - Temporary Function Restriction due to Battery Budget
[Functional restriction due to insufficient power budget]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 15
Reset counter: 36
Mileage: 84906 km
Date: 2025.09.16
Time: 16:41:21
Voltage terminal 30: 12.6 V
Remaining long term energy budget: 3596 mAh
Remaining short term energy budget: 4 mAh
Wake up cycles counter: 5447
-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: None
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1L H08 9202
ASAM Dataset: EV_LLPGen3LKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1R H08 9202
ASAM Dataset: EV_LLPGen3RKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
End----------(Elapsed Time: 01:32, VBatt start/end: 11.9V/11.8V)-----------
------------------------------16 Faults Found------------------------------
=======================================================
Controller Software Versions:
ECU 1 = Engine 1160
ECU 2 = Auto Trans 3702
ECU 3 = ABS Brakes 0800
ECU 4 = Auto HVAC 0602
ECU 5 = Cent. Elect. 0943
Sub ECU 5 > 1 = Cent. Elect. 0206
Sub ECU 5 > 2 = Cent. Elect. 0002
Sub ECU 5 > 3 = Cent. Elect. 0002
Sub ECU 5 > 4 = Cent. Elect. 0316
Sub ECU 5 > 5 = Cent. Elect. 0314
ECU 6 = Park/Steer Assist 0073
ECU 7 = Auto Dist. Reg 0372
ECU 8 = Airbags 0506
ECU 9 = Instruments 5175
ECU 10 = Aux. Heat 0012
ECU 11 = CAN Gateway 5423
Sub ECU 11 > 1 = CAN Gateway 0-04
Sub ECU 11 > 2 = CAN Gateway 0110
Sub ECU 11 > 3 = CAN Gateway 1052
ECU 12 = High Beam Assist. 0010
ECU 13 = Steering Assist 7160
ECU 14 = Headlight Range 0080
ECU 15 = Information Electr. 0841
Sub ECU 15 > 1 = Information Electr. 9216
Sub ECU 15 > 2 = Information Electr. 4031
ECU 16 = Trailer 0040
ECU 17 = Telematics 0143
ECU 18 = Light Ctrl Left 2 9202
ECU 19 = Light Ctrl Right 2 9202
Controllers with no Label file: 01 02 09 15 19 20 5F D6
Last edited by a moderator:
Does the "push" work otherwise - turn on high beam?
Why the above controllers were left out - the HBA definitely needs both to be present?
Please post
1) full VCDS Auto-Scan
2) an old full VCDS Auto-Scan (as old as you can find)
Engine running the following:
3) blockmap of 03-ABS brakes
4) blockmap of 09-Central Electrics
5) blockmap of 19-Gateway
6) blockmap of 20-High beam assist
How-to create a blockmap file:
For the single controller address for each map: 03, 09, 19, 20
[VCDS]
[Applications]
[Controller Channel Map]
- Single Controller Address = nn
- Login or security access code: Leave blank
- Function: Measuring values
- Output: CSV file
[Go]
The result CSV files are saved into dircetory C:\Ross-Tech\VCDS\Logs
Thanks i took the ones that weren’t in fault out but I will do it tonight when I get home n
I don’t have many on files as I have just recently updated vcds and it removed all the old files.
Yes the stalk works fine in both directions. I still get the full beam logo but not the headlight assist one.
If it's the same old computer - all the old scans are still in folder C:\Ross-Tech\VCDS\Scans
hi MMIIf it's the same old computer - all the old scans are still in folder C:\Ross-Tech\VCDS\Scans
this is the oldest scan i have. the older ones have been wiped off in the upgrade.
i haven't made any changes to the van with VCDS, only used it for code reading.
just having tea and the going to do the block measuring.
Code:
Monday,15,September,2025,19:27:37:16365
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 25.3.2.0 (x64) HEX-V2 CB: 0.4671.4
Data version: 20250822 DS365.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZMX018042 License Plate:
Chassis Type: 7H-VN46 (3Q0)
Scan: 01 02 03 08 09 10 13 15 17 18 19 20 44 55 5F 69 75 D6 D7
VIN: WV1ZZZ7HZMX018042 Mileage: 84856km-52727miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: Malfunction 0010
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
69-Trailer -- Status: OK 0000
75-Telematics -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DMZA) Labels:. 05L-907-309-V1.clb
Part No SW: 05L 906 023 HW: 05L 907 309 F
Component: R4 2.0l BTD H80 1160
Revision: N1H80--- CVN: FACD043BF3218A0EA3C795CF64CF85E9A3C795CF43FB2DAA
Coding: 0025003C0364050800000000000000000000000000000000
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_ECM20BTD01105L906023 006005
ROD: EV_ECM20BTD011_VN46.rod
VCID: 6597B189C5E238F21D5-8030
VINID: 9E606AAAA1D8A9DA0004800408EB49036A
1 Fault Found
43736 - Internal Control Module
P0606 00 [00100100] - Processor Fault
[ECM/PCM Processor]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Reset counter: 40
Mileage: 0 km
Date: 2000.00.00
Time: 00:00:00
Engine speed: 0.00 /min
Normed load value: 0.0 %
Vehicle speed: 255 km/h
Coolant temperature: 76 C
Intake air temperature: -40 C
Ambient air pressure: 980 mbar
Voltage terminal 30: 12.460 V
Unlearning counter according OBD: 40
Engine status: COENG_STANDBY
Engine status-Test_Program_Co Eng st COMPU VERB UBYTE: 0
Readiness: 0110 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels: None
Part No SW: 0DV 300 046 B HW: 0GC 927 711 H
Component: GSG DQ500 H06 3702
Revision: 00H06V13 CVN: 5EB78E29
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021.rod
VCID: 392F2DF919DA6C1289D-806C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7LX-614-517-V1.clb
Part No SW: 7LA 614 517 B HW: 7LA 614 517
Component: ESC_high H01 0800
Serial number: 08510117210303
Coding: 30552752C848EE8D0C54E4A813687726392724B8
Shop #: WSC 05232 004 1048576
ASAM Dataset: EV_Brake1ESP90iBOSCHVN46X 003012
ROD: EV_Brake1ESP90iBOSCHVN46X_003.rod
VCID: 3E253EE500F44B2ABCF-806A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:* Redir Fail!
Part No SW: 7LA 907 426 G HW: 7LA 907 426 G
Component: AC Manuell H01 0602
Coding: A03110000810230001000800504001050000000000001000A00000000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_AirCondiBHTCVN54XT6PA 001002
ROD: EV_AirCondiBHTCVN54XT6PA_VN46.rod
VCID: 47CB5B015F2E0AE20F9-8012
Rear air conditioning block 1:
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 2QX-937-BCM-V1.clb
Part No SW: 2Q0 937 090 C HW: 2Q0 937 090 C
Component: BCM A0 Std+ H11 0943
Serial number: 00102108200492 Dataset Number: V03935338JL 0001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_BCMA0 206001
ROD: EV_BCMA0_206_VW27.rod
VCID: 323D1AD5C4AC9F4A487-8066
Rain/Light Recognition Sensor:
Subsystem 1 - Part No SW: 5Q0 955 559 C HW: 5Q0 955 559 C Labels: 5Q0-955-547.CLB
Component: RLS 054 0206
Serial number: S3Y21M02D25H22M50S41
Coding: 0018EE
Driver door control module:
Subsystem 2 - Part No SW: 7L1 959 405 B HW: 7L1 959 163 B
Component: FHSG_DRV 001 0002
Serial number: 00000000000048725409
Coding: 1F000F
Front passenger door control module:
Subsystem 3 - Part No SW: 7L1 959 406 B HW: 7L1 959 164 B
Component: FHSG_PSG 001 0002
Serial number: 00000000000049142084
Coding: 050007
Anti-theft alarm system sensor:
Subsystem 4 - Part No SW: 5Q0 951 172 HW: 5Q0 951 172
Component: Sensor, DWA 005 0316
Serial number: 000000000ZY2102008BD
Alarm horn:
Subsystem 5 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A
Component: Sirene, DWA 005 0314
Serial number: 00000000000049391482
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb
Part No SW: 5QA 919 294 J HW: 5QA 919 294
Component: PDC 8 Kanal H08 0073
Serial number: 000150058321074 Dataset Number: V03935313KK 0001
Coding: 8471151811
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_EPHVA18AU3700000 009053
ROD: EV_EPHVA18AU3700000_009_SK25.rod
VCID: 53F37F519B76B642631-8006
No fault code found.
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 R HW: 2Q0 907 572 B
Component: ACCCONTIMQB H03 0372
Dataset Number: V03935335RG 0001
Coding: 3200670A49FF8748949C815580508700000000000000000004
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_ACCMRRCONTIVW376 003016
ROD: EV_ACCMRRCONTIVW376_VW41.rod
VCID: 43D34F116B1626C2D31-8016
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 2Q0-959-655.clb
Part No SW: 2Q0 959 655 AD HW: 2Q0 959 655 AD
Component: VW22Airbag 016 0506
Revision: -------- Dataset Number: V03935308TZ 0001
Coding: 8800C00000000000800000CF008C40000065
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_AirbaVW22BPAVW27X 001022
ROD: EV_AirbaVW22BPAVW27X.rod
VCID: 7F5B03E1477E8222F79-802A
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 7LA-920-XXX-V1.clb-SRI3
Part No SW: 7LA 920 320 A HW: 7LA 920 320 A
Component: KOMBI 502 5175
Coding: 24A5000824802600018862011001000080601F02
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_DashBoardVDDMQBA0 001044
ROD: EV_DashBoardVDDMQBA0_001_SK25.rod
VCID: 353721C935C288726D5-8060
No fault code found.
-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364) Labels:| 5WA-963-27x-V1.clb
Part No SW: 5WA 963 271 C HW: 5WA 963 271 C
Component: STH-VW37x 006 0012
Serial number: 000000000000109
Coding: 3143221854121512DCE519
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AuxilHeateWOSVW38X 002009
ROD: EV_AuxilHeateWOSVW38X_002_VW41.rod
VCID: 4CC1642D4648E9BA22B-8018
1 Fault Found
0381 - Heater Support Pump
P10FA 00 [01101100] - No Activation
[FAILURE HUP]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 18
Mileage: 84790 km
Date: 2025.09.15
Time: 12:10:18
Parking heater: operating condition: active: control pause
8F
Coolant temperature of parking heater: 82 C
Coolant temperature: 82 C
Engine running status: not detected
Fuel level: 19 l
Heating performance: 0 %
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 AG HW: 3Q0 907 530 C
Component: GW MQB High 521 5423
Serial number: 10032111600798 Dataset Number: V03935338TK 0001
Coding: 030100344F05730401100058100F00010001070000000000000000000000
Shop #: WSC 00035 377 00145
GVL: 01443C0000000100C00090008004C80000000000000000000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_SK25.rod
VCID: 74B1DCCD7E38D17A9AB-8020
Generator:
Component: 5-00-11-00-04
Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 3G0 959 442 N HW: 3G0 959 442 N Labels: 3C8-959-537.CLB
Component: E221__MFL-PR6 H07 0110
Serial number: PR6-0440066049213920
Coding: 2C0D00
Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 7E0 915 181 N HW: 7E0 915 181 N
Component: J367-BDMConti H03 1052
Serial number: 773433010021030200F5
No fault code found.
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:* None
Part No SW: 565 857 511 B HW: 7E0 857 511 C
Component: FLA H10 0010
Revision: AA001001
Coding: 040401E200000100000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HighBeamAssisAU33X 001019
ROD: EV_HighBeamAssisAU33X_VN46.rod
VCID: 1D67D969AD323032855-8048
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 2N0-909-143.clb
Part No SW: 7LA 909 144 G HW: 7LA 909 144 D
Component: EPS_MQB_ZFLS 751 7160
Dataset Number: V03935340DA 0001
Coding: 0106
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_SteerAssisMNB 002015
ROD: EV_SteerAssisMNB.rod
VCID: 46D55605582413EAF4F-8012
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J745) Labels:| 7P6-907-357.clb
Part No SW: 7P6 907 357 E HW: 7P6 907 357 A
Component: AFS-ECU H07 0080
Revision: -------- Serial number: -------------- Dataset Number: V03935338PG 0001
Coding: 0C8E020009210003
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HeadlRegulAFSMQBMAX 001001
ROD: EV_HeadlRegulAFSMQBMAX_SK25.rod
VCID: 41DF4519710A34D2C1D-8014
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 3G5-035-MIB-HGH3.clb
Part No SW: 3G5 035 816 D HW: 3G5 035 816
Component: MU-O-ND-EU H56 0841
Serial number: WG8LGM180221000 Dataset Number: V03935422K 0001
Coding: 64600008000020000000000000000000000000000000000000
ASAM Dataset: EV_MUOIMQB 001002
ROD: EV_MUOIMQB_001_VN46.rod
VCID: 2A0D02B5EC7CD78AF07-807E
Display and control head 1 for information electronics:
Subsystem 1 - Part No SW: 5G6 919 606 B HW: 5G6 919 606 B
Component: ABT_High-2 H61 9216
Serial number: VWZ6ZJY0430689
Data carrier:
Subsystem 2 - Part No SW: V03 959 809 CP HW: -----------
Component: EU 2021 --- 4031
Serial number: --------------------
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:| 5H0-907-383.clb
Part No SW: 5H0 907 383 HW: 5H0 907 383
Component: Anhaenger H09 0040
Serial number: 000000000005712 Dataset Number: V03935309CF 0001
Coding: 0100000202001300
ASAM Dataset: EV_TrailFunctGener3Hella 001009
ROD: EV_TrailFunctGener3Hella_VW41.rod
VCID: 6B83C7B123060E824B1-803E
No fault code found.
-------------------------------------------------------------------------------
Address 75: Telematics (J949) Labels:* 5WA-035-28X-V1.clb
Part No SW: 5WA 035 284 G HW: 5WA 035 284 B
Component: OCUGen3High H20 0143
Serial number: 0000000102VIFW8 Dataset Number: V03935418CQ 0001
Coding: 06462000196898209005460160002607
ASAM Dataset: EV_OCUGen3High 003007
ROD: EV_OCUGen3High_003_VW41.rod
VCID: 4ACD62354C3CF78A107-801E
No fault code found.
-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1L H08 9202
ASAM Dataset: EV_LLPGen3LKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1R H08 9202
ASAM Dataset: EV_LLPGen3RKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
End----(Elapsed Time: 01:32, VBatt start/end: 11.5V/11.5V. VIgn 11.8V)-----
------------------------------2 Faults Found-------------------------------
Last edited by a moderator:
current scanIf it's the same old computer - all the old scans are still in folder C:\Ross-Tech\VCDS\Scans
Code:
Friday,19,September,2025,23:06:26:16365
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 25.3.2.0 (x64) HEX-V2 CB: 0.4671.4
Data version: 20250822 DS365.0
www.Ross-Tech.com
VIN: WV1ZZZ7HZMX018042 License Plate:
Mileage: 85419km-53076mi Repair Order:
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
Chassis Type: 7H-VN46 (3Q0)
Scan: 01 02 03 08 09 10 13 15 17 18 19 20 44 55 5F 69 75 D6 D7
VIN: WV1ZZZ7HZMX018042 Mileage: 85419km-53076miles
01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
20-High Beam Assist. -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
69-Trailer -- Status: OK 0000
75-Telematics -- Status: Malfunction 0010
D6-Light Ctrl Left 2 -- Status: OK 0000
D7-Light Ctrl Right 2 -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DMZA) Labels:. 05L-907-309-V1.clb
Part No SW: 05L 906 023 HW: 05L 907 309 F
Component: R4 2.0l BTD H80 1160
Revision: N1H80--- CVN: FACD043BF3218A0EA3C795CF64CF85E9A3C795CF43FB2DAA
Coding: 0025003C0364050800000000000000000000000000000000
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_ECM20BTD01105L906023 006005
ROD: EV_ECM20BTD011_VN46.rod
VCID: 6597B189C5E238F21D5-8030
VINID: 9E606AAAA1D8A9DA0004800408EB49036A
No fault code found.
Readiness: 0010 0001
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels:. 0BH-927-711.clb
Part No SW: 0DV 300 046 B HW: 0GC 927 711 H
Component: GSG DQ500 H06 3702
Revision: 00H06V13 CVN: 5EB78E29
Coding: 0014
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDQ500021 001001
ROD: EV_TCMDQ500021.rod
VCID: 392F2DF919DA6C1289D-806C
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 7LX-614-517-V1.clb
Part No SW: 7LA 614 517 B HW: 7LA 614 517
Component: ESC_high H01 0800
Serial number: 08510117210303
Coding: 30552752C848EE8D0C54E4A813687726392724B8
Shop #: WSC 05232 004 1048576
ASAM Dataset: EV_Brake1ESP90iBOSCHVN46X 003012
ROD: EV_Brake1ESP90iBOSCHVN46X_003.rod
VCID: 3E253EE500F44B2ABCF-806A
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301) Labels:* Redir Fail!
Part No SW: 7LA 907 426 G HW: 7LA 907 426 G
Component: AC Manuell H01 0602
Coding: A03110000810230001000800504001050000000000001000A00000000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_AirCondiBHTCVN54XT6PA 001002
ROD: EV_AirCondiBHTCVN54XT6PA_VN46.rod
VCID: 47CB5B015F2E0AE20F9-8012
Rear air conditioning block 1:
No fault code found.
-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels: 2QX-937-BCM-V1.clb
Part No SW: 2Q0 937 090 C HW: 2Q0 937 090 C
Component: BCM A0 Std+ H11 0943
Serial number: 00102108200492 Dataset Number: V03935338JL 0001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_BCMA0 206001
ROD: EV_BCMA0_206_VW27.rod
VCID: 323D1AD5C4AC9F4A487-8066
Rain/Light Recognition Sensor:
Subsystem 1 - Part No SW: 5Q0 955 559 C HW: 5Q0 955 559 C Labels: 5Q0-955-547.CLB
Component: RLS 054 0206
Serial number: S3Y21M02D25H22M50S41
Coding: 0018EE
Driver door control module:
Subsystem 2 - Part No SW: 7L1 959 405 B HW: 7L1 959 163 B
Component: FHSG_DRV 001 0002
Serial number: 00000000000048725409
Coding: 1F000F
Front passenger door control module:
Subsystem 3 - Part No SW: 7L1 959 406 B HW: 7L1 959 164 B
Component: FHSG_PSG 001 0002
Serial number: 00000000000049142084
Coding: 050007
Anti-theft alarm system sensor:
Subsystem 4 - Part No SW: 5Q0 951 172 HW: 5Q0 951 172
Component: Sensor, DWA 005 0316
Serial number: 000000000ZY2102008BD
Alarm horn:
Subsystem 5 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A
Component: Sirene, DWA 005 0314
Serial number: 00000000000049391482
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 5Q0-919-294.clb
Part No SW: 5QA 919 294 J HW: 5QA 919 294
Component: PDC 8 Kanal H08 0073
Serial number: 000150058321074 Dataset Number: V03935313KK 0001
Coding: 8471151811
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_EPHVA18AU3700000 009053
ROD: EV_EPHVA18AU3700000_009_SK25.rod
VCID: 53F37F519B76B642631-8006
No fault code found.
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 R HW: 2Q0 907 572 B
Component: ACCCONTIMQB H03 0372
Dataset Number: V03935335RG 0001
Coding: 3200670A49FF8748949C815580508700000000000000000004
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_ACCMRRCONTIVW376 003016
ROD: EV_ACCMRRCONTIVW376_VW41.rod
VCID: 43D34F116B1626C2D31-8016
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 2Q0-959-655.clb
Part No SW: 2Q0 959 655 AD HW: 2Q0 959 655 AD
Component: VW22Airbag 016 0506
Revision: -------- Dataset Number: V03935308TZ 0001
Coding: 8800C00000000000800000CF008C40000065
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_AirbaVW22BPAVW27X 001022
ROD: EV_AirbaVW22BPAVW27X.rod
VCID: 7F5B03E1477E8222F79-802A
No fault code found.
-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 7LA-920-XXX-V1.clb-SRI3
Part No SW: 7LA 920 320 A HW: 7LA 920 320 A
Component: KOMBI 502 5175
Coding: 24A5000824802600018862011001000080601F02
Shop #: WSC 00035 377 00131
ASAM Dataset: EV_DashBoardVDDMQBA0 001044
ROD: EV_DashBoardVDDMQBA0_001_SK25.rod
VCID: 353721C935C288726D5-8060
2 Faults Found
16777018 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[BAP_Audio_0x31 keine Kommunikation]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Reset counter: 140
Mileage: 85413 km
Date: 2025.09.19
Time: 21:22:34
9456681 - Key
B104C 29 [00001000] - Implausible Signal
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 1
Mileage: 85408 km
Date: 2025.09.19
Time: 20:02:50
-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364) Labels:| 5WA-963-27x-V1.clb
Part No SW: 5WA 963 271 C HW: 5WA 963 271 C
Component: STH-VW37x 006 0012
Serial number: 000000000000109
Coding: 3143221854121512DCE519
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AuxilHeateWOSVW38X 002009
ROD: EV_AuxilHeateWOSVW38X_002_VW41.rod
VCID: 4CC1642D4648E9BA22B-8018
No fault code found.
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:* None
Part No SW: 3Q0 907 530 AG HW: 3Q0 907 530 C
Component: GW MQB High 521 5423
Serial number: 10032111600798 Dataset Number: V03935338TK 0001
Coding: 030100344F05730401100058100F00010001070000000000000000000000
Shop #: WSC 00035 377 00145
GVL: 01443C0000000100C00090008004C80000000000000000000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_SK25.rod
VCID: 74B1DCCD7E38D17A9AB-8020
Generator:
Component: 5-00-11-00-04
Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 3G0 959 442 N HW: 3G0 959 442 N Labels: 3C8-959-537.CLB
Component: E221__MFL-PR6 H07 0110
Serial number: PR6-0440066049213920
Coding: 2C0D00
Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 7E0 915 181 N HW: 7E0 915 181 N
Component: J367-BDMConti H03 1052
Serial number: 773433010021030200F5
No fault code found.
-------------------------------------------------------------------------------
Address 20: High Beam Assist. (J844) Labels:* None
Part No SW: 565 857 511 B HW: 7E0 857 511 C
Component: FLA H10 0010
Revision: AA001001
Coding: 040401E200000100000000
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HighBeamAssisAU33X 001019
ROD: EV_HighBeamAssisAU33X_VN46.rod
VCID: 1D67D969AD323032855-8048
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:| 2N0-909-143.clb
Part No SW: 7LA 909 144 G HW: 7LA 909 144 D
Component: EPS_MQB_ZFLS 751 7160
Dataset Number: V03935340DA 0001
Coding: 0106
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_SteerAssisMNB 002015
ROD: EV_SteerAssisMNB.rod
VCID: 46D55605582413EAF4F-8012
No fault code found.
-------------------------------------------------------------------------------
Address 55: Headlight Range (J745) Labels:| 7P6-907-357.clb
Part No SW: 7P6 907 357 E HW: 7P6 907 357 A
Component: AFS-ECU H07 0080
Revision: -------- Serial number: -------------- Dataset Number: V03935338PG 0001
Coding: 0C8E020009210003
Shop #: WSC 00035 377 00145
ASAM Dataset: EV_HeadlRegulAFSMQBMAX 001001
ROD: EV_HeadlRegulAFSMQBMAX_SK25.rod
VCID: 41DF4519710A34D2C1D-8014
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:| 3G5-035-MIB-HGH3.clb
Part No SW: 3G5 035 816 D HW: 3G5 035 816
Component: MU-O-ND-EU H56 0841
Serial number: WG8LGM180221000 Dataset Number: V03935422K 0001
Coding: 64600008000020000000000000000000000000000000000000
ASAM Dataset: EV_MUOIMQB 001002
ROD: EV_MUOIMQB_001_VN46.rod
VCID: 2A0D02B5EC7CD78AF07-807E
Display and control head 1 for information electronics:
Subsystem 1 - Part No SW: 5G6 919 606 B HW: 5G6 919 606 B
Component: ABT_High-2 H61 9216
Serial number: VWZ6ZJY0430689
Data carrier:
Subsystem 2 - Part No SW: V03 959 809 CP HW: -----------
Component: EU 2021 --- 4031
Serial number: --------------------
No fault code found.
-------------------------------------------------------------------------------
Address 69: Trailer (J345) Labels:| 5H0-907-383.clb
Part No SW: 5H0 907 383 HW: 5H0 907 383
Component: Anhaenger H09 0040
Serial number: 000000000005712 Dataset Number: V03935309CF 0001
Coding: 0100000202001300
ASAM Dataset: EV_TrailFunctGener3Hella 001009
ROD: EV_TrailFunctGener3Hella_VW41.rod
VCID: 6B83C7B123060E824B1-803E
No fault code found.
-------------------------------------------------------------------------------
Address 75: Telematics (J949) Labels:* 5WA-035-28X-V1.clb
Part No SW: 5WA 035 284 G HW: 5WA 035 284 B
Component: OCUGen3High H20 0143
Serial number: 0000000102VIFW8 Dataset Number: V03935418CQ 0001
Coding: 06462000196898209005460160002607
ASAM Dataset: EV_OCUGen3High 003007
ROD: EV_OCUGen3High_003_VW41.rod
VCID: 4ACD62354C3CF78A107-801E
1 Fault Found
1644017 - Online Services
B1915 F1 [00001001] - Temporary Function Restriction due to Battery Budget
[Functional restriction due to insufficient power budget]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 18
Reset counter: 40
Mileage: 85339 km
Date: 2025.09.19
Time: 17:32:57
Voltage terminal 30: 14.0 V
Remaining long term energy budget: 3600 mAh
Remaining short term energy budget: 0 mAh
Wake up cycles counter: 5493
-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: None
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1L H08 9202
ASAM Dataset: EV_LLPGen3LKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 992 941 571 AE HW: 992 941 571 A
Component: LED1R H08 9202
ASAM Dataset: EV_LLPGen3RKEBODPO68X 001003
ROD: EV_LLPGen3LKEBODPO68X_001_VW41.rod
VCID: 6597B189C5E238F21D5-8030
No fault code found.
End----------(Elapsed Time: 01:29, VBatt start/end: 13.6V/13.6V)-----------
------------------------------3 Faults Found-------------------------------
Last edited by a moderator:
Well, at first glance nothing obvious. The 20-High Beam Assist seems to be happy - all communications ok.
Any codings/adaptations done?
Please post adaptation maps of 09 and 20.
[VCDS]
[Applications]
[Controller Channel Map]
- Single Controller Address = nn
- Login or security access code: Leave blank
- Function: Adaptations
- Output: CSV file
[Go]
Any codings/adaptations done?
Please post adaptation maps of 09 and 20.
[VCDS]
[Applications]
[Controller Channel Map]
- Single Controller Address = nn
- Login or security access code: Leave blank
- Function: Adaptations
- Output: CSV file
[Go]
Ok. A question:
It seems the light switch in position OFF when blockmap-09 was captured - because the following were logged?
Please verify the switch is in position Auto and redo the 09-blockmap.
| IDE05742-IDE02515 | Light switch position-Low beam | Not operated |
| IDE05742-IDE05323 | Light switch position-Fog lamp | Not operated |
| IDE05742-MAS00063 | Light switch position-OFF | operated |
| IDE05742-MAS02462 | Light switch position-Automatic high beam assist | Not operated |
| IDE05742-MAS03835 | Light switch position-Position lamps | Not operated |
| IDE05742-MAS03836 | Light switch position-Rear fog lamp | Not operated |
Under the adaptations the following suspicious one was captured:
| ENG141650-MAS10514-Fernlicht_assistent-Expanded high beam control | NOT-DEFINED |
Could you please check what options are available - please post them - I would expect to see something similar to "AFS: FLA: Fernlicht ueber AFS" to be available?
VCDS > Select Control Module > 09-Central electrics > Security Access > 31347 > Adaptations > ....
Here’s what I have.Ok. A question:
It seems the light switch in position OFF when blockmap-09 was captured - because the following were logged?
Please verify the switch is in position Auto and redo the 09-blockmap.
IDE05742-IDE02515 Light switch position-Low beam Not operated IDE05742-IDE05323 Light switch position-Fog lamp Not operated IDE05742-MAS00063 Light switch position-OFF operated IDE05742-MAS02462 Light switch position-Automatic high beam assist Not operated IDE05742-MAS03835 Light switch position-Position lamps Not operated IDE05742-MAS03836 Light switch position-Rear fog lamp Not operated
Under the adaptations the following suspicious one was captured:
ENG141650-MAS10514-Fernlicht_assistent-Expanded high beam control NOT-DEFINED
Could you please check what options are available - please post them - I would expect to see something similar to "AFS: FLA: Fernlicht ueber AFS" to be available?
VCDS > Select Control Module > 09-Central electrics > Security Access > 31347 > Adaptations > ....
Hmmm... the switch confirmed
Adaptation matches with similar vans (LED headlights)
| IDE05742-MAS02462 | Light switch position-Automatic high beam assist | operated |
Adaptation matches with similar vans (LED headlights)
| ENG141650-MAS10514-Fernlicht_assistent-Expanded high beam control | AFS: FLA: Fernlicht ueber AFS |
Ignition was cycled after the adaptation change?
Similar threads
