Egr problem

John-K · 25 Jun 2025

Hello
I have just changed my egr valve (about 1000km since) and since that my glow plug lamp and engine lamp keeps flashing 1-3 times a day. What can be the problem?

Code:

Chassis Type: 7H-VN75 (7E0)
Scan: 01 02 03 04 05 08 09 13 15 17 18 19 22 25 5F 61 69 6E 8C BD
          C6 0B

VIN: WV1ZZZ7HZGH086356   Mileage: 211800km-131606miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: Cannot be reached 1100
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: Malfunction 0010
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: Malfunction 0010
6E-Ctrl Head Roof -- Status: OK 0000
8C-HV Battery -- Status: Cannot be reached 1100
BD-Hi Volt. Batt. Charg. -- Status: Cannot be reached 1100
C6-Batt. Chrg. -- Status: Cannot be reached 1100
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXFA)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KF    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 6185
   Revision: 23002001
   Coding: 0025401C637601080000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KF 004015
   ROD: EV_ECM20TDI03004L906056KF.rod
   VCID: 7BA3F34C0367D7C2DA5-802E
   VINID: 9E606AAAA1D8A976002060C5187A4145E7

2 Faults Found:
15560 - EGR Sensor 1
          P046C 00 [01101100] - Implausible Signal
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 211781 km
                    Date: 2107.01.25
                    Time: 20:46:47

                    Engine speed: 0.00 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 84 °C
                    Intake air temperature: 16 °C
                    Ambient air pressure: 950 mbar
                    Voltage terminal 30: 12.203 V
                    Unlearning counter according OBD: 40
                    Mass airflow sensor 1 bank 1 airflow: raw value: 0.0 mg/stroke
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Specified value: -2.53 %
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: 29.47 %
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Offset closed: 0.00 %
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Raw voltage: 2.829 V
                    EGR vacuum regulator solenoid valve 1 bank 1: res. Cooling mode stop: 2.439 V
                    EGR vacuum regulator solenoid valve 1 bank 1: res. Bypass operation stop: 2.650 V

23902 - Particle Filter
          P2463 00 [10101111] - Excessive Soot Accumulation
          MIL ON - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 211777 km
                    Date: 2107.01.25
                    Time: 20:39:04

                    Engine speed: 822.50 /min
                    Normed load value: 26.3 %
                    Vehicle speed: 0 km/h
                    Coolant temperature: 40 °C
                    Intake air temperature: 22 °C
                    Ambient air pressure: 950 mbar
                    Voltage terminal 30: 14.304 V
                    Unlearning counter according OBD: 40
                    Counter for regeneration time of particulate filter: 62 s
                    Particle filter: kilometers since last regeneration: 36.0
                    Particle filter: soot mass measured: 34.71 g
                    Particle filter: soot mass calculated: 40.41 g
                    Particl.filt.: differential pressur.sensor 1 bank 1: dyn.offset: 0.7 mbar
                    Particle filter: field regeneration lock status: 8200

Readiness: N/A

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743)       Labels:. 0BH-927-711.clb
   Part No SW: 0BT 300 011 S    HW: 0BH 927 711 G
   Component: DSG DQ500-7A  H11 5204
   Revision: 00H11V01    CVN: 7EA862C0
   Coding: 0014
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMDQ500021 001001
   ROD: EV_TCMDQ500021.rod
   VCID: 3E253A5850F502EABDB-806A

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 Q    HW: 7E0 907 379 N
   Component: ESC           H05 0132
   Revision: 00000000    Serial number: 63165000000224
   Coding: 517E8098256A84848A78017BA48821A678F700
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 40D944A02A01741ACF7-8014

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 28111513470336
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5FA581075C2EAFDB-802A

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth.
Cannot be reached

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AF    HW: 7E0 907 047 AF
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis_VN75.rod
   VCID: 6E85CA184015B26A6DB-803A

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 351150414
   Coding: 62A0303A0A2120B3002809742D2B8CD49FB4708F60464D60320400220840
   Shop #: WSC 50300 001 104857
   VCID: 6889BC0062716C5A277-803C

   Subsystem 1 - Part No SW: 7E0 959 801 H    HW: 7E0 959 801 H  Labels: 7E0-959-80X-V2.CLB
   Component: J386__TSG_FT  003 8654
   Serial number: KU0KU008121553425626
   Coding: 0400A0

   Subsystem 2 - Part No SW: 7E0 959 802 H    HW: 7E0 959 802 H  Labels: 7E0-959-80X-V2.CLB
   Component: J387__TSG_BT  003 8654
   Serial number: KU0KU008121553421237
   Coding: 1400A0

   Subsystem 3 - Part No SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 29150002404580125486
   Coding: B4FFFF

2 Faults Found:
00978 - Lamp for Low Beam; Left (M29)
            010 - Open or Short to Plus - Intermittent
             Freeze Frame:
                    Fault Status: 00101010
                    Fault Priority: 3
                    Fault Frequency: 81
                    Reset counter: 44
                    Mileage: 211238 km
                    Time Indication: 0
                    Date: 2019.11.08.
                    Time: 08:53:26

00979 - Lamp for Low Beam; Right (M31)
            010 - Open or Short to Plus - Intermittent
             Freeze Frame:
                    Fault Status: 00101010
                    Fault Priority: 3
                    Fault Frequency: 71
                    Reset counter: 44
                    Mileage: 211238 km
                    Time Indication: 0
                    Date: 2019.11.08.
                    Time: 08:53:26


-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 A    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0110
   Serial number: 21121577112711 Dataset Number: 7E0114v____ 0009
   Coding: 00005800FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001004
   ROD: EV_ACCBEGVW361.rod
   VCID: 343118706EB9D8BA5BF-8060

2 Faults Found:
1098 - Databus
          U1123 00 [00001000] - Received Error Message
          [FAULT_CIS_STPL_AAG_FAIL]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 38
                    Mileage: 211649 km
                    Date: 2025.06.20.
                    Time: 15:52:13

                    Control Module temperature: 26 °C
                    Voltage terminal 15: 14.4 V
                    Vehicle speed: 1.97 m/s
                    Acceleration: -0.08 m/s²

1072 - Databus
          U1123 00 [00001000] - Received Error Message
          [FAULT_BCM_BRAKELIGHT_FAIL]
          Intermittent - Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 38
                    Mileage: 211649 km
                    Date: 2025.06.20.
                    Time: 15:52:13

                    Control Module temperature: 25 °C
                    Voltage terminal 15: 14.3 V
                    Vehicle speed: 1.95 m/s
                    Acceleration: -0.11 m/s²


-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 E    HW: 7E0 959 655 E
   Component: VW10Airbag00A 008 0016
   Revision: --------    Serial number: 003PJ0010WVP Dataset Number: 7E0003V____ 0743
   Coding: 000000000000000000000000000000003041
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 38292C4072D13CDA777-806C

   Crash sensor for side airbag: driver side:
   Serial number: 3495ZRB405V3K8QGFPMB

   Crash sensor for side airbag: passenger side:
   Serial number: 3505ZRB405T3K8QG1P08

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 870 L    HW: 7E0 920 870 L
   Component: KOMBI         H05 1008
   Serial number: 00000000000000
   Coding: 160B010300
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05730
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW32.rod
   VCID: 323D1E6894ADD68A493-8066

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:| 7E0-963-27X-18.clb
   Part No SW: 7E0 963 272 A    HW: 7E0 963 272 A
   Component: STH-T5GP2     002 0007
   Coding: 5C01
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AuxilParkiHeateWOST5G2 001010
   ROD: EV_AuxilParkiHeateWOST5G2.rod
   VCID: 2A0D0608BC7D9E4AF13-807E

   Auxiliary heating remote control:
   Subsystem 1 - Part No SW: 5Q0 963 513 A    HW: 5Q0 963 513 A
   Component: R149 T91-LIN  003 0301
   Serial number: 00000000000001261233

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042205
   Shop #: WSC 50300 001 104857
   VCID: 6889BC0062716C5A277-803C

4 Faults Found:
03992 - High-voltage battery charger
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 242
                    Mileage: 211224 km
                    Time Indication: 0
                    Date: 2019.11.07.
                    Time: 15:17:05

00455 - Control Module for Access and Start Control; Comfort CAN (J518)
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 242
                    Mileage: 211224 km
                    Time Indication: 0
                    Date: 2019.11.07.
                    Time: 15:17:02

03713 - Control Module for HV Battery Management
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 242
                    Mileage: 211224 km
                    Time Indication: 0
                    Date: 2019.11.07.
                    Time: 15:17:05

04028 - High-voltage battery charger
            004 - No Signal/Communication
             Freeze Frame:
                    Fault Status: 01100100
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 242
                    Mileage: 211224 km
                    Time Indication: 0
                    Date: 2019.11.07.
                    Time: 15:17:05


-------------------------------------------------------------------------------
Address 22: AWD (J492)       Labels:| 0CQ-907-554-V1.clb
   Part No SW: 0AY 907 554 L    HW: 0CQ 525 130 A
   Component: Haldex4Motion H53 7620
   Serial number: HA1-00003.11.15 Dataset Number: v1260x015G0 0000
   Coding: 0501
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AllWheelContrHA1VW37X 002015
   ROD: EV_AllWheelContrHA1VW37X_002_VW36.rod
   VCID: 54F178F0CE79F8BA7BF-8000

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 1008
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW32.rod
   VCID: 6A8DC6087CFD5E4A313-803E

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-ENT2.clb
   Part No SW: 1K8 035 150 E    HW: 1K8 035 150 E
   Component: MU-E-D-ER     857 6495
   Serial number: 06111500010057 Dataset Number: 5K7CV1v____ 0001
   Coding: 065700003C00000041111101008000001F0000840000010000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_MUEnt4CGen2LGE 001025
   ROD: EV_MUEnt4CGen2LGE_VW32.rod
   VCID: 270BFF3CAF6FA322EED-8072

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 351150414
   Coding: 330B1A73
   Shop #: WSC 02739 790 00000
   VCID: 6889BC0062716C5A277-803C

   Subsystem 1 - Part No SW: 7E0 915 181 G    HW: 7E0 915 181 G
   Component: J367-BDM  H08 0223
   Serial number: 52334N37031260561571

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 H    HW: 1K0 907 383 G
   Component: Anhaenger     H12 0130
   Revision: 3B001001    Serial number: 00000388054637
   Coding: 410D000103000000
   Shop #: WSC 02739 790 00000
   VCID: 323D1E68942DD68A493-8066

4 Faults Found:
02564 - Trailer; Left Tail Lamps (M60)
            007 - Short to Ground - Intermittent - MIL ON
             Freeze Frame:
                    Fault Status: 10100111
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 38
                    Mileage: 211649 km
                    Time Indication: 0
                    Date: 2019.11.11.
                    Time: 15:37:38

02563 - Trailer; Right Tail Lamps (M61)
            010 - Open or Short to Plus - MIL ON
             Freeze Frame:
                    Fault Status: 11101010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 253
                    Mileage: 211649 km
                    Time Indication: 0
                    Date: 2019.11.11.
                    Time: 15:37:38

02566 - Trailer; Left Turn Signals (M62)
            010 - Open or Short to Plus - MIL ON
             Freeze Frame:
                    Fault Status: 11101010
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 253
                    Mileage: 211649 km
                    Time Indication: 0
                    Date: 2019.11.11.
                    Time: 15:37:38

00532 - Supply Voltage B+
            011 - Open Circuit - MIL ON
             Freeze Frame:
                    Fault Status: 11101011
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 253
                    Mileage: 211649 km
                    Time Indication: 0
                    Date: 2019.11.11.
                    Time: 15:52:14


-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702)       Labels:. 7E5-919-037-W2.clb
   Part No SW: 7E5 919 037 G    HW: 7E5 919 037 G
   Component: Dachdisplay   H15 0185
   Revision: 10100011    Serial number: 411451
   Coding: 000103
   Shop #: WSC 02759 790 00000
   VCID: 353725746543C1B26C1-8060

No fault code found.

-------------------------------------------------------------------------------
Address 8C: HV Battery
Cannot be reached

-------------------------------------------------------------------------------
Address BD: Hi Volt. Batt. Charg.
Cannot be reached

-------------------------------------------------------------------------------
Address C6: Batt. Chrg.
Cannot be reached

End----------(Elapsed Time: 01:37, VBatt start/end: 14.7V/14.8V)-----------
------------------------------14 Faults Found------------------------------

manfrotto · 25 Jun 2025

Did you recalbrate it after it was replaced?

Dellmassive · 25 Jun 2025

Blocked dpf id assume?

23902 - Particle Filter
P2463 00 [10101111] - Excessive Soot Accumulation

.

Does it Regen regularly?

Do you take it for long drives or short trips?

John-K · 25 Jun 2025

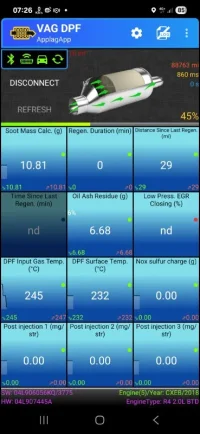

yes i did adapt it when i installed it. I must use the vcds to regen the dpf now because it doesent regen by it self after the egr swap

Dellmassive · 25 Jun 2025

The ECU must think it's too clogged to safely Regen.

See if you can get some DPF data.

Ie vag DPF.

..

John-K · 25 Jun 2025

Address 01: Engine (04L 906 056 KF)

12:01:46
IDE00434 Particle filter: soot mass calculated 29.37 g
IDE00435 Particle filter: soot mass measured 29.36 g
IDE00436 Particle filter: kilometers since last regeneration 33.5
IDE01407 Particle filter: fuel consumption since last regeneration 4.22 l
IDE04652 Exhaust gas jet volume in particle filter 95.1 m /h
IDE04653 Simulated particle filter surface temperature 528.0 C
IDE06059 Particulate filter: oil ash mass 91.37 g
IDE06060 Particulate filter ash load limit 110.00 g
IDE07984 Particle sensor: cleaning deviation reaction time 0.000
IDE07987 Particle sensor: exhaust temperature 30.6 C
IDE07990 Particle sensor: surface temperature 336.8 C
IDE09420 Heat quantity for dewpoint end: particle sensor 100.00 %

I did a regen via vcds yesterday

Dellmassive · 25 Jun 2025

Is this reading very high?

IDE06059 Particulate filter: oil ash mass 91.37 g
IDE06060 Particulate filter ash load limit 110.00 g

Dellmassive · 25 Jun 2025

@mmi

Any input, looking at the data?

mmi · 26 Jun 2025

John-K said:
15560 - EGR Sensor 1
P046C 00 [01101100] - Implausible Signal
Intermittent - Confirmed - Tested Since Memory Clear

John-K said:
Exhaust recirc.valve 1 bank 1: posit.feedback - Specified value: -2.53 %
Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: 29.47 %

John-K said:
it doesent regen by it self after the egr swap

My guess is that it won't regen because of unreliable signal from the EGR position sensor.

Perhaps you could run engine's built-in diagnostics to verfiy that EGR valve actually does it's sweep? A wiring issue perhaps?

C

Thread 'EGR Valve Self Test Procedure (IDE00242)- P046C?'

5 Sep 2023

So, I've been getting the all too common P046C fault code along with P2457 (Insufficient EGR Cooling Performance). Neither alone will flag a check engine light but combined they sometimes seem to. To try to figure out what is going on, I ran an EGR Flow test on VCDS using instruction from @mmi on this rather excellent page:

[T6_measured] 01-Engine - Built-in test for EGR

T6.1 DNAA engine The test runs differently than on T6 CXxx engines - less cycles. Instructions of post #1 still apply.

www.t6forum.com

I didn't spot much relating to the EGR funtion but the EGR valve reading itself was interesting. Basically, it didn't appear to be fully closing.

My confidence with...

John-K said:
05-Acc/Start Auth. -- Status: Cannot be reached 1100

John-K said:
8C-HV Battery -- Status: Cannot be reached 1100
BD-Hi Volt. Batt. Charg. -- Status: Cannot be reached 1100
C6-Batt. Chrg. -- Status: Cannot be reached 1100

Looks like quite a few non-existing T6 controllers were added into vehicle Gateway installation list - please remove all those.

John-K · 26 Jun 2025

mmi said:
My guess is that it won't regen because of unreliable signal from the EGR position sensor.

Perhaps you could run engine's built-in diagnostics to verfiy that EGR valve actually does it's sweep? A wiring issue perhaps?

C

Thread 'EGR Valve Self Test Procedure (IDE00242)- P046C?'

5 Sep 2023

So, I've been getting the all too common P046C fault code along with P2457 (Insufficient EGR Cooling Performance). Neither alone will flag a check engine light but combined they sometimes seem to. To try to figure out what is going on, I ran an EGR Flow test on VCDS using instruction from @mmi on this rather excellent page:

[T6_measured] 01-Engine - Built-in test for EGR

T6.1 DNAA engine The test runs differently than on T6 CXxx engines - less cycles. Instructions of post #1 still apply.

www.t6forum.com

I didn't spot much relating to the EGR funtion but the EGR valve reading itself was interesting. Basically, it didn't appear to be fully closing.

My confidence with...

Cuiken

egr vcds

Replies: 63

Forum: Engine, Gearbox, Exhaust, Drivetrain

Looks like quite a few non-existing T6 controllers were added into vehicle Gateway installation list - please remove all those.

Here are the files. Hopefully you can see something wrong in them

mmi · 26 Jun 2025

It seems that the EGR valve doesn't close completely (0% = no recirculation) - a sticky EGR valve?? Was it OEM VW part?

See below specified (blue) vs. actual (red) value - they should overlap 100% of the time.

mmi said:
A wiring issue perhaps?

Obviously not as the actual value varies most of the part as commanded (specified) - otherwise would have expected to see a static value.

Could you please do the test also engine not running (just ignition on)?

John-K · 28 Jun 2025

mmi said:
It seems that the EGR valve doesn't close completely (0% = no recirculation) - a sticky EGR valve?? Was it OEM VW part?

See below specified (blue) vs. actual (red) value - they should overlap 100% of the time.

View attachment 293375

View attachment 293376

Obviously not as the actual value varies most of the part as commanded (specified) - otherwise would have expected to see a static value.

Could you please do the test also engine not running (just ignition on)?

Here are the files from the test with the engine off
The EGR valve i installed in the car was from Elstock

mmi · 28 Jun 2025

John-K said:
Here are the files from the test with the engine off
The EGR valve i installed in the car was from Elstock

Here are the plots - well, consistent with plots engine running. The EGR valve does not move correctly, even got stuck for a couple of seconds (e.g. from 18 to 32 seconds).

Also it seems that the DPF doesn't clear very well any more. In the blockmap engine running was indicated fairly high pressure across the DPF. Would have expected to be no more than 15 mbar at these conditions.

IDE00021	Engine speed	829	/min
IDE00347	Air mass: actual value:	10.81	g/s
IDE07744	Particle filter: air pressure sensor 1 bank 1: raw value	28.9	mbar
IDE04090	Exhaust temperature bank 1	S1/S2/S3/S4: / 193/170/158/141 °C

Possibly the DPF is simply at end of it's service life - as the van has done quite a few miles.

IDE06059	Particulate filter: oil ash mass	91.42	g
IDE06060	Particulate filter ash load limit	110	g

Dellmassive · 29 Jun 2025

mmi said:
Here are the plots - well, consistent with plots engine running. The EGR valve does not move correctly, even got stuck for a couple of seconds (e.g. from 18 to 32 seconds).

View attachment 293644

View attachment 293645

Also it seems that the DPF doesn't clear very well any more. In the blockmap engine running was indicated fairly high pressure across the DPF. Would have expected to be no more than 15 mbar at these conditions.

IDE00021 Engine speed 829 /min
IDE00347 Air mass: actual value: 10.81 g/s
IDE07744 Particle filter: air pressure sensor 1 bank 1: raw value 28.9 mbar
IDE04090 Exhaust temperature bank 1 S1/S2/S3/S4: / 193/170/158/141 °C

Possibly the DPF is simply at end of it's service life - as the van has done quite a few miles.

IDE06059 Particulate filter: oil ash mass 91.42 g
IDE06060 Particulate filter ash load limit 110 g

That's awesome data analysis @mmi

Si it's a non genuine EGR? How much?

You might to get a new OEM one and fit.?

John-K · 7 Jul 2025

Dellmassive said:
That's awesome data analysis @mmi

Si it's a non genuine EGR? How much?

You might to get a new OEM one and fit.?

Yes it was a non genuine egr valve. I have now cleaned and flushed the old original egr valve, and installer it again but im still getting the flashing glow lamp and limp mode. Someone suggested that mightbe the DPFE could be bad. Does that sound right?
Faults Found:

13169 - Mass Air Flow Sensor (G70)
P0101 00 [01100100] - Implausible Signal
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 212622 km
Date: 2108.01.07
Time: 12:56:14

Engine speed: 1485.25 /min
Normed load value: 0.0 %
Vehicle speed: 81 km/h
Coolant temperature: 87 °C
Intake air temperature: 24 °C
Ambient air pressure: 960 mbar
Voltage terminal 30: 14.273 V
Unlearning counter according OBD: 40
Mass airflow sensor 1 bank 1 airflow: raw value: 409.0 mg/stroke
Standardized air flow ratio: 1.348 counts
Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: -0.97 %
Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %
Charge air pressure: specified value: 0.620 bar
Absolute intake pressure: 114 kPa abs
Mean injection quantity: 0 mg/stroke

25215 - EGR System
P0402 00 [01100101] - Excessive Flow
Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 1
Mileage: 212620 km
Date: 2108.01.07
Time: 12:54:25

Engine speed: 1452.00 /min
Normed load value: 99.2 %
Vehicle speed: 78 km/h
Coolant temperature: 87 °C
Intake air temperature: 30 °C
Ambient air pressure: 960 mbar
Voltage terminal 30: 14.257 V
Unlearning counter according OBD: 40
EGR travel diagnosis: strongly increased NOx emission: 0.00 kg/h
Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: -17.51 %
EGR travel diagnosis: marginally increased NOx emission: 40.90 kg/h
Mass airflow sensor 1 bank 1 airflow: raw value: 318.2 mg/stroke
Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %
Charge press. ctrl deviation after throttle valve bank 1-Pressure_16_signed_10_mbar: 733.9 mbar
O2 sens. 1 bank 1 upstrm oxi cat: raw value: 0.799 counts

Readiness: N/A

mmi · 7 Jul 2025

John-K said:
I have now cleaned and flushed the old original egr valve, and installer it again

The logged fault code above are now different than in original post on 25th June
Please redo the engine blockmaps and the EGR tests -
1) ign on engine not running
2) engine idling

John-K said:
im still getting the flashing glow lamp and limp mode.

Hmmm... neither of the faults above is identified as the source of flashing glow lamp - both are "Not confirmed". Is this correct scan??

John-K · 7 Jul 2025

mmi said:
The logged fault code above are now different than in original post on 25th June
Please redo the engine blockmaps and the EGR tests -
1) ign on engine not running
2) engine idling

Hmmm... neither of the faults above is identified as the source of flashing glow lamp - both are "Not confirmed". Is this correct scan??

her are from engine not running

John-K · 7 Jul 2025

A

John-K said:
her are from engine not running

And here is with engine running

John-K · 7 Jul 2025

And a full scan

Monday,07,July,2025,14:53:29:11121
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 11 x64
VCDS Version: 25.3.0.4 (x64) HEX-V2 CB: 0.4660.4
Data version: 20250311 DS365.0
www.Ross-Tech.com

Dealer/Shop Name: Rudi & Skogum Bygg AS

VIN: WV1ZZZ7HZGH086356 License Plate: HZ31591
Mileage: 212640km-132128mi Repair Order:

Code:

--------------------------------------------------------------------------------
--------------------------------------------------------------------------------


Chassis Type: 7H-VN75 (7E0)
Scan: 01 02 03 04 08 09 13 15 17 18 19 22 25 5F 61 69 6E 0B

VIN: WV1ZZZ7HZGH086356   Mileage: 212640km-132128miles

01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
69-Trailer -- Status: OK 0000
6E-Ctrl Head Roof -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (2D2D2-CXFA)       Labels:. 04L-907-309-V2.clb
   Part No SW: 04L 906 056 KF    HW: 04L 907 445
   Component: R4 2.0l TDI   H02 6185
   Revision: 23002001
   Coding: 0025401C637601080000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ECM20TDI03004L906056KF 004015
   ROD: EV_ECM20TDI03004L906056KF.rod
   VCID: 7BA3F34C0367D7C2DA5-802E
   VINID: 9E606AAAA1D8A976002060C5187A4145E7

2 Faults Found:
13169 - Mass Air Flow Sensor (G70)
          P0101 00 [01100100] - Implausible Signal
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 212622 km
                    Date: 2108.01.07
                    Time: 12:56:14

                    Engine speed: 1485.25 /min
                    Normed load value: 0.0 %
                    Vehicle speed: 81 km/h
                    Coolant temperature: 87  C
                    Intake air temperature: 24  C
                    Ambient air pressure: 960 mbar
                    Voltage terminal 30: 14.273 V
                    Unlearning counter according OBD: 40
                    Mass airflow sensor 1 bank 1 airflow: raw value: 409.0 mg/stroke
                    Standardized air flow ratio: 1.348 counts
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: -0.97 %
                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %
                    Charge air pressure: specified value: 0.620 bar
                    Absolute intake pressure: 114 kPa abs
                    Mean injection quantity: 0 mg/stroke

25215 - EGR System
          P0402 00 [01100100] - Excessive Flow
          Intermittent - Not Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Priority: 2
                    Fault Frequency: 1
                    Mileage: 212620 km
                    Date: 2108.01.07
                    Time: 12:54:25

                    Engine speed: 1452.00 /min
                    Normed load value: 99.2 %
                    Vehicle speed: 78 km/h
                    Coolant temperature: 87  C
                    Intake air temperature: 30  C
                    Ambient air pressure: 960 mbar
                    Voltage terminal 30: 14.257 V
                    Unlearning counter according OBD: 40
                    EGR travel diagnosis: strongly increased NOx emission: 0.00 kg/h
                    Exhaust recirc.valve 1 bank 1: posit.feedback - Actual value: -17.51 %
                    EGR travel diagnosis: marginally increased NOx emission: 40.90 kg/h
                    Mass airflow sensor 1 bank 1 airflow: raw value: 318.2 mg/stroke
                    Throttl.valve adapt. 1 bank 1: posit feedback - Actual value: 0.00 %
                    Charge press. ctrl deviation after throttle valve bank 1-Pressure_16_signed_10_mbar: 733.9 mbar
                    O2 sens. 1 bank 1 upstrm oxi cat: raw value: 0.799 counts

Readiness: N/A

-------------------------------------------------------------------------------
Address 02: Auto Trans (J743)       Labels:. 0BH-927-711.clb
   Part No SW: 0BT 300 011 S    HW: 0BH 927 711 G
   Component: DSG DQ500-7A  H11 5204
   Revision: 00H11V01    CVN: 7EA862C0
   Coding: 0014
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_TCMDQ500021 001001
   ROD: EV_TCMDQ500021.rod
   VCID: 3E253A5850F502EABDB-806A

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels: 7E0-907-37x-MK100ESC.clb
   Part No SW: 7E0 907 379 Q    HW: 7E0 907 379 N
   Component: ESC           H05 0132
   Revision: 00000000    Serial number: 63165000000224
   Coding: 517E8098256A84848A78017BA48821A678F700
   Shop #: WSC 02739 790 50316
   ASAM Dataset: EV_Brake1ESCCONTIVN75XGP2 011001
   ROD: EV_Brake1ESCCONTIVN75XGP2_011.rod
   VCID: 40D944A02A01741ACF7-8014

No fault code found.

-------------------------------------------------------------------------------
Address 04: Steering Angle (G085)       Labels:* 6R0-959-654.clb
   Part No SW: 6R0 959 654     HW: 6R0 959 654
   Component: LENKW.SENSOR  H07 0070
   Serial number: 28111513470336
   Coding: 01
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_LWSKLOVW25X 005001
   ROD: EV_LWSKLOVW25X.rod
   VCID: 7EA5FA581075C2EAFDB-802A

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J301)       Labels:| 7E5-907-047.clb
   Part No SW: 7E0 907 047 AF    HW: 7E0 907 047 AF
   Component: Climatic-T5   H22 0708
   Revision: 00001002
   Coding: 0000000003
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_ClimaticT5 A01003
   ROD: EV_ClimaT5Basis_VN75.rod
   VCID: 6E85CA184015B26A6DB-803A

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 7E0-937-BCM-V1.clb
   Part No SW: 7E0 937 090     HW: 7E0 937 090
   Component: BCM PQ25 Max4 H80 0736
   Revision: B9080001    Serial number: 0771 351150414
   Coding: 62A0303A0A2120B3002809742D2B8CD49FB4708F60464D60320400220840
   Shop #: WSC 50300 001 104857
   VCID: 6889BC0062716C5A277-803C

   Subsystem 1 - Part No SW: 7E0 959 801 H    HW: 7E0 959 801 H  Labels: 7E0-959-80X-V2.CLB
   Component: J386__TSG_FT  003 8654
   Serial number: KU0KU008121553425626
   Coding: 0400A0

   Subsystem 2 - Part No SW: 7E0 959 802 H    HW: 7E0 959 802 H  Labels: 7E0-959-80X-V2.CLB
   Component: J387__TSG_BT  003 8654
   Serial number: KU0KU008121553421237
   Coding: 1400A0

   Subsystem 3 - Part No SW: 7E0 959 442 A    HW: 7E0 959 442 A  Labels: 3C8-959-537.CLB
   Component: E221__MFL-DC1  H02 0103
   Serial number: 29150002404580125486
   Coding: B4FFFF

2 Faults Found:
00978 - Lamp for Low Beam; Left (M29)
            010 - Open or Short to Plus - Intermittent
             Freeze Frame:
                    Fault Status: 00101010
                    Fault Priority: 3
                    Fault Frequency: 32
                    Reset counter: 72
                    Mileage: 212616 km
                    Time Indication: 0
                    Date: 2019.11.28.
                    Time: 12:38:05

00979 - Lamp for Low Beam; Right (M31)
            010 - Open or Short to Plus - Intermittent
             Freeze Frame:
                    Fault Status: 00101010
                    Fault Priority: 3
                    Fault Frequency: 3
                    Reset counter: 72
                    Mileage: 212616 km
                    Time Indication: 0
                    Date: 2019.11.28.
                    Time: 12:38:05


-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428)       Labels:| 7N0-907-572.clb
   Part No SW: 7N0 907 572 A    HW: 7E0 907 572
   Component: ACC Bosch PQx H03 0110
   Serial number: 21121577112711 Dataset Number: 7E0114v____ 0009
   Coding: 00005800FE0779
   Shop #: WSC 01383 790 50316
   ASAM Dataset: EV_ACCBEGVW361 001004
   ROD: EV_ACCBEGVW361.rod
   VCID: 343118706EB9D8BA5BF-8060

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags (J234)       Labels:| 5K0-959-655.clb
   Part No SW: 7E0 959 655 E    HW: 7E0 959 655 E
   Component: VW10Airbag00A 008 0016
   Revision: --------    Serial number: 003PJ0010WVP Dataset Number: 7E0003V____ 0743
   Coding: 000000000000000000000000000000003041
   Shop #: WSC 02734 790 50316
   ASAM Dataset: EV_AirbaVW10BPAVW12X 001028
   ROD: EV_AirbaVW10BPAVN750.rod
   VCID: 38292C4072D13CDA777-806C

   Crash sensor for side airbag: driver side:
   Serial number: 3495ZRB405V3K8QGFPMB

   Crash sensor for side airbag: passenger side:
   Serial number: 3505ZRB405T3K8QG1P08

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 7E0 920 870 L    HW: 7E0 920 870 L
   Component: KOMBI         H05 1008
   Serial number: 00000000000000
   Coding: 160B010300
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A05730
   ROD: EV_Kombi_UDS_VDD_RM09_005_VW32.rod
   VCID: 323D1E6894ADD68A493-8066

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat (J364)       Labels:| 7E0-963-27X-18.clb
   Part No SW: 7E0 963 272 A    HW: 7E0 963 272 A
   Component: STH-T5GP2     002 0007
   Coding: 5C01
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AuxilParkiHeateWOST5G2 001010
   ROD: EV_AuxilParkiHeateWOST5G2.rod
   VCID: 2A0D0608BC7D9E4AF13-807E

   Auxiliary heating remote control:
   Subsystem 1 - Part No SW: 5Q0 963 513 A    HW: 5Q0 963 513 A
   Component: R149 T91-LIN  003 0301
   Serial number: 00000000000001261233

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7E0-909-901.clb
   Part No SW: 7E0 909 901     HW: 7E0 937 090
   Component: GW-K-CAN TP20 H80 0736
   Revision: B9080001
   Coding: 042205
   Shop #: WSC 50300 001 104857
   VCID: 6889BC0062716C5A277-803C

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD (J492)       Labels:| 0CQ-907-554-V1.clb
   Part No SW: 0AY 907 554 L    HW: 0CQ 525 130 A
   Component: Haldex4Motion H53 7620
   Serial number: HA1-00003.11.15 Dataset Number: v1260x015G0 0000
   Coding: 0501
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_AllWheelContrHA1VW37X 002015
   ROD: EV_AllWheelContrHA1VW37X_002_VW36.rod
   VCID: 54F178F0CE79F8BA7BF-8000

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H05 1008
   Serial number:
   Coding: 000000
   Shop #: WSC 00000 000 00000
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09_VW32.rod
   VCID: 6A8DC6087CFD5E4A313-803E

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794)       Labels:| 5G0-035-MIB-ENT2.clb
   Part No SW: 1K8 035 150 E    HW: 1K8 035 150 E
   Component: MU-E-D-ER     857 6495
   Serial number: 06111500010057 Dataset Number: 5K7CV1v____ 0001
   Coding: 065700003C00000041111101008000001F0000840000010000
   Shop #: WSC 02737 790 50316
   ASAM Dataset: EV_MUEnt4CGen2LGE 001025
   ROD: EV_MUEnt4CGen2LGE_VW32.rod
   VCID: 270BFF3CAF6FA322EED-8072

No fault code found.

-------------------------------------------------------------------------------
Address 61: Battery Regul. (J840)       Labels:. 1K0-907-534.clb
   Part No SW: 7E0 907 534     HW: 7E0 937 090
   Component: Batt.regelung H80 0736
   Serial number: 0771 351150414
   Coding: 330B1A73
   Shop #: WSC 02739 790 00000
   VCID: 6889BC0062716C5A277-803C

   Subsystem 1 - Part No SW: 7E0 915 181 G    HW: 7E0 915 181 G
   Component: J367-BDM  H08 0223
   Serial number: 52334N37031260561571

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 H    HW: 1K0 907 383 G
   Component: Anhaenger     H12 0130
   Revision: 3B001001    Serial number: 00000388054637
   Coding: 410D000103000000
   Shop #: WSC 02739 790 00000
   VCID: 323D1E68942DD68A493-8066

No fault code found.

-------------------------------------------------------------------------------
Address 6E: Ctrl Head Roof (J702)       Labels:. 7E5-919-037-W2.clb
   Part No SW: 7E5 919 037 G    HW: 7E5 919 037 G
   Component: Dachdisplay   H15 0185
   Revision: 10100011    Serial number: 411451
   Coding: 000103
   Shop #: WSC 02759 790 00000
   VCID: 353725746543C1B26C1-8060

No fault code found.

End----------(Elapsed Time: 01:31, VBatt start/end: 14.3V/14.2V)-----------
------------------------------4 Faults Found-------------------------------

mmi · 7 Jul 2025

John-K said:
her are from engine not running

Quite different now - although an interesting moment at 20-40 seconds.
Doing negative values side of EGR valve - this would direct gas into EGR cooler

John-K said:
And here is with engine running

EGR valve perfectly following commanded.
Doing positive values side of EGR valve - EGR cooler bypassed

You didn't mention that anything has been done with DPF?
Seems to be normal now

Egr problem

New Member

Senior Member

T32 204 DSG LWB SLN PV MY18 & T30 SWB KMB MY67

New Member

T32 204 DSG LWB SLN PV MY18 & T30 SWB KMB MY67

New Member

T32 204 DSG LWB SLN PV MY18 & T30 SWB KMB MY67

T32 204 DSG LWB SLN PV MY18 & T30 SWB KMB MY67

Senior Expert

New Member

Attachments

Senior Expert

New Member

Attachments

Senior Expert

T32 204 DSG LWB SLN PV MY18 & T30 SWB KMB MY67

New Member

Senior Expert

New Member

Attachments

New Member

Attachments

New Member

Senior Expert

Similar threads
